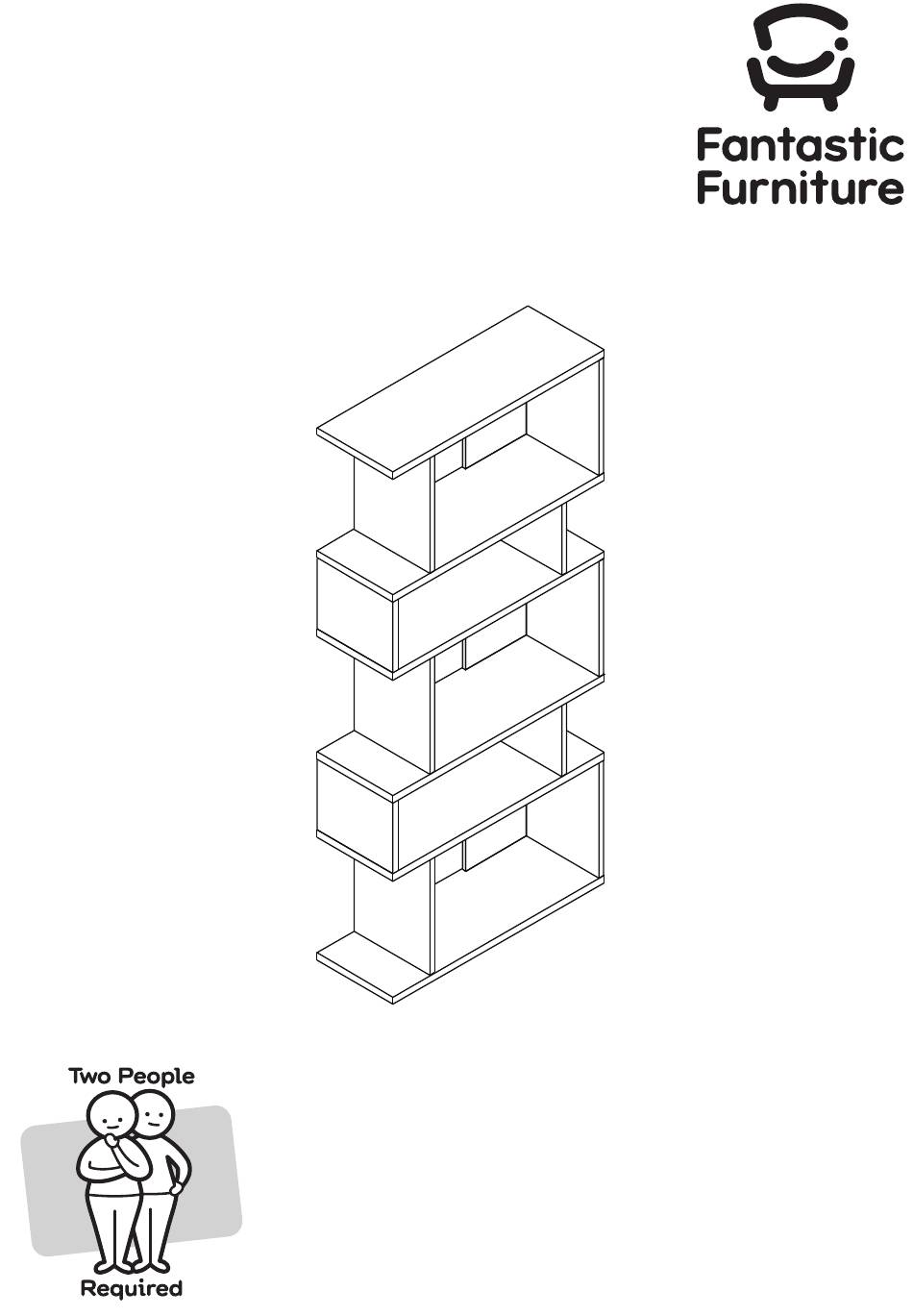

  • Page 1 Version 1.0 Aspect Bookcase fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product Top Panel (P1) Large Side Panel Other tools you need: (P5) Phillips head screwdriver; Hammer Shelf Panel 1 Large Back Panel Large Side (P7) (P2) Panel Small Side Panel (P5) (P6) Small Back Panel (P8) Shelf Panel 2...
  • Page 5 Step 1 You will need 60 x Dowels Hammer (H4) (P5) (P6) (P7) (P8) (H4) Insert 60 x Dowels (H4) into all Large & Small Side Panels (P5x6 & P6x4), all Large & Small Back Panels (P7x3 & P8x2) as shown. Use the Hammer to gently tap the Dowels into place if need be.
  • Page 6 Step 3 You will need (H3) 4 x Cam Nuts Phillips Head (P1) (H3) Screwdriver (H3) (P5) This is how a cam nut works..The head of the cam bolt goes into the (H3) open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 7 Step 5 You will need (P5) (P1) 4 x Cam Nuts Phillips Head (H3) Screwdriver (H3) (P7) (P6) (P2) This is how a cam nut works..(H3) (P5) The head of the cam (H3) bolt goes into the open mouth of the cam nut.
  • Page 8 Step 7 You will need (P5) (P1) (P8) 4 x Cam Nuts Phillips Head (P7) (H3) Screwdriver (P2) (H3) This is how a cam nut works..(P5) (P3) (P6) The head of the cam (H3) bolt goes into the (P5) open mouth of the cam nut.
  • Page 9 Step 9 You will need (P1) (P5) (P8) 4 x Cam Nuts Phillips Head (P7) (H3) Screwdriver (P2) (P5) (P3) (P5) (P6) This is how a cam nut works..(H3) (P7) The head of the cam bolt goes into the (P6) (P2) open mouth of the...
  • Page 10 Step 11 You will need (P1) (P5) (P8) 4 x Cam Nuts Phillips Head (P7) (P2) (H3) Screwdriver (P5) (P5) (P3) (P6) (P8) This is how a cam nut works..(P7) (P2) The head of the cam bolt goes into the (H3) open mouth of the (P5)
  • Page 11 Step 13 You will need (H8) (P5) (P1) (P8) 20 x 8 x Plastic (P7) Stickers Leg Studs Hammer (P2) (H9) (H8) (P3) (P5) (P5) (P8) (P7) (P2) (P4) (P5) (P5) (P3) (H9) (P7) (P4) 10MM (P5) Attach 8 x Plastic Leg Studs (H9) to Base Panel (P4) using the Hammer, approx 10mm from the edge and spaced evenly as shown.

  • Page 12: Job Complete

    Step 15 (P1) Screw and Wall Plug Please use appropriate Wall (P1) trades person on how to attach this safety strap to Move the furniture to its final position, then connect the end of the Wall Strap (H5) to the wall, ensuring it is firmly attached. Job complete! In the interest of our environment please dispose of all packaging thoughtfully.
