Version 1.0
ARDMORE

Advertisement

loading

Related Manuals for fantastic furniture ARDMORE Office Chair

Summary of Contents for fantastic furniture ARDMORE Office Chair

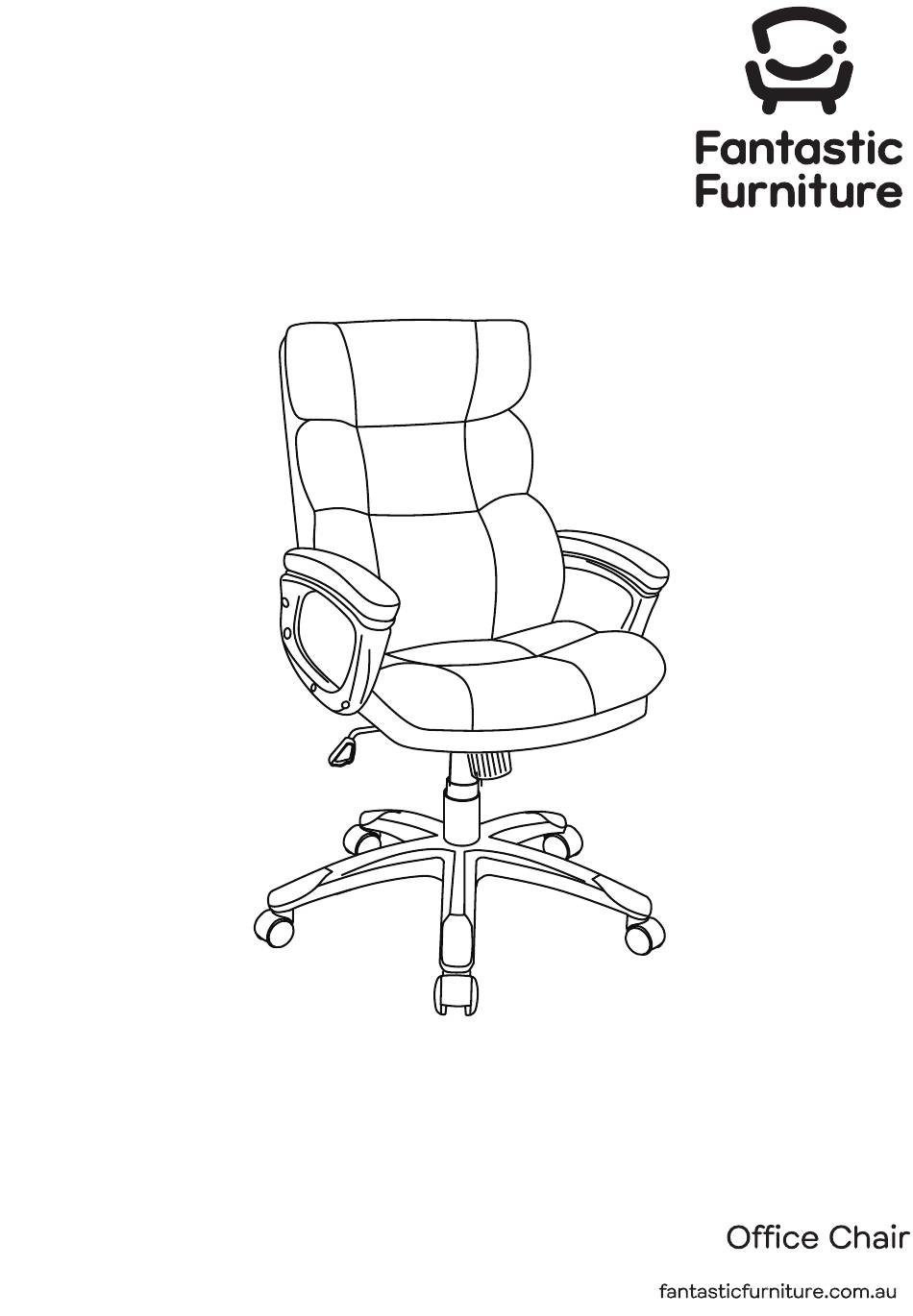

  • Page 1 Version 1.0 ARDMORE...
  • Page 2 Recommended weight capacity: 120kg Looks like you’ve found your Fantastic! We’re thrilled you’ve chosen Fantastic Furniture to hdlp create a home you’ll love! Love it ?Share it! Fantas tic buy!Share how it looks at home on Instagram for your chance to win a...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product Backrest(P1) DO NOT USE Part list Left Arm(P2) Backrest(P1)X1; Left Arm(P2)X1; Right Arm(P3)X1; Seat(P4) Seat(P4)X1; Seat Plate(P5)X1; Gas Lift Cover(P6)X1; Gas Lift(P7)X1 ; Star Base(P8)X1; Seat Plate(P5) Castor(P9)X5 Gas Lift Cover(P6) Gas Lift(P7) Star Base(P8) Castor(P9) 8xSmall Bolts...
  • Page 5 Step 1 Gas Lift Cover(P6) Gas Lift(P7) Star Base(P8) Castor(P9) Insert 5xCastors(P9)into the Star Base(P8) as shown.Push down firmly on each castor to ensure they are fixed in position. Insert the Gas Lift(P7) into the top of Star Base(P8). Place the Gas Lift Cover(P6)over the top of the Gas Lift(P7)as shown.
  • Page 6 Step 3 Seat(P4) Seat Plate(P5) Gas Lift(P7) Position the centre hole of the Seat Plate(P5) over the top of Gas Lift(P7). Carefully lower the Seat(P4) onto the Gas Lift(P7).Press seat down firmly. Check the connection is secure before sitting in the chair. Step 4 You will need Left Arm(P2)
  • Page 7 Step 5 (H4) (H1) Left Arm(P2) You will need Backrest(P1) (H1) 2XSmall Allen Key (H4) Bolts(H1) Seat(P4) Lay Backrest (P1) face down on top of the Seat (P4) as shown. Attach Backrest (P1) to Left & Right Arms (P2&P3) with 2 x Small Bolts (H1) by tightening with the Allen Key (H4).Do not fully tighten the bolts. Step 6 Backrest(P1) (H4)

  • Page 8: Job Complete

    Step 7 (H3) You will need (H3) (H3) (H3) (H3) (H3) 8XPlastic (H3) Covers(H3) (H3) Insert 8 x Plastic Covers (H3) into the Left & Right Arms (P2&P3) as shown to seal the bolt holes. Press on each plastic cover firmly to secure into place. Job Complete!
