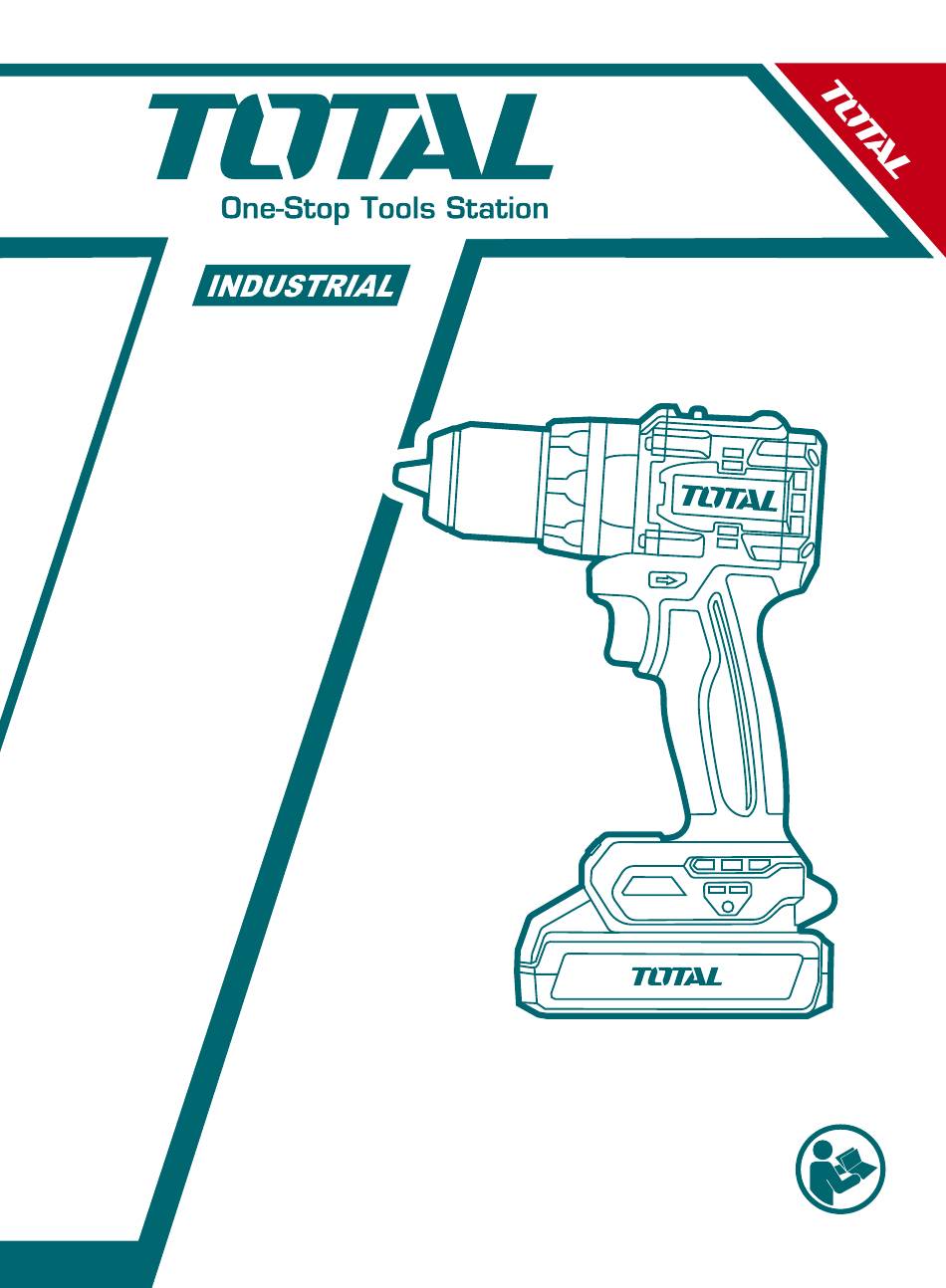

- Page 1 PRODUCT MANUAL COMPACT BRUSHLESS CORDLESS IMPACT DRILL TIDLI20668 TIDLI20668xy UTIDLI20668 UTIDLI20668xy TIDLI2066xy UTIDLI2066xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION! Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).
- Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 11: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Battery drill safety warnings Safety instructions for all operations Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring or. -
Page 12: Intended Use
| English manufacturer before operating this power tool. INTENDED USE The impact drill is designed for drilling, screwdriving and percussion drilling applications. SPECIFICATIONS Components 1. Reversing switch lever 5. Chuck 2. Brushless motor 6. Adjusting torque ring 3. Switch 7. Speed change lever 4. -
Page 13: Technical Specifications
| English Technical specifications TIDLI20668 UTIDLI20668 Model No. TIDLI20668xy UTIDLI20668xy TIDLI2066xy UTIDLI2066xy Voltage Mechanical speed settings No-load variable speed 0-500/0-2000/min 0-500/0-2000/min Impact rate 30000/min 30000/min Torque settings 22+1+1 22+1+1 Max torque force 66Nm 66Nm Keyless chuck capacity 13mm 1/2˝ Model No. NOTE: x (blank, 1,2,3,4,5,6,7,8,9,E,S,A,M); y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M) •... - Page 14 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity TFBLI2001 2.0Ah TFBLI2001xy TFBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah TFBLI2002xy TFBLI2053 5.0Ah TFBLI2053xy Model No.
- Page 15 | English OPERATION PICTURE...
- Page 16 | English OPERATION PICTURE...
-
Page 17: Function Description
| English FUNCTION DESCRIPTION ⚠ CAUTION! Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool Electrical safety Installing or removing battery cartridge (see Figure A) Figure A: 1. Button 2. -
Page 18: Electric Brake
| English Indicator lamps Remaining capacity Lighted • >80% • 30% to 80% • <30% NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. Switch action (see Figure C) Figure C: 1. - Page 19 | English NOTE: Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. Reversing switch action (see Figure E) Figure E: 1. Reversing switch lever ⚠...
- Page 20 | English the operation with "2", slide the lever to the "1" and restart the operation. Selecting the action mode (see Figure G) Figure G: 1. Action mode changing ring 2. Adjusting ring 3. Graduation 4. Arrow This tool has three action modes. •...
-
Page 21: Operation
| English OPERATION ⚠ CAUTION! Always insert the battery cartridge all the way until it locks in place. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. - Page 22 | English Drilling operation First, turn the adjusting ring so that the pointer points to the marking. Then proceed as follows. Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the drill bit into the workpiece.
- Page 23 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 24 TOTAL TOOLS WORLD MADE IN CHINA T0924.V02 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China SCAN FOR VIDEO...
