Summary of Contents for Total TIDLI200215

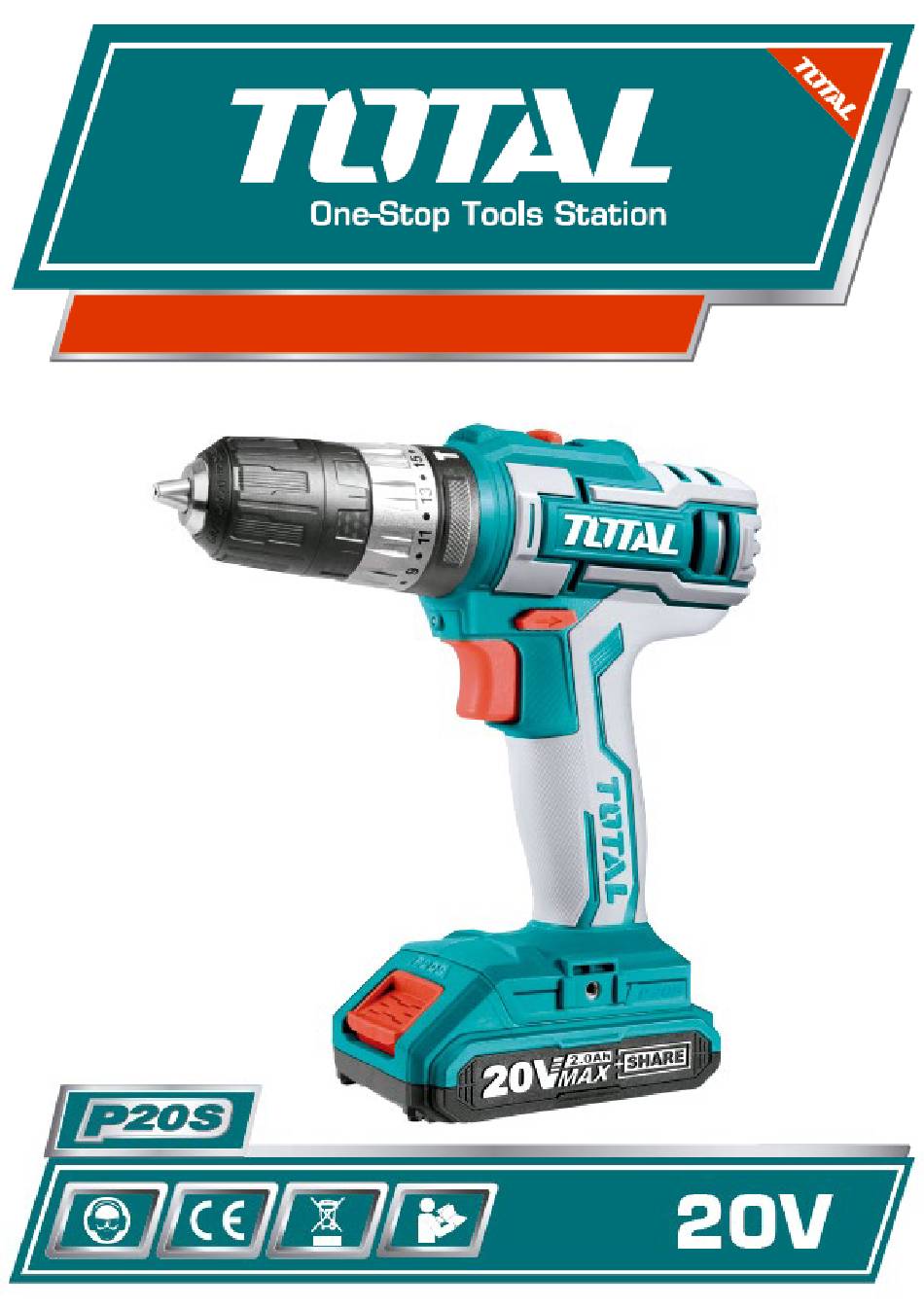

- Page 1 BATTERY HAMMER DRILL TIDLI200215...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electrical shock, fire, and/or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 4) Use and care of the battery tool a. Recharge the battery only with the charger specified by the manufacturer. An unsuitable charger can create a fire hazard. b. Use power tools only with specifically designated batteries. Use of other batteries may create a risk of injury or fire.
-
Page 4: Additional Security Warnings
Safety rules for correct use Double insulation for additional protection Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. -
Page 5: Other Risks
Other risks Even when the power tool is used as prescribed, it is not possible to eliminate all residual risk factors: a. Health defects resulting from vibration emission if the power tool is used for a longer period of time or if it is not managed and maintained properly. b. -
Page 6: Other Warnings
Other warnings Save these instructions Attention Do not let comfort or familiarity with the product (gained from repeated use) replace strict adherence to safety rules for the product in question. Incorrect use or non-compliance with the safety rules indicated in this instruction manual can cause serious personal injury. -
Page 7: Product Description
Tips for maintaining maximum battery life 1. Charge the battery cartridge before it is fully discharged. Always stop tool operation and charge the battery cartridge when you notice less power from the tool. 2. Never recharge a fully charged battery. Overcharging shortens battery life. 3. - Page 8 Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Remaining battery capacity indication 1. Indicator lights two.check button Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lights come on for a few seconds.
- Page 9 "OFF" position when released. electric brake This tool is equipped with an electric brake. If the tool does not stop quickly after releasing the switch trigger, have the tool repaired at a TOTAL service center. Illuminating the front light 1. light •...
- Page 10 When the direction change switch lever is in the neutral position, the switch • trigger cannot be pulled. Attention Always check the direction of rotation before operation. Use the reverse switch only after the tool has come to a complete stop. Changing the direction of rotation before the tool stops can damage the tool.
- Page 11 When you change the position of " " to other modes, it may be a little different. In this case, turn on and run the tool for a second in the position " ", then stop the tool and slide the thread to the desired position.
- Page 12 The tightening torque can be adjusted in 18 steps by turning the adjusting ring. You can get the minimum tightening torque at 1 and the maximum torque at 18. • Align the graduations with the arrow on the tool body. •...
- Page 13 Keep one hand on the grip and the other hand on the bottom of the battery cartridge to control the twisting action. Screwing operation Caution Set the adjusting thread to the proper torque level for your job. Make sure the bit is inserted straight into the screw head, or the screw and/or bit may be damaged.
- Page 14 Drilling operation First, turn the adjusting screw so that the pointer points to the mark . Then proceed as follows. Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw facilitates drilling by driving the bit into the workpiece. Metal drilling To prevent the bit from slipping when starting a hole, make a notch with a punch and hammer at the point to be drilled.
-
Page 15: Exploded View
Exploded view... - Page 16 BATTERY HAMMER DRILL...
