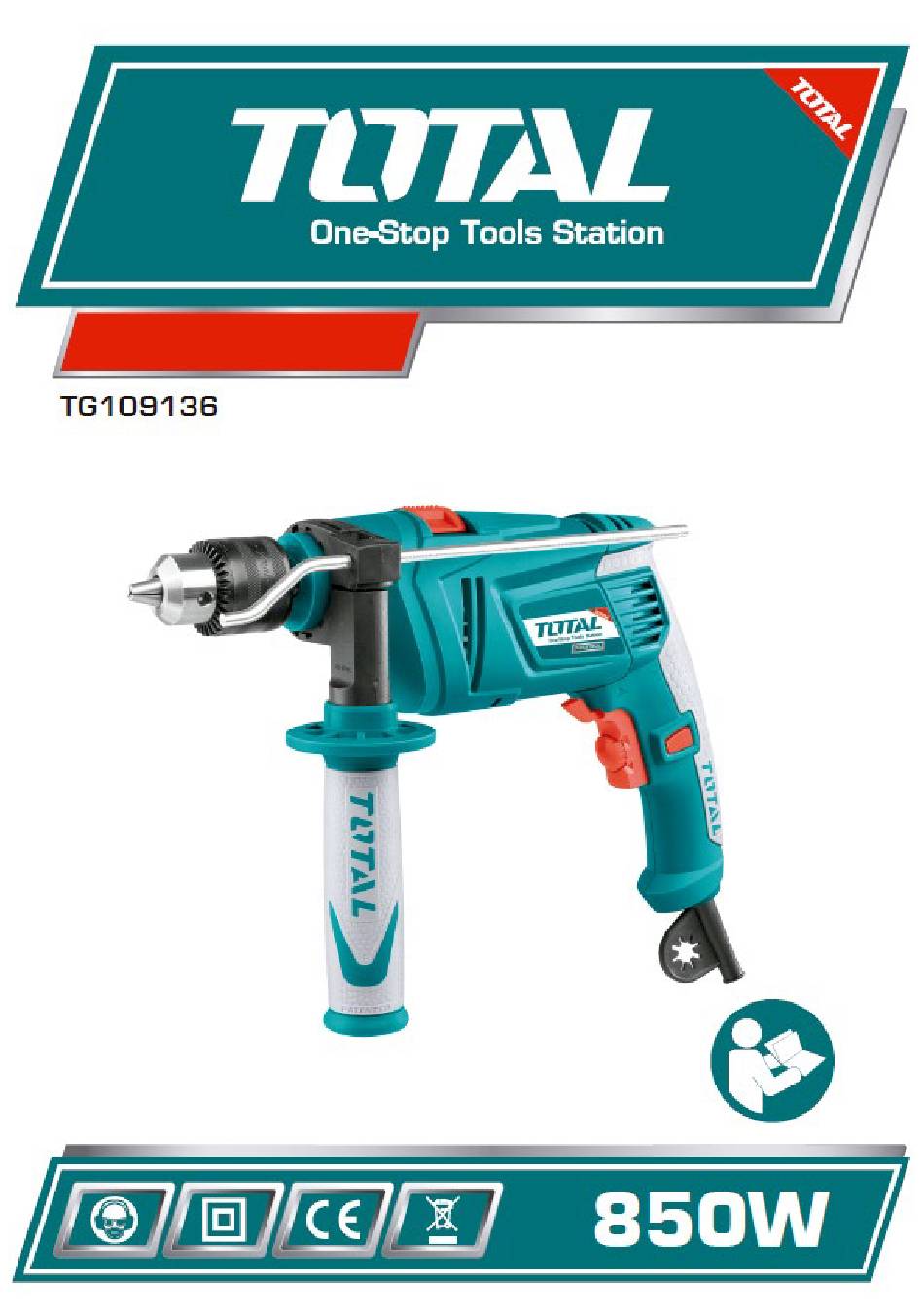

- Page 1 HAMMER DRILL...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Note: Save all warnings and instructions for future reference. 1) Work area safety a. Keep the work area clean and well lit to prevent accidents. b. - Page 3 4) Use and care of power tools a. Do not force the tool. Use the correct power tool for each use. b. Do not use the power tool if its power switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 4: Additional Security Warnings
Safety rules for correct use Double insulation for additional protection Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. -
Page 5: Other Risks
Other risks Even when the power tool is used as prescribed, it is not possible to eliminate all residual risk factors: a. Health defects resulting from vibration emission if the power tool is used for a longer period of time or if it is not managed and maintained properly. b. -
Page 6: Product Description
Product description 1. Depth stop 6. Cable sleeve 2. Drill chuck 7. On/off switch 3. Locking screw for depth stop 8. Variable speed control 4. Drill/Impact Action Selector 9. Forward/reverse selector switch Switch 10. Auxiliary handle 5. Switch lock button Note: Not all accessories illustrated or described may not be included in the standard delivery. - Page 7 If you are left-handed, adjust the handle backwards • Auxiliary Install depth gauge (Imag. 2) The depth stop can be used as a stop to make holes with a specific measurement. To set the depth gauge: Misalign auxiliary handle • •...
- Page 8 Ignition switch (Imag. 4) Press the switch to turn on your drill, if you want to keep it on continuously secure it with the side button. To unlock it just press the switch. Variable speed selector (Imag. 5) This selector allows you to keep the speed constant: Turn control knob clockwise to maintain high speed •...
- Page 9 forward reverse rotation rotation hammer selector (Fig. 7) When drilling in wood or metal select and when for drilling. Suggestions Masonry and concrete drilling Set the drill/impact action selector switch to the "hammer symbol" position • Note: Tungsten carbide bits should always be used for drilling masonry, concrete, etc. with a high speed.
-
Page 10: Maintenance
If the bit is not cutting properly, check that it is sharp, or replace it. Also check the direction of rotation of your drill. • If after checking these recommendations it does not work, take it to the Total authorized service center. Environment •... -
Page 11: Exploded View
Exploded view... - Page 12 HAMMER DRILL...
