Summary of Contents for Total TIDLI201452 Series

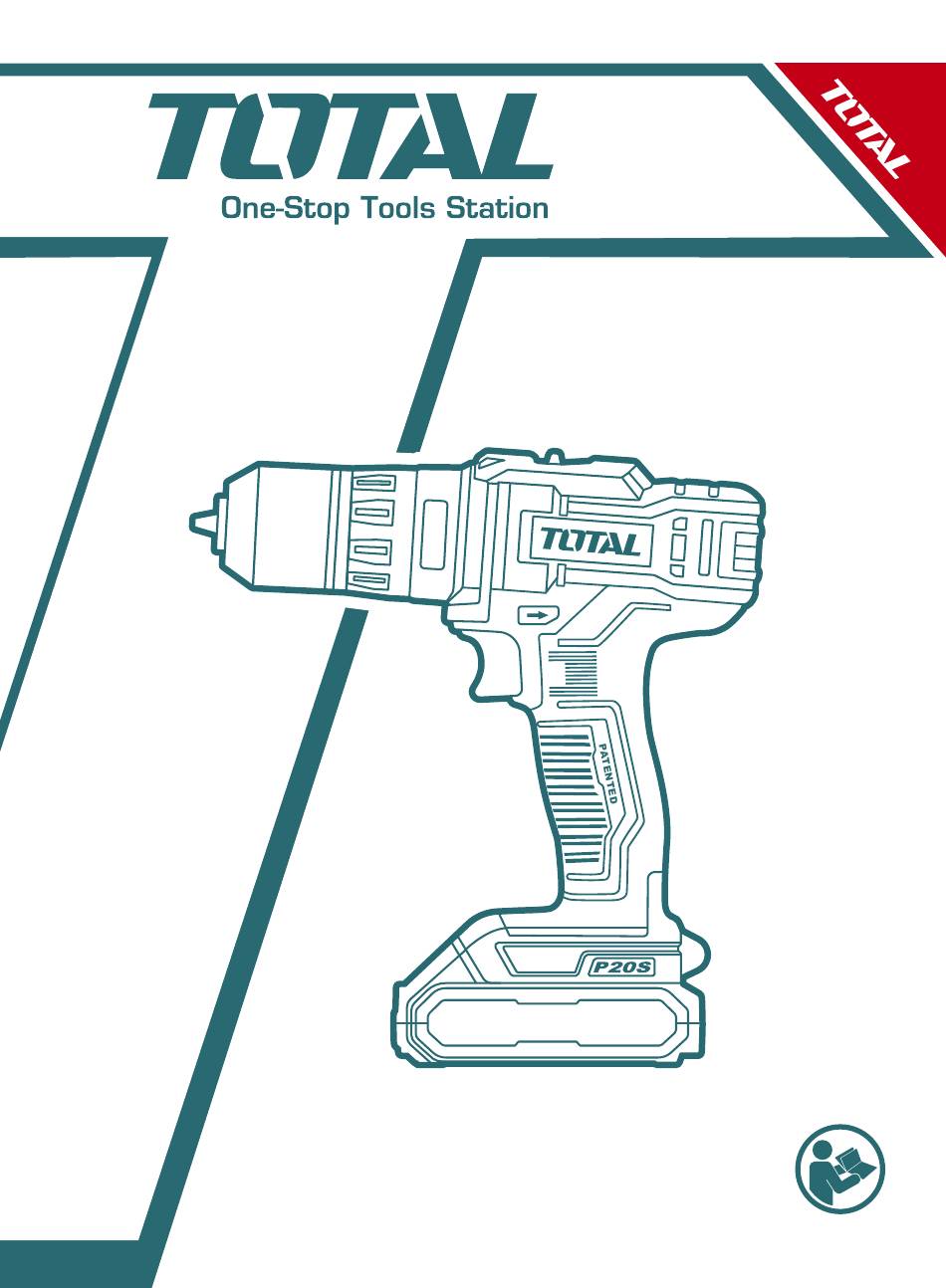

- Page 1 PRODUCT MANUAL LITHIUM-ION IMPACT DRILL TIDLI201452 UTIDLI201452 TIDLI201452xy UTIDLI201452xy TIDLI20145xy UTIDLI20145xy x(blank, 1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank, -1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
- Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 11: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Drill safety warnings Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. -
Page 12: Specifications
| English SPECIFICATIONS 1. Adjusting torque ring 5. Speed change lever 2. Chuck 6. Motor 3. Lamp 7. Reversing switch lever 4. Switch Symbols The followings show the symbols used for tool. volts direct current .../min revolutions or reciprocation per minute r/min... -
Page 13: Technical Specifications
| English Technical specifications UTIDLI201452 TIDLI201452 UTIDLI201452xy TIDLI201452xy TIDLI20145xy UTIDLI20145xy (X=Blank,1,2,3,4,5,6,7,8,9,E,S,A Model No. (X=Blank,1,2,3,4,5,6,7,8,9,E, S,A,M) (Y=Blank,-1,-2,-3,-4,-5,-6,-7,-8, (Y=Blank,-1,-2,-3,-4, -9,E,S,A,M) -5,-6,-7,-8,-9,E,S,A,M) Drill voltage Mechanical speed settings No-load variable 0-400/0-1500/min 0-400/0-1500/min speed Blows per minute 0-22500/min 0-22500/min Torque settings 18+1+1 18+1+1 Max torque force 45Nm 45Nm Keyless chuck... - Page 14 | English ⚠ Warning! Only use original battery pack and battery charger as below for this power tool: Product Battery pack TFBLI2001 Model No. TFBLI20015 TFBLI2001x TFBLI2030 TFBLI2002 TFBLI2001xy Output voltage: 20V MAX Output current: 1.5Ah 2.0Ah 3.0Ah 4.0Ah Product Battery pack Model No.
- Page 15 | English OPERATION PICTURE...
- Page 16 | English OPERATION PICTURE...
-
Page 17: Function Description
| English FUNCTION DESCRIPTION ⚠ Caution Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool Electrical safety Installing or removing battery cartridge (see Figure A) Dia A: 1. Button 2. -
Page 18: Electric Brake
| English Indicator lamps Remaining capacity Lighted >80% 30% to 80% <30% ⚠ Note Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. Switch action:(see Figure C) Dia C: 1. Switch trigger ⚠... - Page 19 | English ⚠ Note Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. Reversing switch action:(see Figure E) Dia E: 1. Reversing switch lever ⚠...
- Page 20 | English To change the speed, switch off the tool first. Select the "2" side for high speed or "1" for low speed but high torque. Be sure that the speed change lever is set to the correct position before operation. If the tool speed is coming down extremely during the operation with "2", slide the lever to the "1"...
-
Page 21: Operation
| English OPERATION ⚠ Caution Always insert the battery cartridge all the way until it locks in place. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. -
Page 22: Drilling Operation
| English drilling may be resumed. Drilling operation First, turn the adjusting ring so that the pointer points to the marking. Then proceed as follows. Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. - Page 23 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 24 TOTAL TOOLS WORLD MADE IN CHINA T0823.V03 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
