Getting started with the X-NUCLEO-DO41A1 industrial digital output expansion
Introduction
The
X-NUCLEO-DO41A1
is an industrial quad digital output expansion board for
flexible environment for the evaluation of the driving and diagnostic capabilities of the
power, solid-state relay in a digital output module connected industrial loads sinking ≤ 1 A.
The
X-NUCLEO-DO41A1
interfaces with the microcontroller on the
isolation between the industrial field and Arduino® UNO R3 connectors is guaranteed up to 2.8 kVrms by the digital isolators.
The expansion board can be connected to either a
You can also evaluate a system consisting of an
compatible in terms of logic signals assignments.
Notice:
For dedicated assistance, submit a request through our online support portal at www.st.com/support.
UM3412 - Rev 1 - October 2024
For further information contact your local STMicroelectronics sales office.
NUCLEO-F401RE
X-NUCLEO-DO41A1
Figure 1.

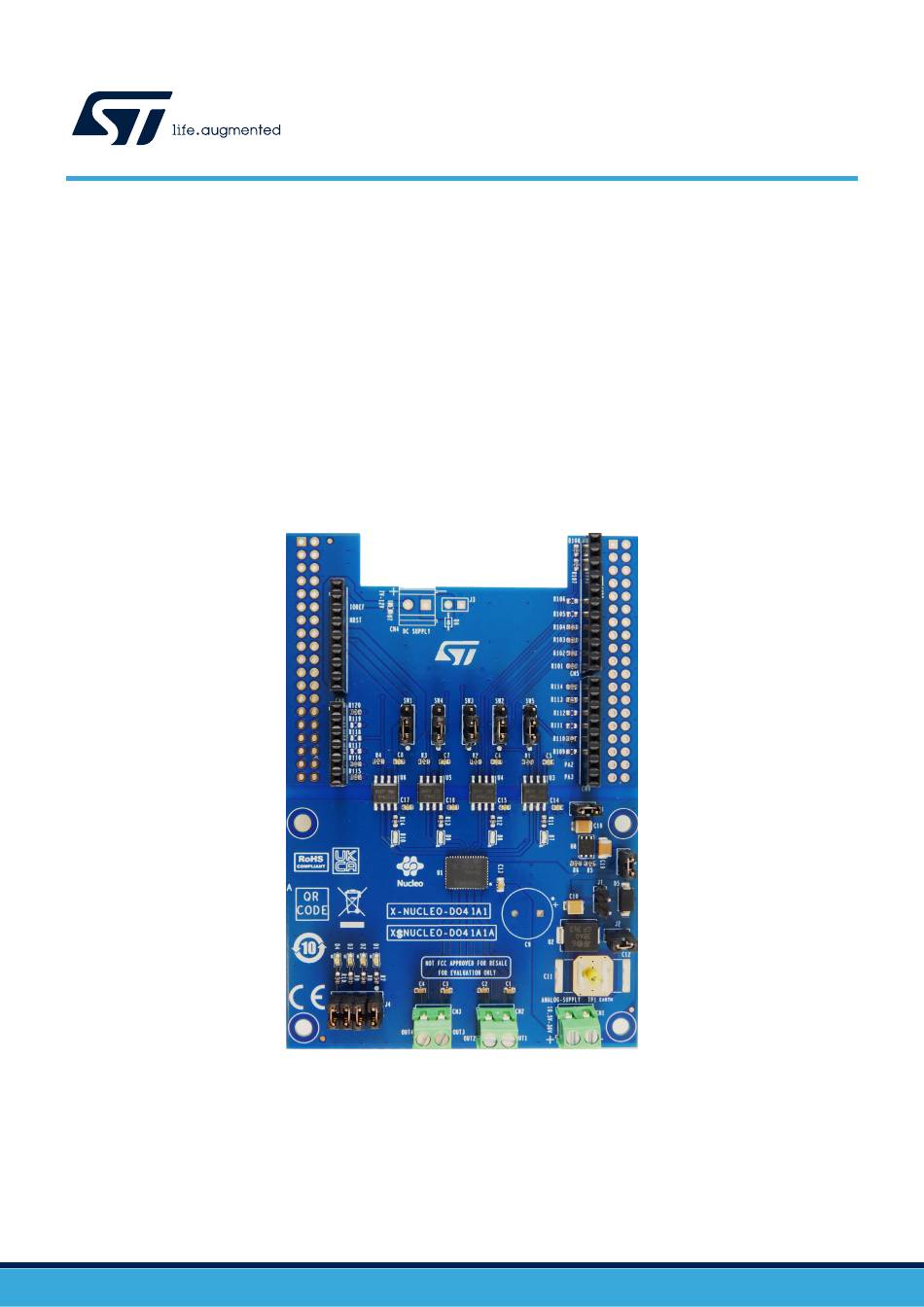

X-NUCLEO-DO41A1 expansion board
board for STM32 Nucleo
STM32
Nucleo. It provides a powerful and
IPS4140HQ-1
STM32 Nucleo
via
STISO621
or a
NUCLEO-G431RB
development board.
expansion board stacked on other expansion board
UM3412
User manual
quad high-side, smart
digital isolators. The galvanic
www.st.com
