- Page 1 Quick Start Guide Low-power high-performance 8x8 multizone Time- of-Flight sensor VL53L8CX expansion board for STM32 Nucleo May 2023...
- Page 2 Quick Start Guide Contents Hardware Overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...

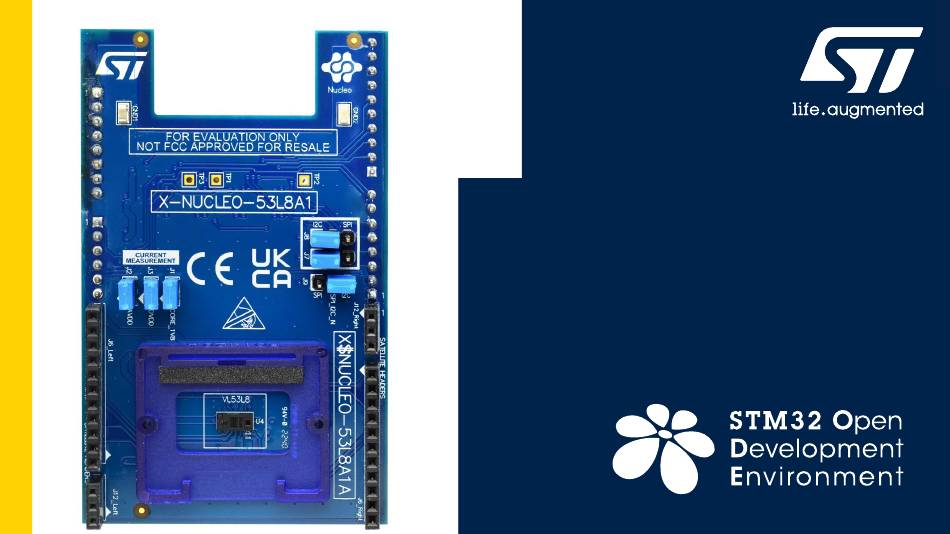

- Page 3 VL53L8CX - Low-power high-performance 8x8 multizone Time-of-Flight sensor Hardware Overview (1/2) X-NUCLEO-53L8A1 Hardware Description • The X-NUCLEO-53L8A1 is low-power high- performance 8x8 multizone Time-of-Flight sensor and development board designed around the VL53L8CX sensor based on ST FlightSense™ patented technology •...
- Page 4 • X-NUCLEO-53L8A1 is also available as a NUCLEO Pack (P-NUCLEO-53L8A1) • The X-NUCLEO-53L8A1 expansion board can also be ordered on www.st.com as part of a NUCLEO Pack with expansion board and STM32 NUCLEO board. • Order code: P-NUCLEO-53L8A1: X-NUCLEO-53L8A1 expansion board and NUCLEO-F401RE full features board.
- Page 5 Application • The X-CUBE-TOF1 software package is a STM32Cube expansion for the expansion boards of the Time-of- Flight product family (including the X-NUCLEO-53L8A1) for STM32. The source code is based on STM32Cube to ease portability and code sharing across different...
- Page 6 Quick Start Guide Contents Hardware Overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
- Page 7 • 1x Laptop/PC with Windows • 1x USB type A to Mini-B USB cable • If you don’t have an STM32 Nucleo development board, P-NUCLEO-53L8A1 you can order a Nucleo pack (P-NUCLEO-53L8A1): • X-NUCLEO-53L8A1 expansion board and NUCLEO-F401RE full features board delivered together.
- Page 8 Setup & Demo Examples SW prerequisites • STSW-IMG040: Ultra Lite Driver (ULD) for VL53L8CX • STSW-IMG041: Graphical User Interface (GUI) on Windows 7 and 10 • STSW-IMG042: Linux driver for VL53L8CX • X-CUBE-TOF1: Time-of-Flight sensors software expansion for STM32Cube. • When you install the X-CUBE-TOF1 the installer install also the directory containing the example projects here for instance : •...
- Page 9 If Windows cannot install automatically the STLINK driver, please follow step 2 2. Install the PC USB port driver to detect the Nucleo board • Download STSW-LINK009 from www.st.com • Unzip and double click on “stlink_winusb_install.bat” to install the driver...
- Page 10 VL53L8CX GUI software installation GUI is generally the first and easy tool to evaluate the device • Perform HW installation and connect the X-NUCLEO-53L8A1 expansion board + Nucleo F401RE to the PC • Install the GUI SW for VL53L8CX Demo and configuration settings •...
- Page 11 Setup & Demo Examples VL53L8CX GUI software installation...
- Page 12 • Perform HW installation and connect the NUCLEO kit ( P-NUCLEO-53L8A1) to the PC • Install the X-CUBE-TOF1 SW package • 3.0 or newer X-CUBE-TOF1 rev downloaded from www.st.com • The X-CUBE-TOF1 is installed through STM32CubeMx, manage software installation section. • Once the X-CUBE-TOF1 is installed. Go to •...
- Page 13 Evaluation code example (.bin) using X-CUBE-TOF1 and a NUCLEO Pack Follow the instructions from the UM3108 (Getting started with the STMicroelectronics X-CUBE-TOF1, Time-of-Flight sensors, software package for STM32CubeMX) that can be found on st.com Drag and Drop .bin files from the directory...
- Page 14 X-CUBE-TOF1 and a NUCLEO Pack Follow the instructions from the UM3108 (Getting started with the STMicroelectronics X-CUBE-TOF1, Time-of-Flight sensors, software package for STM32CubeMX) ) that can be found on st.com Open project example for Simple Ranging And modify, build application SW •...
- Page 15 Quick Start Guide Contents Hardware Overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
- Page 16 • Data Brief DB4921 : Time-of-Flight expansion board based on the VL53L8 series for STM32 Nucleo • User Manual UM3120 : Getting started with the X-NUCLEO-53L8A1 Time-of-Flight expansion board based on the VL53L8 series for STM32 Nucleo • X-NUCLEO-53L8A1 SCHEMATIC •...
- Page 17 Documents & Related Resources All documents are available in the Documentation tab of the related products webpage VL53L8CX: • Datasheet DS14161: Low-power high-performance 8x8 multizone Time-of-Flight sensor • Data Brief DB4884: Low-power high-performance 8x8 multizone Time-of-Flight sensor STSW-IMG036: • Data Brief DB4810: Ultra lite driver (ULD) application programming interface (API) for the VL53L7CX Time-of-Flight 8x8 multizone ranging sensor with 90° FoV STSW-IMG037: •...
- Page 18 Quick Start Guide Contents Hardware Overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
- Page 19 The STM32 Open Development Environment (ODE) is an open, flexible, easy and affordable way to develop innovative devices and applications based on the STM32 32-bit microcontroller family combined with other state-of-the-art ST components connected via expansion boards. It enables fast prototyping with leading-edge components that can quickly be transformed into final designs.
