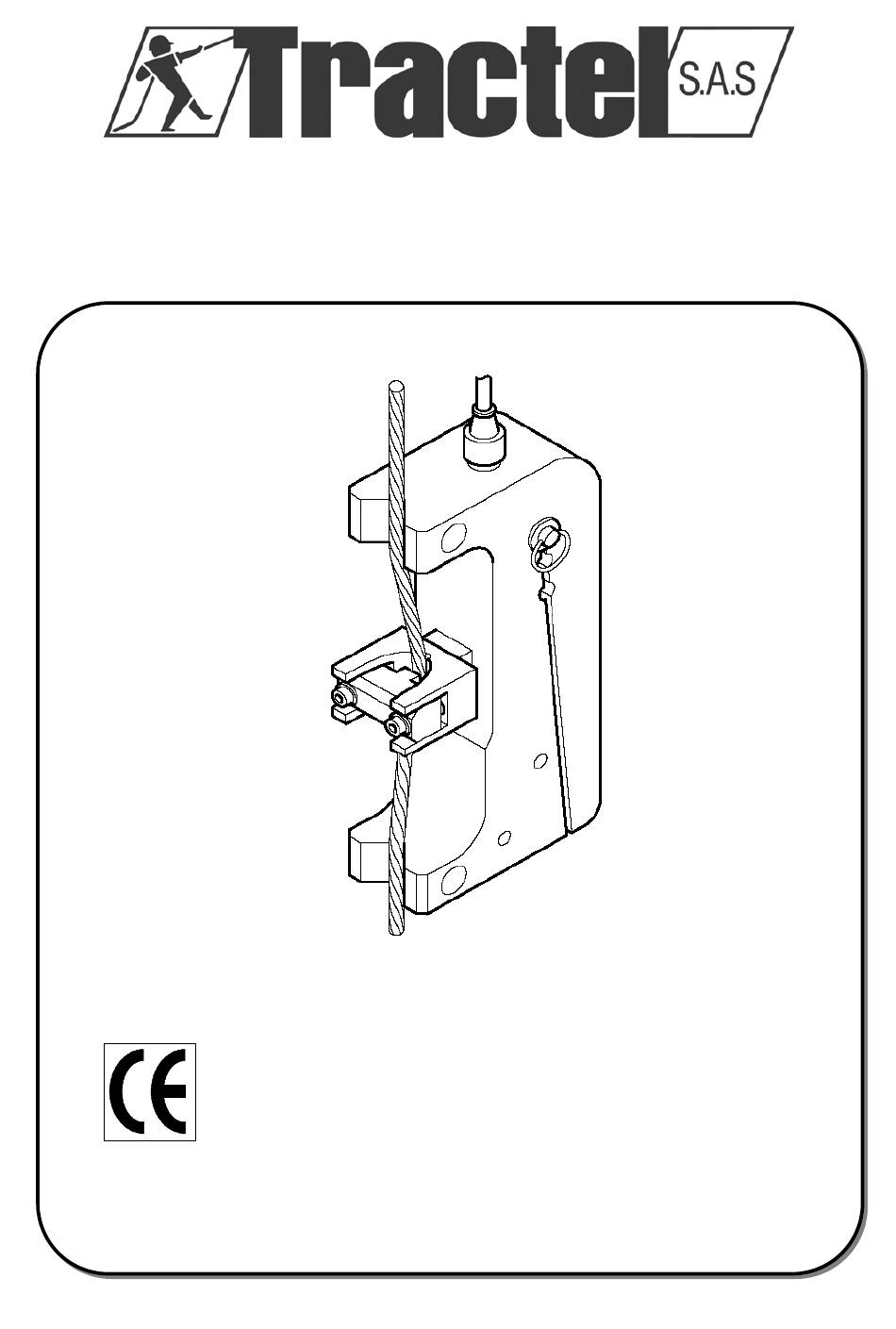

- Page 1 HF 32/3/A Universal load cell Including wiring for 2 trip points Operating equipment in maintenance accordance with CE directives manual MS 32/3/A R 03/03...
-
Page 2: General Warning
4- Never apply to the Dynasafe a load or an effort in excess of the working load limit, and never use it for an operation for which it is not intended. 5- TRACTEL S.A.S declines any responsibility for the consequences of dismantling or altering the machine by any unauthorized person. - Page 3 INSTALLATION OF HF 32/3/A LOAD CELL Fig. 1 Components of the load cell A- 2 m connecting cable F- Tare screw. K-Tightening bracket. B- Flat washer. G- Locking nut L-Rubber compression pad. C- Adjusting pin. H-Traction part. M-Wire rope. D- Locking ring.
- Page 4 INSTALLATION OF HF 32/3/A LOAD CELL Positioning the adjusting pin as a function of the effort in the wire rope For loads ranging from 1000kg to 4000kg. For loads ranging from 1000 kg to 8000kg. For loads ranging from 1000 kg to 12000 kg.
- Page 5 OPERATION AND ADJUSTMENT OF HF 32/3/A LOAD CELL Earth Brown) (Black) (Blue) Control Lifting voltage Alarm Contactor BROWN/BLUE = NC (Normally closed) BROWN/BLACK = NO (Normally open) Fig. 4 The switching power is 4A, 220 Vac (0.3A, 250 Vdc). ( It is therefore possible to connect in series in the upper limit switch circuit).
- Page 6 INSTALLATION OF HF 32 / . / A . TWO TRIP POINTS Components of the load cell A – Cable connection. B – Flat washer. C – Adjust pin. D – Locking ring E – Load cell body. F – Tare screw for trip point N° 1. G –...
- Page 7 NOTES : MS 32/3/A R 03/03...
