  • Page 1 "Panini-T" 1R - 1GR - 1G A150774 - A150776 - A150779...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 3.0 Date of preparation: 2025-03-03...
  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............
  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over.
  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Do not bend, pinch nor knot the power cord. • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. •...
  • Page 7 Safety • Operate the appliance and its components only in a technical condition that does not raise any objections, with functional protective and safety elements. • Prepare risk assessment at work positions. • Provide instruction and regular staff training. Pay special attention to and observe the section concerning safety and any safety hints.
  • Page 8: Intended Use

    Safety Improper use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used in a technically flawless condition, providing for safe use. • The appliance may only be used with connections in a technically flawless condition, providing for safe use.
  • Page 9: General Information

    General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets.
  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.
  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Version / Characteristics • Control: toggle, manual • Temperature control: thermostatic • ON/OFF switch • Indicator lights: ON/OFF, heating • Timer • Audible signal when the time expires (0 - 15 minutes) • Grease collection tray •...
  • Page 12 Technical Data Name: Contact grill "Panini-T" 1GR A150776 Art. No.: Material: stainless steel Grill plate material: cast iron, enamelled Number of grill units: Grill surface versions: ribbed at top, smooth at the bottom Temperature range min.–max., in °C: 50 - 300 Time setting, min.–max., in min.: 0 - 15 Power supply:...
  • Page 13: List Of Components Of The Appliance

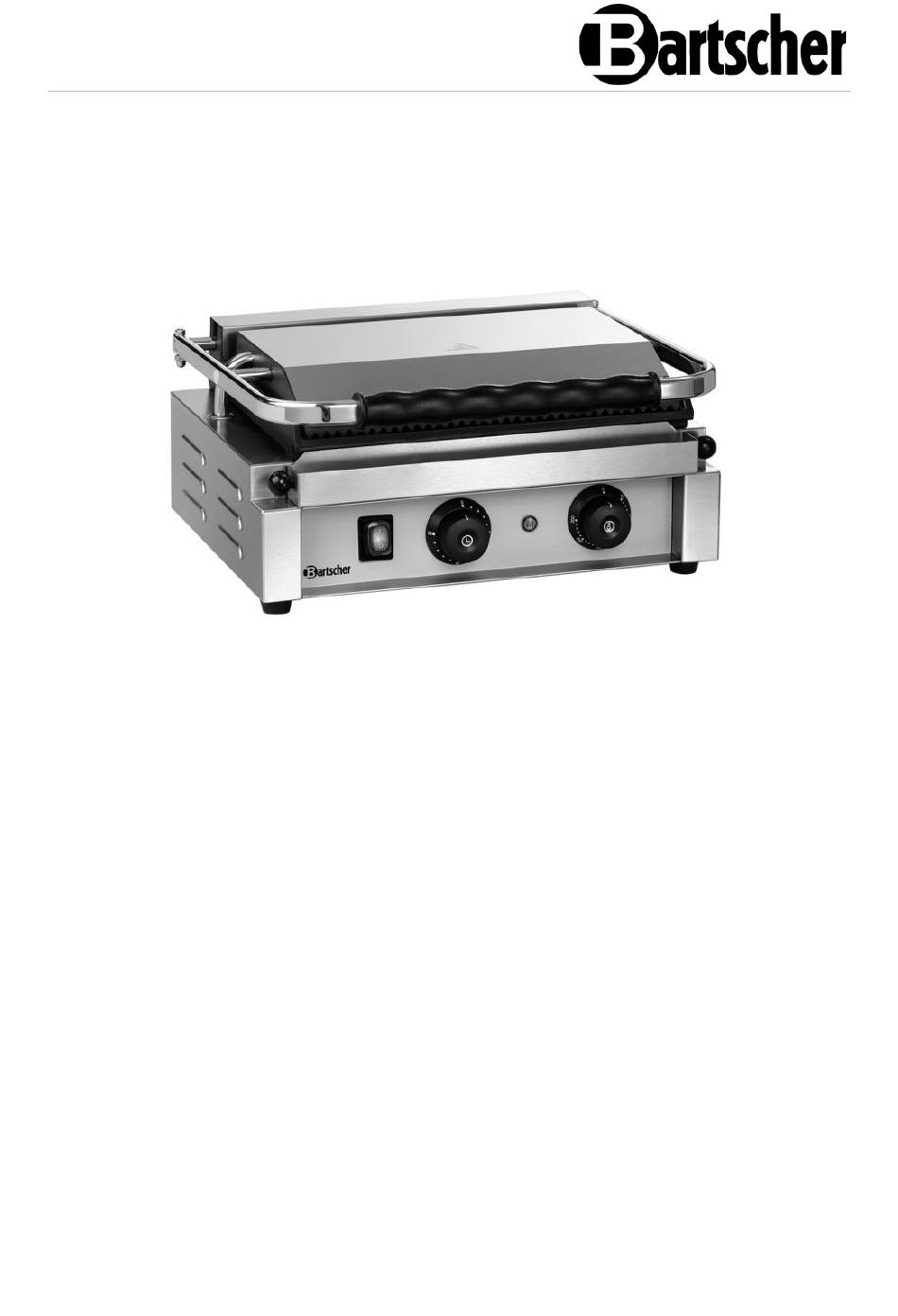

    Technical Data List of Components of the Appliance Fig. 1 1. Handle 2. Top grill plate 3. Bottom grill plate 4. Grease collection tray 5. Feet (4 pcs) 6. Temperature controller 7. Heating up indicator light (orange) 8. Timer 9. ON/OFF switch with integrated power 10.
  • Page 14: Functions Of The Appliance

    Installation and operation Functions of the Appliance The contact grill features a large grill surface and an integrated timer. The robust design with smooth/corrugated cast iron grill plates enables hygienic preparation of appropriate food products. Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage.
  • Page 15 Installation and operation • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • When selecting the installation site, please consider the following items: – The mounting surface must be even, sufficiently load-bearing, waterproof, dry and resistant to high temperatures.
  • Page 16: Operation

    Installation and operation Operation WARNING! Risk of burns! During operation, the grill plates, collection tray and outer surfaces heat up considerably and remain hot for some time still after the appliance is switched off. Do not touch hot surfaces. When operating the appliance and immediately following it, you may touch the handle or the control elements (temperature controller, ON/OFF switch) only.
  • Page 17 Installation and operation • Reinigen Sie das Ger ät und Zubehörteile vor dem Gebrauch gründlic h nac h den Anweis ungen im Absc hnitt 6 „R einigung“. Uw aż ać, aby do ins tal acji elek trycz nej i skrzy nki rozdzi elcz ej ni e dostała się w oda. Trocknen Sie das Ger ät und Zubehörteil e gründlic h ab! •...
  • Page 18 Installation and operation 6. Watch the grilled product during processing until the grilling process is finished. NOTE! There is no need to flip the grilled products, as both grill plates are heated 7. Remove the grilled food from the grill plate. ATTENTION! When removing the ready food, do not use any hard nor sharp or pointed implements to avoid damaging the surface of grill plates.
  • Page 19: Cleaning And Maintenance

    Cleaning and Maintenance Setting of the service handle / upper grill plate If the service handle does not remain still in a lifted position or comes down, you need to tighten the screws in a brass block at the rear of the device using the supplied Allen wrench.
  • Page 20: Cleaning

    Cleaning and Maintenance Cleaning 1. Clean the appliance daily. CAUTION! Make sure that moisture, oil, nor fat do not enter the appliance. 2. Clean the housing, the handle and the outside of the top grill with a damp cloth. In case of stubborn soiling, use a mild cleaning agent. 3.
  • Page 21: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. The works may only be performed by suitably qualified technical personnel. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model and serial number.
  • Page 22: Disposal

    Disposal Malfunction Possible Cause Solution The orange heating-up Damaged heating-up Contact the service indicator light is not on although indicator light company the appliance is switched on and the grilling process runs as normal The appliance is connected to Temperature is not set Set the temperature the power supply, but grill using the temperature plates are not heating up...
