Summary of Contents for Bartscher Panini-T A150774

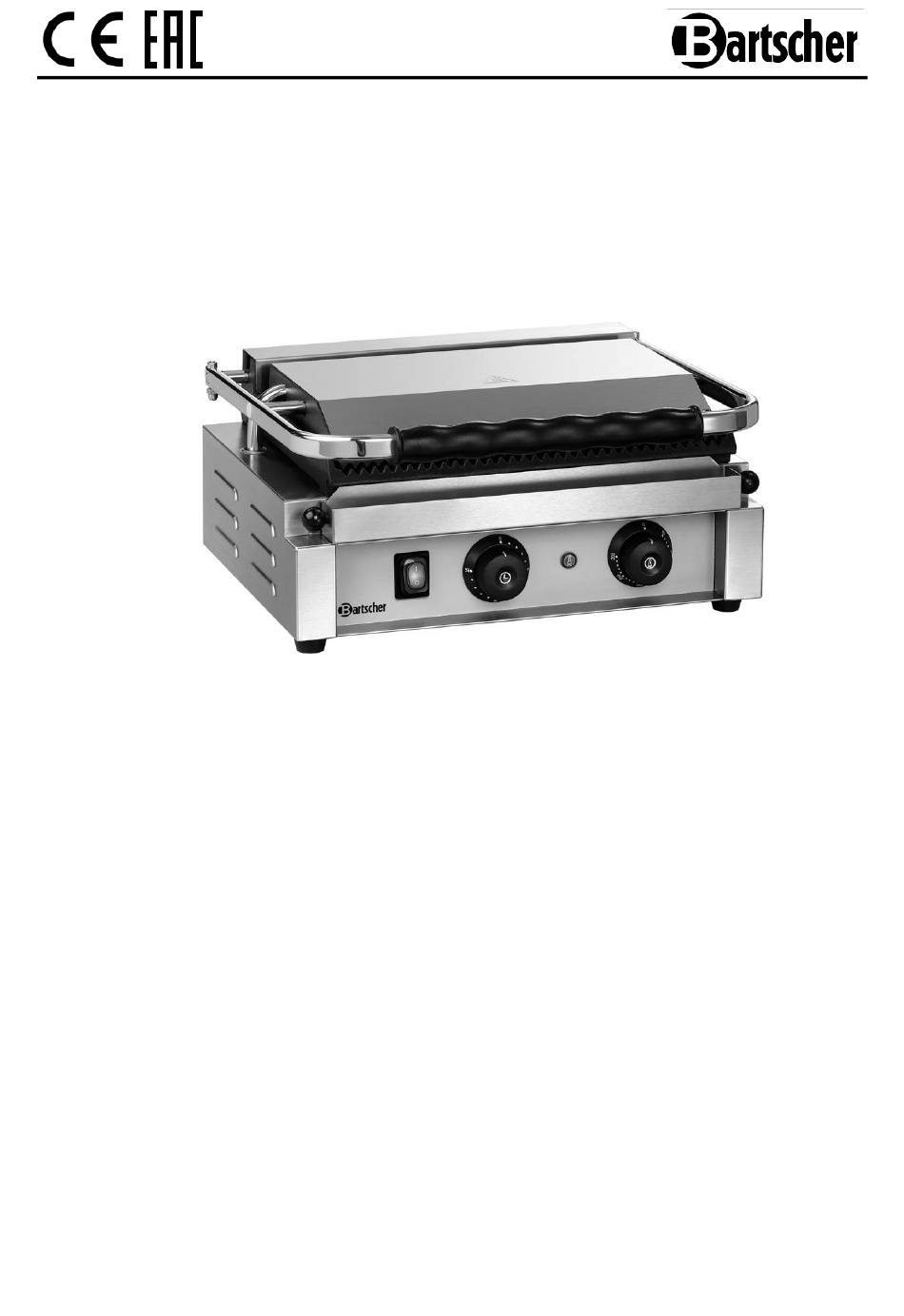

- Page 1 „Panini-T“ A150774 A150776 A150779 Original-Gebrauchsanleitung V1/1018...
-
Page 2: Table Of Contents
5. Installation and operation ..................30 5.1 Installation ......................30 5.2 Operation ......................31 6. Cleaning and maintenance ..................34 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. ...
- Page 6 Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...
- Page 7 The device remains hot still for some time after it has been switched off. Before cleaning or moving the device to another place, let it cool down completely. Never move the device during operation. WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: ...
-
Page 8: Proper Use
1.3 Use as intended CAUTION! The device has been designed and built for commercial use and should be operated only by qualified personnel in kitchen facilities. Every use of the device for a different purpose and/or in a way that diverges from the intended use is not allowed and is assumed as the use against the intended purpose. -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Technical data Contact Grill „Panini-T“ Description A150774 A150776 A150779 Code- No.: Model: Upper grill plate - Grill surface versions: Grooved grooved, lower Flat grill plate - flat Body: stainless steel, Material: Grill plates: cast iron, enamelled ... -
Page 12: Overview Of Parts
4.2 Overview of parts Service handle Upper grill plate Lower grill plate Body Rubber feet Temperature control knob Heating control light (orange) Timer knob ON/OFF switch with integrated power indicator light (green) Grease collection tray Cable guide Cleaning brush - 29 -... -
Page 13: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! Any installation, connection and maintenance work related to the device must be performed by the qualified and certified technician in accordance with the applicable international, national and local regulations. Positioning Unpack the device and discard the entire packaging material according to the regulations valid in the country of installation. -
Page 14: Operation
Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! ... - Page 15 The device is equipped with the temperature control knob. The temperature is adjustable between 50 °C and 300 °C. We recommend maintaining the maximum operating temperature between 200 °C and 250 °C. Using the timer knob you can set the time within the range from 0 to 15 minutes. Signal tone is heard after expiry of the set time.
- Page 16 Open the device using the service handle. NOTE! Do not use any hard or sharp objects on the grill to prevent damaging the surface or control elements. Remove the grilled food from the grill plate. If the device is no longer used, turn the ON/OFF switch to O position and switch the power supply off (pull the plug from the mains socket!).
-
Page 17: Cleaning And Maintenance
6. Cleaning and maintenance WARNING Before cleaning the device, turn the device off with ON/OFF switch and disconnect it from the power supply (pull the plug!). Leave the device to cool down. The device is not suited for direct washing via water jets! Protect the device from the water penetration. -
Page 18: Possible Malfunctions
7. Possible Malfunctions In case of failure turn the device off with the main switch and disconnect the device from the power supply (pull the plug!). Before calling the technician or informing the vendor check the possibility of removing the failure by yourself according to the table below. Problem Possible reason Solution... -
Page 19: Waste Disposal
Electric devices should be used and disposed of properly to prevent the impact on the environment. Disconnect the device from the power supply and remove the power cord from the device. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
