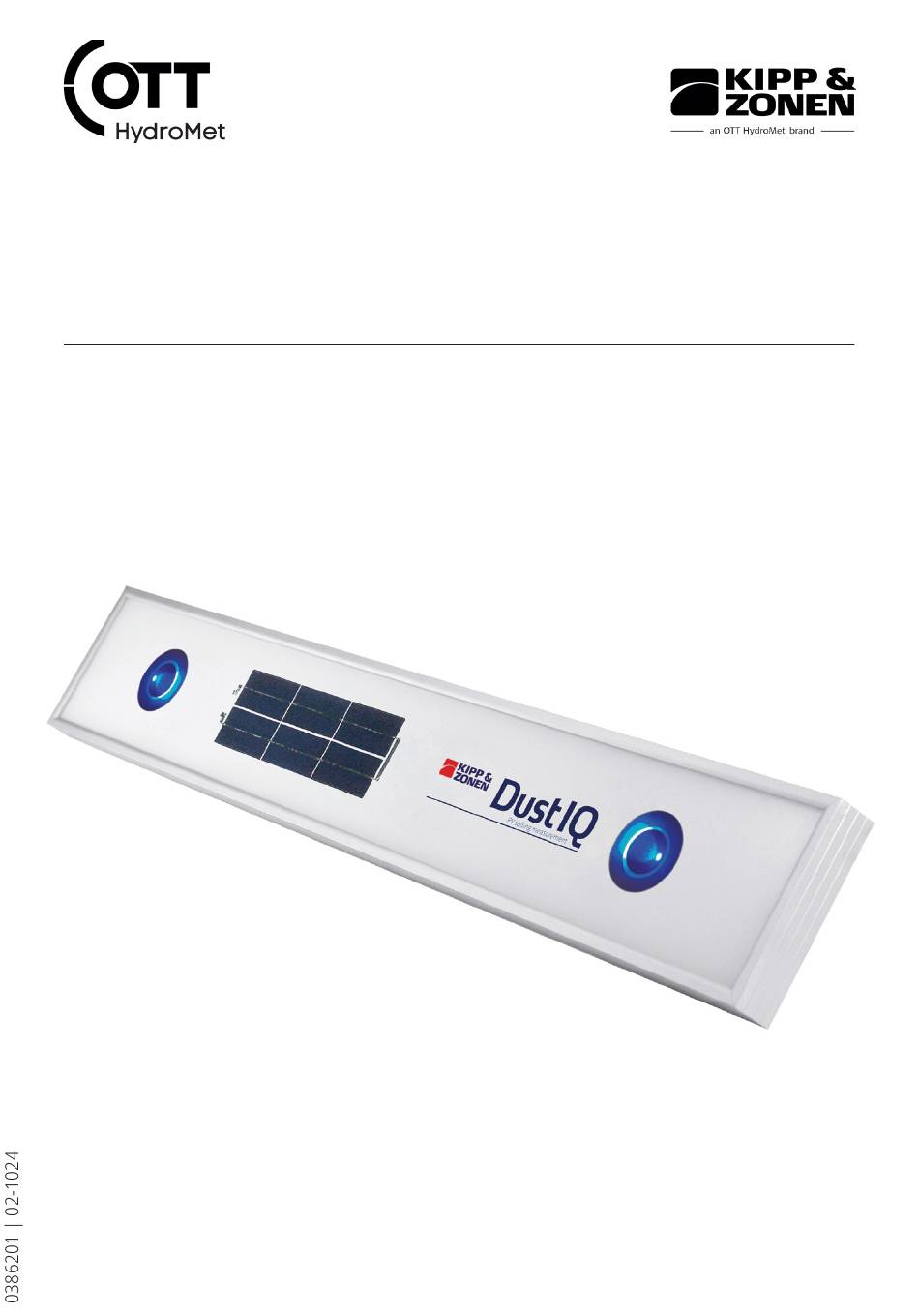

- Page 1 DustIQ Soiling Monitoring System Firmware Update Instructions...
- Page 2 +31 15 2755 210 solar-info@otthydromet.com www.otthydromet.com All rights reserved. All content is the intellectual property of OTT HydroMet. Reprinting, duplication and translation (even as excerpts) are only permitted with the prior written consent of OTT HydroMet. Subject to technical change.
-
Page 3: Table Of Contents
Table of contents About this quick guide General safety instructions Intended use Potential misuse 2.3 Operator obligations and personnel qualification Personnel obligations Correct handling Installation and maintenace at high places Mechanical risks 2.8 Certification Perform the firmware update Connect DustIQ to your computer 3.2.1 Connect the data cable 3.3.2 Connect general USB converter (Smart Setup) and power supply 3.3.3 Connect Kipp&Zonen PMU485 Smart Setup Hub 3.2... -
Page 4: About This Quick Guide
1 About this quick guide This quick guide describes how to update the DustIQ firmware using SmartExplorer. 1.1 Software and applicable documents The following documents contain further information on installation, maintenance and calibration: – Instruction Manual DustIQ – Soiling Monitoring System – Instruction Sheet and Datasheet – DustIQ Soiling Monitoring System – Instruction Manual PMU485 – Smart Setup Hub for RS-485 instruments The documents above and the following software can be downloaded at www.kippzonen.com: – Smart Explorer, DustIQ Firmware Updates 1.2 General signs and symbols... -
Page 5: General Safety Instructions
Install and operate the product under the technical conditions described in the operational manual. Do not change or convert the product in any way. Do not perform any repairs yourself. Get OTT HydroMet to examine and repair any defects. Ensure that the product is correctly disposed of. Do not dispose of it in household waste. 2.5 Installation and maintenance at high places When the product is installed and maintained at high places, special safety measures must be taken to avoid personal injury. -
Page 6: Certification
2.8 Certification CE (EU) The equipment meets the essential requirements of EMC Directive 2014/30/EU. FCC (US) FCC Part 15, Class „B“ Limits This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause un- desired operation. -
Page 7: Perform The Firmware Update
3 Perform the firmware update 3.1 Connect DustIQ to your computer 3.1.1 Connect the data cable Daisy chain or temperature sensor Calibration button Host Solar panel Sensor 2 Sensor 1 Connect all wires in the junction box, SCADA system or data logger. Locate the 8-pin connector correctly in the DustIQ socket labelled Host (2), it only fits one way. -
Page 8: Connect General Usb Converter (Smart Setup) And Power Supply
3.1.2 Connect general USB converter (Smart Setup) and power supply When using an USB-RS485 converter, the following connections need to be made: Ensure that the power supply is switched off. Connect the white (12-30 V) and black (ground) wire to the power supply. Connect the yellow (+), gray (-) and blue wires (Modbus common) to the RS-485 converter. ... -
Page 9: Update The Firmware
3.2 Update the firmware Connect DustIQ to your computer. Check the Windows Device Manager to find which COM port (1) is connected. Download the Firmware Update Program from the Kipp&Zonen web page. Start the FirmwareUpdate.exe (1) application. Select the correct COM port (1) in the Firmware Update Program. ... - Page 10 Click on the Update Firmware button (1) and choose the firmware file (2). The green bar (1) will indicate that the update process is busy. <10>...
- Page 11 If the update is successfull this message (1) will be presented. Click on the Reboot Device button (2) to reboot the device. After the reboot is done, validate that the software version is correct (1). ...
