an OTT HydroMet brand
CMP Series Pyranometers
Operational Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kipp & Zonen CMP Series and is the answer not in the manual?

Questions and answers

Related Manuals for OTT HydroMet Kipp & Zonen CMP Series

Summary of Contents for OTT HydroMet Kipp & Zonen CMP Series

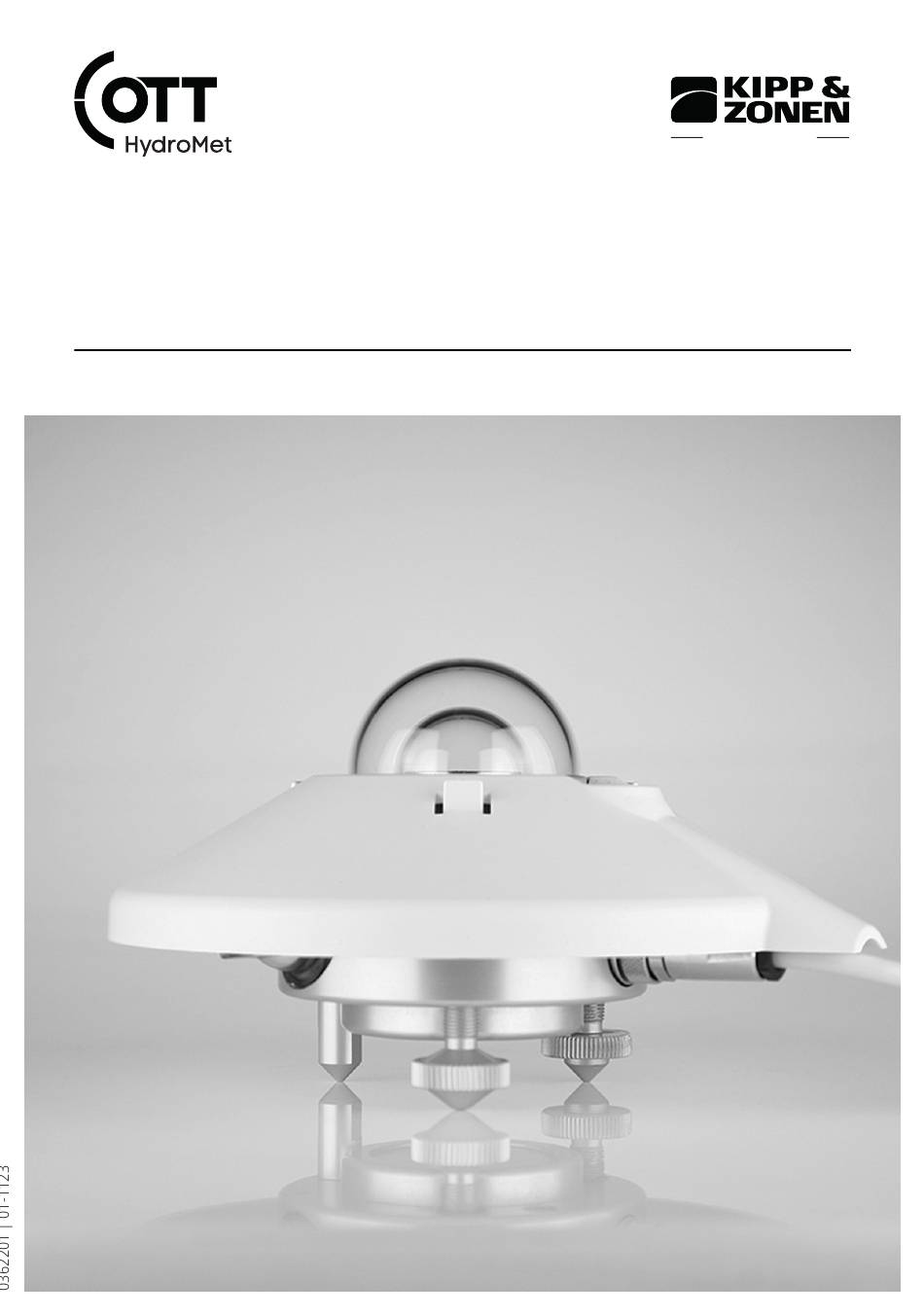

  • Page 1 OTT HydroMet brand CMP Series Pyranometers Operational Manual...
  • Page 2 2628 XH Delft The Netherlands +31 15 2755 210 solar-info@otthydromet.com www.otthydromet.com All rights reserved. All content is the intellectual property of OTT HydroMet. Reprinting, duplication and translation (even as excerpts) are only permitted with the prior written consent of OTT HydroMet. Subject to technical change.

  • Page 3: Table Of Contents

    Table of contents Scope of supply Order numbers and variant code Product variants Accessories and spare parts About this manual General signs and symbols Explanation of warnings General safety instructions Intended use Potential misuse Personnel qualification Personnel obligations Danger of burns due to hot surfaces Correct handling Certification Product description...
  • Page 4 Operation Making and saving measurements Collecting data Maintenance Maintenance schedule Replacing desiccant Troubleshooting 10.1 Fault elimination Repair 11.1 Customer support Notes on disposing of old devices Technical data 13.1 Optical and electrical data 13.2 Dimensions and weight <4>...

  • Page 5: Scope Of Supply

    1 Scope of supply The following items are included with CMP series pyranometers: – Pyranometer – Sun shield – Cable, pre-wired with connector (2, 4 or 8 pins) or connector only for customer cable – Calibration certificate (with temperature response and directional response for CMP21 and CMP22) –...

  • Page 6: Order Numbers And Variant Code

    2 Order numbers and variant code 2.1 Product variants Variant Order number CMP3 0338920 CMP6 0362900 CMP10 0379900 CMP21 0362920 CMP22 0362930 2.2 Accessories and spare parts Accessories Item Order number CVF 4 Ventilation Unit 0378910 CMF1 - Albedometer mount 0362700 CMF4 - Albedometer mount 0362703...
  • Page 7 For CMP21, CMP22 Item Order number 10 m cable, pre-wired with waterproof 4-pin plug 0362611 25 m cable, pre-wired with waterproof 4-pin plug 0362613 50 m cable, pre-wired with waterproof 4-pin plug 0362614 Waterproof 4-pin plug 2523145 For CMP21 Item Order number 10 m cable, pre-wired with waterproof 8-pin plug 0362621 25 m cable, pre-wired with waterproof 8-pin plug 0362623...

  • Page 8: About This Manual

    3 About this manual 3.1 General signs and symbols The signs and symbols used in the operating manual have the following meaning: Practical tip This symbol indicates important and useful information. Action ü Prerequisite that must be met before performing an action. 4 Step 1 ð...

  • Page 9: General Safety Instructions

    4 Do not change or convert the product in any way. 4 Do not perform any repairs yourself. 4 Get OTT HydroMet to examine and repair any defects. 4 Ensure that the product is correctly disposed of. Do not dispose of it in household waste.

  • Page 10: Certification

    4.7 Certification CE (EU) The equipment meets the essential requirements of EMC Directive 2014/30/EU. FCC (US) FCC Part 15, Class "B" Limits This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 11: Product Description

    5 Product description 5.1 Design and function The CMP series instruments are radiometers designed for measuring short-wave irradiance on a plane surface (radiant flux, W/m ) which results from the sum of the direct solar radiation and the diffuse sky radiation incident from the hemisphere above the instrument.

  • Page 12: Product Overview

    5.2 Product overview CMP3 pyranometer Sun shield Bubble level Thermopile detector Adjustable leveling feet Glass dome Fixed foot Connector Housing CMP10 pyranometer Sun shield Connector Inner glass dome Housing Outer glass dome Adjustable leveling feet Thermopile detector Fixed foot Bubble level Internal desiccant <12>...
  • Page 13 CMP6, CMP21, CMP22 pyranometers Sun shield Connector Inner glass dome Housing Outer glass dome Adjustable leveling feet Thermopile detector Fixed foot Bubble level Drying cartridge <13>...

  • Page 14: Transport, Storage, And Unpacking

    6 Transport, storage, and unpacking 6.1 Unpacking 4 Carefully remove the product from the packaging. 4 Check that the delivery is complete and undamaged. 4 If you find any damage or if the delivery is incomplete, then immediately contact the supplier and manufacturer.

  • Page 15: Installation And Commissioning

    7 Installation and commissioning 7.1 Planning installation For the solar irradiation to be measured in the entire photovoltaic system, it is necessary to position several pyranometers in the system. The number of pyranometers required depends on the system’s performance and ambient conditions.

  • Page 16: Installation For Measuring Global Radiation

    7.2.3 Installation for measuring global radiation 7.2.3.1 Choosing a site There should be no obstructions to the field of vision above the instrument’s sensor element. If this is not possible, the location of the instrument must be chosen to ensure that obstacles do not rise by more than 5 degrees above the azimuth range between sunrise after the shortest night and sunset on the longest day.

  • Page 17: Installation For Measuring Global Radiation On Sloping Surfaces

    4 To insulate the instrument against the temperature of the mounting device, place the instrument on the adjustable foot and the two leveling feet. 4 Position the instrument in such a way that the nuts are located at a distance of 2 to 3 mm from the mounting device.

  • Page 18: Installation For Measuring Reflected Radiation

    7.2.5 Installation for measuring reflected radiation In inverted position the pyranometer measures the reflected global radiation. Mounting plate Pyranometer Glare screen Mast (black) Equator The mounting plate prevents the pyranometer from being heated by solar radiation. The optional glare screen has an angle of 5 degrees and prevents direct radiation on the glass dome during sunrise and sunset.

  • Page 19: Installation For Measuring Diffuse Radiation

    7.2.7 Installation for measuring diffuse radiation For the diffuse radiation to be measured, the direct radiation on the pyranometer’s glass dome must be blocked. The direct radiation can be blocked using a static shadow ring or a two-axis automatic sun tracker. Shadow ring Pyranometer Mounting bracket...

  • Page 20: Electrical Installation

    7.3 Electrical installation 7.3.1 Electrical connections CMP3, CMP6, CMP10 and CMP11 are fitted with a 2-pin connector and 2-wire shielded cable. CMP21 and CMP22 are fitted with a 4-pin connector and 4-wire shielded cable, the 2 extra connections are for the standard 10k thermistor temperature sensor signal.

  • Page 21: Operation

    8 Operation 8.1 Making and saving measurements The CMP series pyranometers only require a suitable source of radiation (light) to operate and make measurements, no power is required. 4 To save the measurements, connect the pyranometer to a readout or data storage device. The pyranometer has no internal data memory.

  • Page 22: Maintenance

    4 Check fastenings and basic supports. 4 Clean the sun shield if dirty. 2 years 4 Check sensitivity or have a recalibration performed. OTT HydroMet 10 years 4 Replace the desiccant in the CMP10 pyranometer. OTT HydroMet 9.2 Replacing desiccant The housing of the CMP3 pyranometer is sealed and the desiccant cannot be replaced.

  • Page 23: Troubleshooting

    4 Check the data logger or readout offset by connecting a dummy load (100 Ohm resistor). ð Gives a 'zero' reading. 4 Check that the leveling is correct. 4 Report any malfunctions or damage to the representative of OTT HydroMet. <23>...

  • Page 24: Repair

    11 Repair 11.1 Customer support 4 Have repairs carried out by OTT HydroMet service personnel. 4 Only carry out repairs yourself if you have first consulted OTT HydroMet. 4 Contact your local representative: www.otthydromet.com/en/contact-us 4 Include the following information: – instrument model –...

  • Page 25: Notes On Disposing Of Old Devices

    In accordance with the German Electrical and Electronic Equipment Act (ElektroG; national implementation of EU Directive 2012/19/EU), OTT HydroMet takes back old devices in the Member States of the European Union and disposes of them in the proper manner. The devices that this concerns are labeled with the following symbol: 4 For further information on the take-back procedure contact OTT HydroMet: OTT HydroMet B.V.

  • Page 26: Technical Data

    13 Technical data 13.1 Optical and electrical data Specification CMP3 CMP6 CMP10 CMP21 CMP22 Classification to Spectrally flat Class C Spectrally Flat Class B Spectrally Flat Class A Spectrally Flat Class A Spectrally Flat Class A ISO 9060:2018 Spectral range 285 to 3000 nm 270 to 3000 nm 270 to 3000 nm 270 to 3000 nm 200 to 3600 nm...
  • Page 27 Specification CMP3 CMP6 CMP10 CMP21 CMP22 Directional response < 20 W/m < 20 W/m < 10 W/m < 10 W/m < 5 W/m (up to 80° with 1000 W/m beam) Spectral selectivity < 3 % < 3 % < 3 % < 3 % < 3 % (350 to 1500 nm) Temperature response < 4 % < 2 % < 1 % < 1 % < 0.5 % (-10 °C to +40 °C) (-10 °C to +40 °C) (-10 °C to +40 °C) (-20 °C to +50 °C) (-20 °C to +50 °C)

  • Page 28: Dimensions And Weight

    13.2 Dimensions and weight 50 mm 32 mm 110 mm 150 mm 167 mm CMP3 CMP6, CMP10, CMP21, CMP22 Specification CMP3 CMP6, CMP10, CMP21, CMP22 Instrument weight 300 g 600 g Dimensions unpacked (diameter x height) 11 x 8.4 cm 15 x 9.3 cm Packaging dimensions 28 x 20 x 10 cm 23 x 20 x 16 cm Weight of 10 m cable 400 g <28>...
  • Page 29 <29>...
  • Page 30 <30>...
  • Page 31 <31>...
  • Page 32 Contact Information...
