Summary of Contents for OTT HydroMet Kipp & Zonen CNR4
- Page 1 OTT HydroMet brand CNR4 Net Radiometer Operational Manual...
- Page 2 2628 XH Delft The Netherlands +31 15 2755 210 solar-info@otthydromet.com www.otthydromet.com All rights reserved. All content is the intellectual property of OTT HydroMet. Reprinting, duplication and translation (even as excerpts) are only permitted with the prior written consent of OTT HydroMet. Subject to technical change.
-
Page 3: Table Of Contents
Table of contents Scope of supply Order numbers and variant code Product variants Accessories and spare parts About this manual Other applicable documents General signs and symbols Explanation of warnings General safety instructions Intended use Potential misuse Personnel qualification Operator obligations Personnel obligations Correct handling Certification... - Page 4 Maintenance Maintenance schedule Replacing drying cartridge of CNR4 Replacing filter of CNF4 Troubleshooting Error elimination Testing the pyranometer Testing the pyrgeometer Testing the Pt-100 Testing the thermistor Testing the heater Testing the ventilator Repair 10.1 Customer support Notes on disposing of old devices Technical data 12.1 Optical and electrical data...
-
Page 5: Scope Of Supply
1 Scope of supply The following items are included with delivery: – CNR4 net radiometer – Mounting rod – 2 drying cartridges – Instruction sheet – Test reports – CNF4 ventilation unit (optional) <5>... -
Page 6: Order Numbers And Variant Code
2 Order numbers and variant code 2.1 Product variants Variant Order number CNR4 Net Radiometer, four-component, no plug, no 0369900-030 cable Optional Variant Order number CNF4 Ventilation Unit 8 wire, no plug, no cable 0369710-000 2.2 Accessories and spare parts Item Order number AMPBOX signal amplifier, standard gain setting... -
Page 7: About This Manual
3 About this manual 3.1 Other applicable documents The following documents contain further information on installation, maintenance and calibration: – Instruction Sheet 3.2 General signs and symbols The signs and symbols used in the operational manual have the following meaning: Practical tip This symbol indicates important and useful information. -
Page 8: General Safety Instructions
4 Do not change or convert the product in any way. 4 Do not perform any repairs yourself. 4 Get OTT HydroMet to examine and repair any defects. 4 Ensure that the product is correctly disposed of. Do not dispose of it in household waste. -
Page 9: Certification
4.7 Certification CE (EU) The equipment meets the essential requirements of EMC Directive 2014/30/EU. FCC (US) FCC Part 15, Class "B" Limits This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. -
Page 10: Product Description

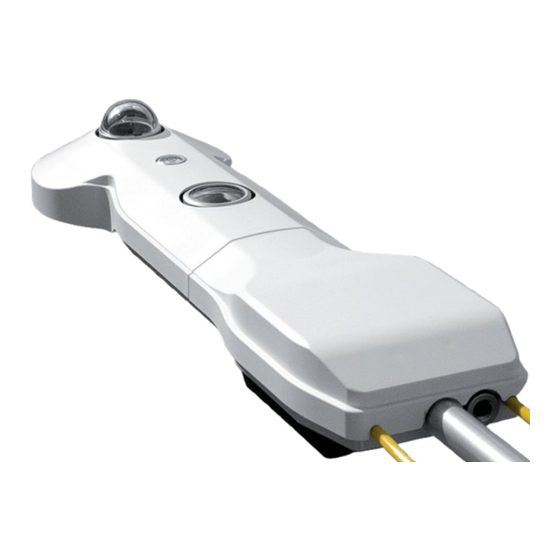

5 Product description 5.1 Design and function The CNR 4 is a 4 component net radiometer that measures the energy balance between incoming short-wave and long-wave Far Infrared (FIR) radiation versus surface-reflected short-wave and outgoing long-wave radiation. The CNR 4 net radiometer consists of a pyranometer pair, one facing upward, the other facing downward, and a pyrgeometer pair in a similar configuration. - Page 11 CNF4 ventilation unit (optional) Cable feed-through for temperature connection Cable feed-through for sensor connection Ventilation unit connector Filter Mounting rod feed-through <11>...
-
Page 12: Transport, Storage, And Unpacking
6 Transport, storage, and unpacking 6.1 Transport 4 Transport the product always in its original packaging. 4 Ensure that the product is not mechanically stressed during transport. 6.2 Storage 4 Store within specified temperature ranges. 4 Store in dry area. 4 Store in original box where possible. -
Page 13: Installation
7 Installation 7.1 Mechanical installation 7.1.1 Required tools and aids The following tools and aids are required: – adjustable wrench, 6" to 12" – torque wrench – spanner wrench, M6 and M8 7.1.2 Choosing a site There should be no obstructions to the field of vision above the instrument’s sensor element. If this is not possible, the location of the instrument must be chosen to ensure that obstacles do not rise by more than 5 degrees above the azimuth range between sunrise after the shortest night and sunset on the longest day. -
Page 14: Mounting Instrument
7.1.3 Mounting instrument 4 Screw in the mounting rod. 4 Attach the mounting rod at the chosen installation site or use the CMB1 mounting bracket to fix the mounting rod to a mast, pole or wall. 4 Ensure that the instrument is approximately 1.5 m above the ground 4 Align the mounting rod with the next pole. -
Page 15: Sensor Connection
7.2.2 Sensor connection The sensor connector carries the signals for the pyranometers and pyrgeometers. 8-pin sensor connector Pin assignment Wire Number Color Function Connect to Pyranometer upper + Hi Blue – – Lo White Pyranometer lower + Hi Black – –... -
Page 16: Grounding Instrument
Wire Number Color Assignment Yellow Combined Pt-100 standard Brown Shield Housing Ground 7.2.4 Grounding instrument 4 If the instrument has not been grounded, connect the black shield cable to the ground. 4 To avoid ground loops and signal offsets, do not connect the shield to the data logger if the instrument is grounded to the mast. -
Page 17: Maintenance
4 Clean the cover if dirty. 2 years 4 Replace the drying cartridge. Operator 2 years 4 Have a recalibration performed. OTT HydroMet CNF4 ventilation unit Interval Activity Performed by 6 to 12 months 4 Check the filter for dust and particles. -
Page 18: Replacing Drying Cartridge Of Cnr4
8.2 Replacing drying cartridge of CNR4 CAUTION Risk of slight burns due to warm surface! As soon as the device is connected to the power supply, the device starts to heat up. Touching the warm surface can be painful and can cause fright. 4 Disconnect the device from the power supply and allow it to cool down. -
Page 19: Replacing Filter Of Cnf4
8.3 Replacing filter of CNF4 Filter 4 Pull the filter with the cover from the ventilation unit. 4 Replace the filter. 4 Click the cover back on the ventilation unit. <19>... -
Page 20: Troubleshooting
9 Troubleshooting 9.1 Error elimination If the instrument does not work properly and the problem is not clear, perform an "upside-down test" as follows: ü Indoor: A lamp is available as a source of solar and far infrared radiation. ü Outdoor: – ... -
Page 21: Testing The Pyrgeometer
The range can be estimated on theoretical considerations. When the maximum expected radiation is 1500 Watts per square metre, which is roughly equal to normal outdoor daylight conditions, and the sensitivity of the pyranometer is 15 μV per Watt per square metre, the expected output range of the pyranometer is 1500 times 15 which is equal to 22 500 μV, or 0.0225 Volts. -
Page 22: Testing The Ventilator
9.7 Testing the ventilator Test the ventilator of the optional CNF4 ventilation unit as follows: 4 Check the impedance of the ventilator motor. ð The value should be around 30 Ohms. The cable resistance should measure about 0.1 Ohms per metre cable. In this case a correct value is measured this does not guarantee proper operation. -
Page 23: Repair
10 Repair 10.1 Customer support 4 Have repairs carried out by OTT HydroMet service personnel. 4 Only carry out repairs yourself, if you have first consulted OTT HydroMet. 4 Contact your local representative: www.otthydromet.com/en/contact-us 4 Include the following information: – instrument model –... -
Page 24: Notes On Disposing Of Old Devices
In accordance with the German Electrical and Electronic Equipment Act (ElektroG; national implementation of EU Directive 2012/19/EU), OTT HydroMet takes back old devices in the Member States of the European Union and disposes of them in the proper manner. The devices that this concerns are labeled with the following symbol: 4 For further information on the take-back procedure contact OTT HydroMet: OTT HydroMet B.V. -
Page 25: Technical Data
12 Technical data 12.1 Optical and electrical data CNR4 net radiometer Specification Value Number of signal outputs 4 - incoming and reflected short-wave radiation downward and upward long-wave radiation Pyrgeometer temperature sensors 10 K thermistor and Pt-100 Response time (95 %) 18 s <... -
Page 26: Dimensions And Weight
12.2 Dimensions and weight 235 mm 170 mm 347 mm CNR4 net radiometer with CNF4 ventilation unit Specification CNR4 CNF4 Mounting rod Screw-in, 350 mm long x 16 mm Ø – Weight 850 g (with rod) 500 g <26>... - Page 27 <27>...
- Page 28 Contact Information...
