4.2 Dimensions [mm]
4.3 Front Panel
4.3.1 Display
The panel is equipped with an LCD display, which shows the information about:
•
temperature setpoint (after pushing a + or – button, setpoint can be adjusted);
•
temperature current value with unit;
•
humidity current value with unit (optionally);
•
CO
current value with unit (optionally).
2
Note: Currently displayed parameters change with a frequency set in the 40217 register.

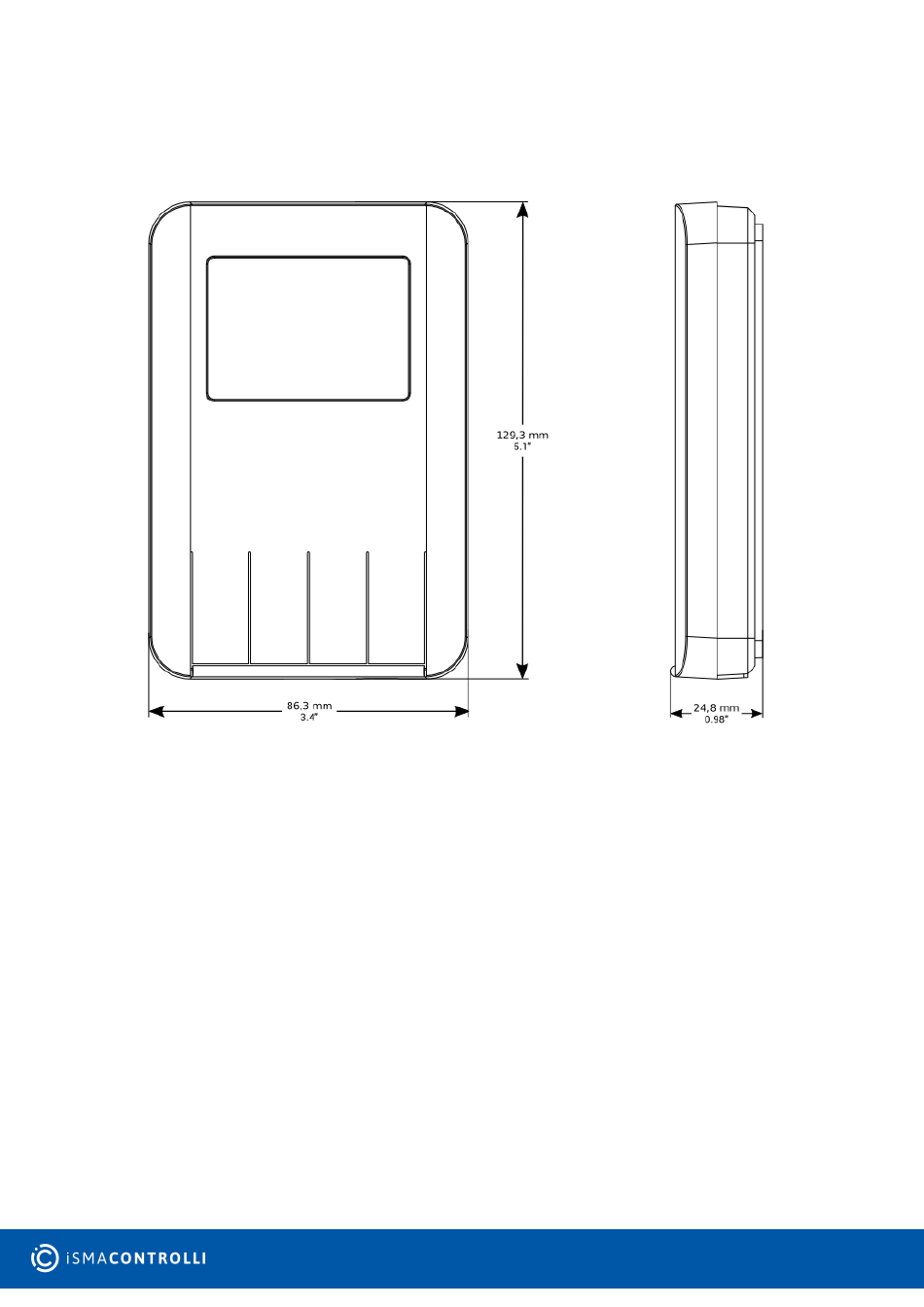

Figure 1. Control Point panel's dimensions
