4.3.2 Keypad

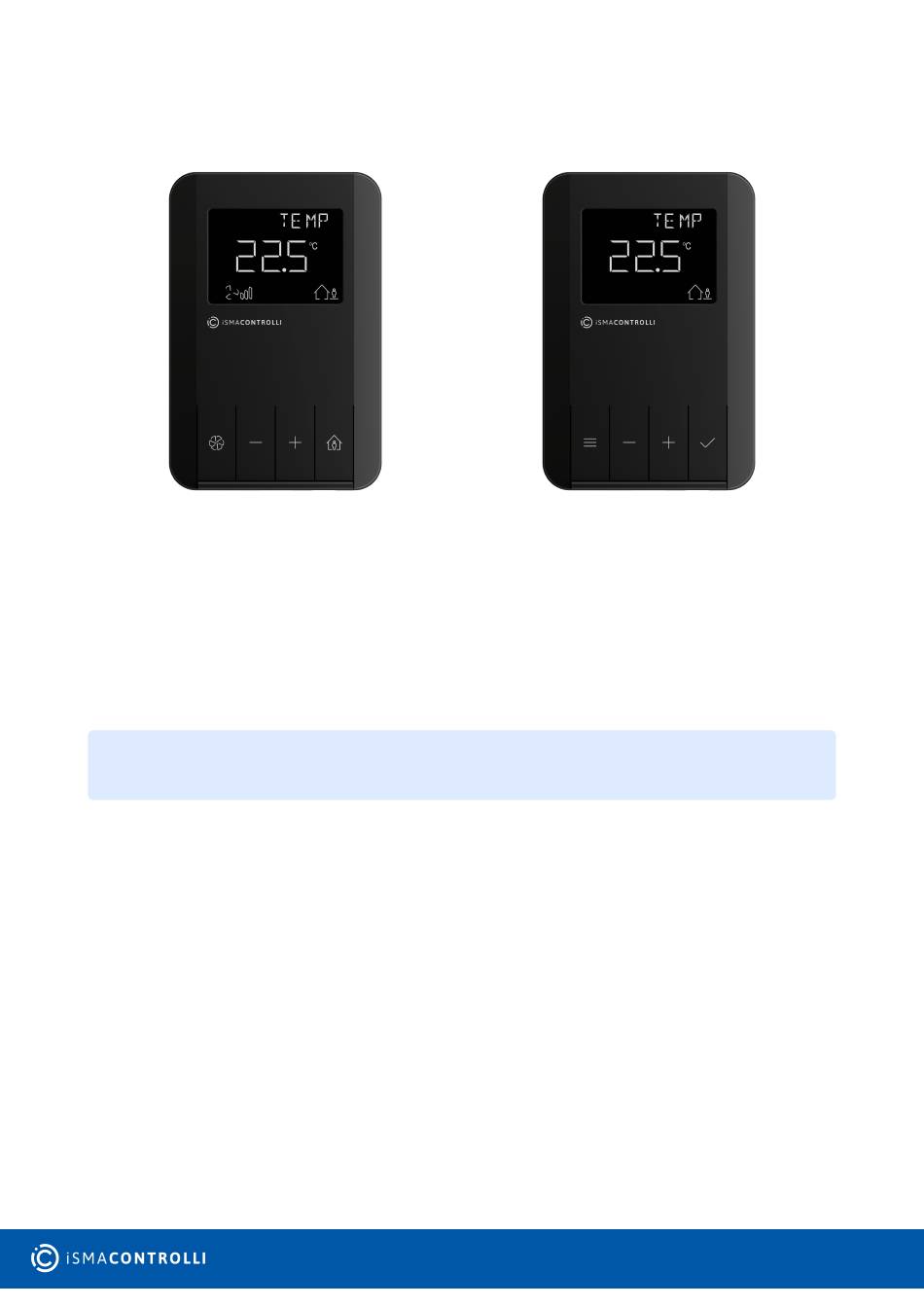

Figure 4. Control Point line
The Control Point panel has 4 functional buttons, which differ between the panel's
Control Point line and the Control Point VAV version.
In Control Point line, the buttons are the following:
• fan;
• decrement (-);
• increment (+);
• occupancy.
Note: In order to change the fan modes or occupancy status, use the increment/
decrement buttons.
In the Control Point VAV line, which has no fan control, the buttons are the following:
• menu;
• decrement (-);
• increment (+);
• confirmation.
4.4 Buzzer
The Control Point panel is equipped with a buzzer, which signalizes each pushing of a
button with a sound and/or provides a CO
CO level exceeds a set alarm value. The alarm can be confirmed and muted by pressing
2
any button.
The buzzer may be activated or deactivated using the DEVICE_CONFIGURATION register/
object (bit 0, BUZZER for activating/deactivating the buzzer, and bit 6 for activating or
deactivating CO alarm function).
2
