MVH56Ex
Valve Actuators with Emergency Fail-safe Function
1
1a
2
3
The performances stated in this sheet can be modifi ed without any prior notice.

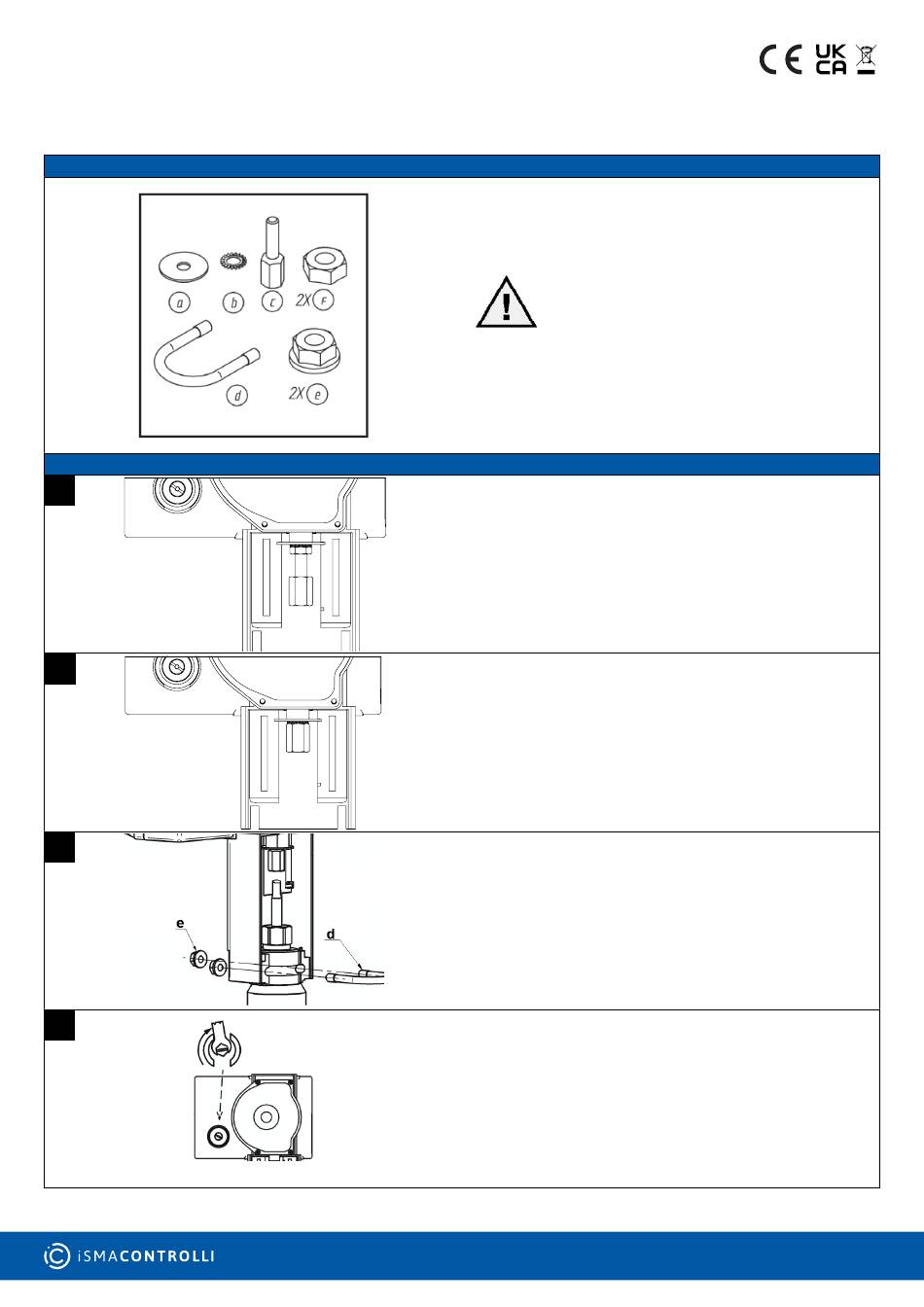

INSTALLATION
MVH56EA
www.ismacontrolli.com
Hot media hazard. Before removing actuator from valve or
opening the valve, ensure that the valve control medium is iso-
lated and remove the pressure. Work should only be carried
out by a competent engineer.
Note: do not use the actuator disassembled from
the valve.
For valve with 16 and 25mm stroke
Rise the valve stem;
Lock the stem extension c on the rack completely re-
tracted placing the indicator disk a, the jagged washer b
and the nut f positioned half of the extension itself.
For valves with 45mm stroke
Rise the valve stem;
Lock the stem extension c on the rack completely re-
tracted placing the indicator disk a and the jagged washer
b.
Assemble the actuator to the valve by U-bolt (d) and the two
nuts (e) without locking the nuts.
Raise the valve stem.
Remove the cover and rotate the pivot clockwise so that
the rack comes out for assembling it with the valve stem;
the pivot can be locked by a spanner as shown in the pi-
cture.
Rotate the actuator to screw the extension on the valve
stem, so lock it tightening the nut on the stem.
Tighten the two nuts on the U-bolt to lock the actuator.
Remove the key from the pivot and mount the small cap.
DIM262en | 1
Issue rev. 3 | 07/2022
st
page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVH56Ex and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iSMA CONTROLLI MVH56Ex

  • Page 1 MVH56Ex Valve Actuators with Emergency Fail-safe Function INSTALLATION Hot media hazard. Before removing actuator from valve or opening the valve, ensure that the valve control medium is iso- lated and remove the pressure. Work should only be carried out by a competent engineer.
  • Page 2: Mounting Positions

    MVH56EC For valve with 16 and 25mm stroke Lower the valve stem. Lock the stem extension c on the rack completely extended placing the indicator disk a, the jagged washer b and the nut f positioned half of the extension itself. For valves with 45mm stroke Lower the valve stem.
  • Page 3: Wiring Diagram

    200 m 25mA) 0 V (Common) 2÷10 V DC Feedback Output Signal 0.5mm (AWG20) 200 m 0 V (Common) Terminals correspondence with respect to other iSMA CONTROLLI actuators models. www.ismacontrolli.com DIM262en | 1 Issue rev. 3 | 07/2022 page 3...
  • Page 4 COMMAND + N.B. Signals M and Ln are internally connected. COMMAND - (*) MVH56Ex contain a half-wave rectifier power supply. They must not be powered with transformers that are used to power other devices using not isolated full-wave rectifier power supply.
  • Page 5 DIP Switch Direct Action Reverse Action MVH56EA Reverse Action Direct Action MVH56EC Modulating Control (MOD) (Input between Y [+] and 3 point floating (INC) ( Y1 open , Y2 close connected M [-]) L1 or Ln if powered in Vacd; if powered in Vdc con- nected necessarily to Ln ) MVH56EA Modulating Control (MOD) (Input between Y [+] and...
  • Page 6 ATTENTION! The electronic board is electrically supplied RED GREEN BLIN- KING SIMULTANE- The actuator is in emergency return phase iSMA CONTROLLI S.p.A. - Via Carlo Levi 52, 16010 Sant’Olcese (GE) - Italy | support@ismacontrolli.com www.ismacontrolli.com DIM262en | 1 Issue rev. 3 | 07/2022...
