Control Point Hardware User Manual
•
and the third switch allows for the RS485 network termination.
4.7.1 Restoring Default Settings
The first switch provides a possibility to restore default settings in the panel. In order to
do so, follow the steps below:
•
Turn off the power supply;
•
set the first switch to on;
•
turn on the power supply;
•
wait until LCD backlight starts blinking;
•
set the first switch to off.

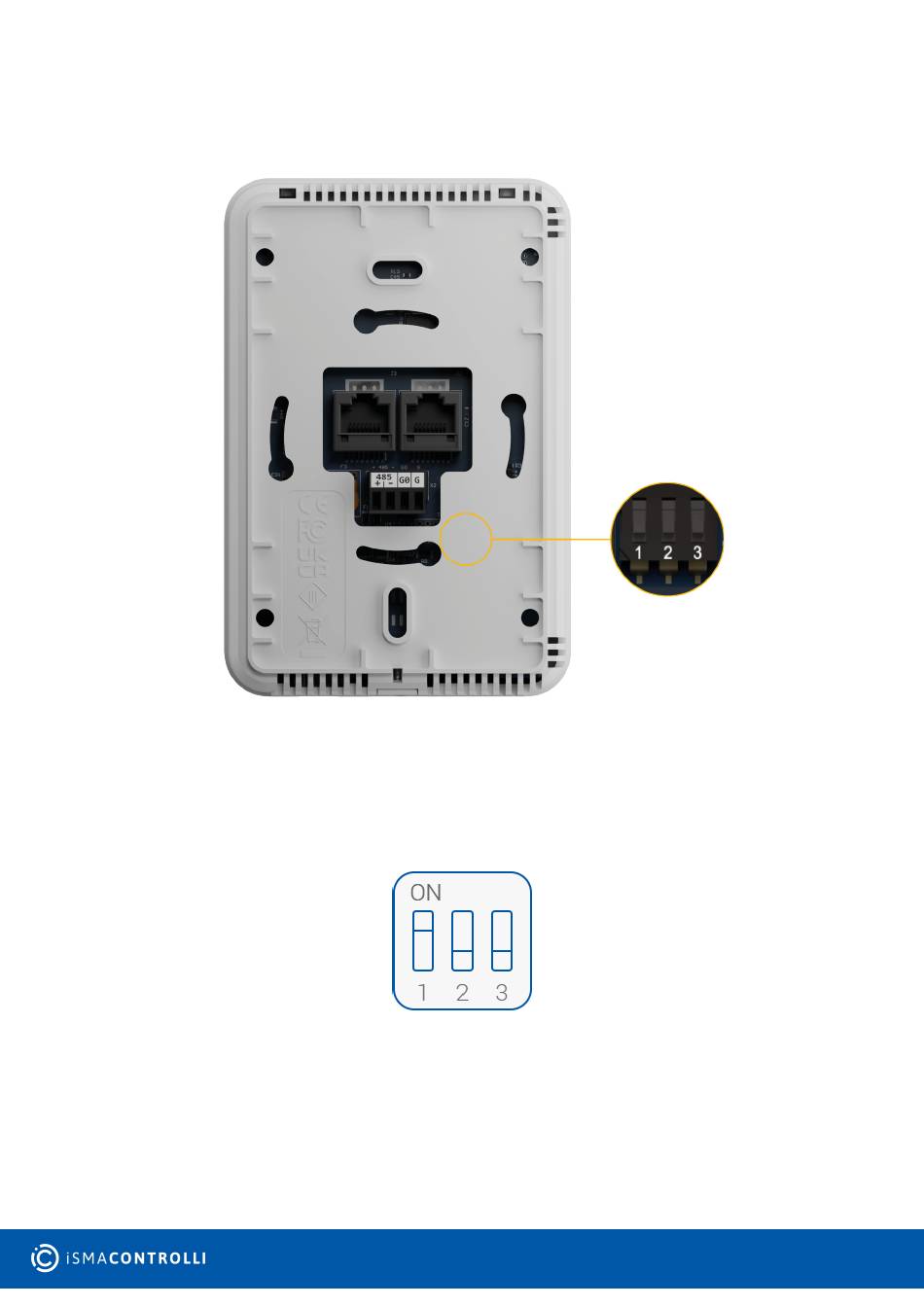

Figure 12. The DIP switch location under the back cover
Figure 13. Restoring default settings
www.ismacontrolli.com
DMP300en | 1st Issue rev. 0 | 01/2025
page 14 of 19
