Control Point Hardware User Manual
5 Mounting and Installation
The Control Point panel has been designed to fit all types of junction boxes, including the
US type. The panel is mounted with a wall back box.
5.1 Mounting With a Back Box

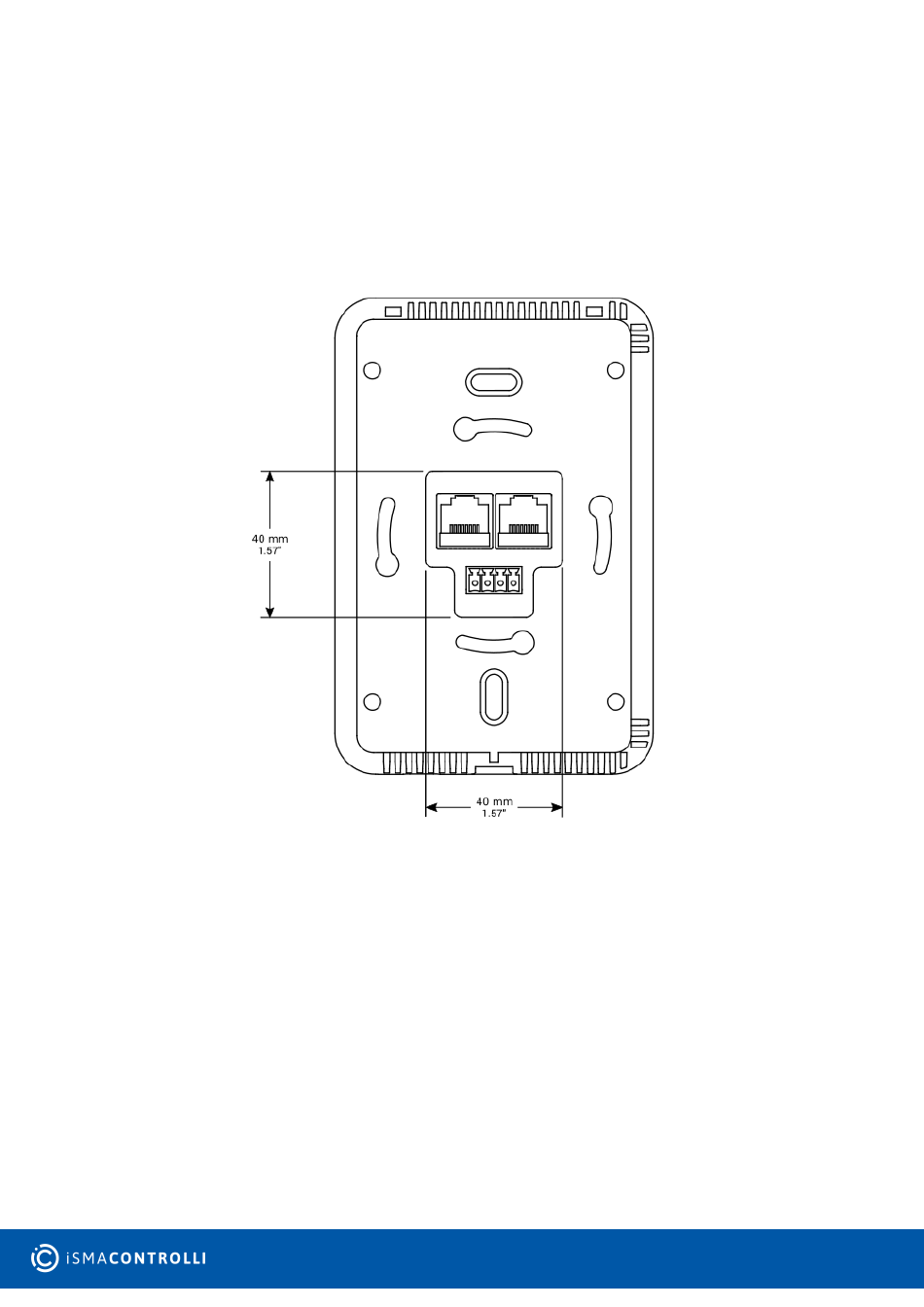

Figure 16. The back box of the panel – junction box fittings
www.ismacontrolli.com
DMP300en | 1st Issue rev. 0 | 01/2025
page 17 of 19
