Owne's Manual
Read this manual carefully
It contains important safety information
Minimum
Recommended
Operator age: 8+

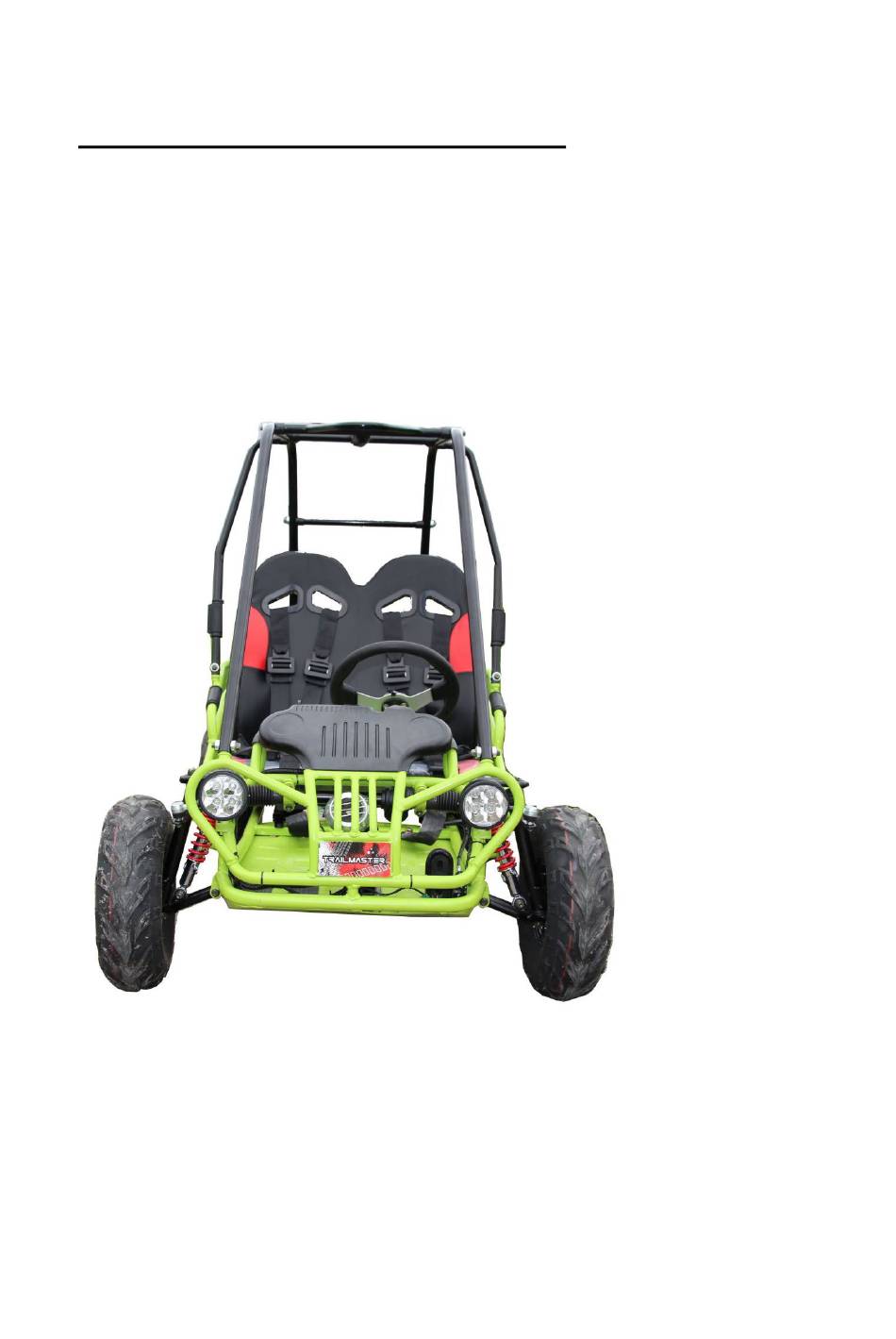

This operation manual is made for go-kart models: iMini
The vehicle is designed and manufactured, and is only applicable
to off-road sites and roads. It does not meet federal motor vehicle
safety standards.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailMaster iMini
Summary of Contents for TrailMaster iMini
- Page 1 It contains important safety information Minimum Recommended Operator age: 8+ This operation manual is made for go-kart models: iMini The vehicle is designed and manufactured, and is only applicable to off-road sites and roads. It does not meet federal motor vehicle safety standards.
-
Page 2: Table Of Contents
01 Safety Warning ..................00 02 Name of main parts of vehicle .............. 01 03Function of the meter and each button ..........02 04 Use and charge of battery ..............05 05 Check before riding ................07 06 Preparation before driving..............08 07 Regular inspection, maintenance and repair ........ -
Page 3: Safety Warning
Safe riding Before riding the vehicle. You must know the following points： Must fully understand the operation method of the vehicle. Understand thewarnings, cautions, and regulations in the manual. Persons under the age of 8 are strictly prohibited from driving vehicle on the road；... -
Page 4: Name Of Main Parts Of Vehicle
2 Name of main parts of vehicle side view right side view... -
Page 5: 03Function Of The Meter And Each Button
3 Function of the meter and each button Electric quantity display table function The percentage display and the real-time voltage display can be interconverted by pressing the function key ； Note: When the power meter shows the following conditions，Please charge in time ：... - Page 6 Button The battery meter ① High and low speed switch ② “ ” “ ” Press this , Enter high speed mode；Press this ,Enter low speed mode. ③ Horn switch Press this switch, the horn is on, and the switch will automatically reset after the finger left the button；...
- Page 7 ⑦Telecontroller...
-
Page 8: Use And Charge Of Battery
4 Use and charge of battery Battery installation and use ㈠Place the battery in the battery box（bottom①） ㈡Connect the four batteries with wires in turn （see right upper figure③） ㈢Connect the positive and negative leads on the charging seat（④）to the positive and negative electrodes on both ends of the battery pack ㈣Finally, attach the battery case cover to the battery case bottom with four bolts. -
Page 9: Battery Maintenance
· If the battery has a strange smell,heat, deformation during use, please stop using it immediately and contact our after-sales personnel for inspection and repair. Battery maintenance · If you don’t use your battery for along time, please charge your battery regularly to keep the power above 50%. -
Page 10: Check Before Riding
5 Check before driving Warning: If the vehicle is not properly inspected and maintained, it will increase the chance of accidents or damage to components. Once any problem is found, you must not ride the vehicle. If the problem cannot be solved in this manual, please find the nearest service outlet for repair and inspection。... -
Page 11: Preparation Before Driving
6 Preparation before driving ①After the driving position, fasten the safety belt, helmet and protective clothing. ②After you insert the power key, go to the “.” position . ③Press the shiftr switch to the "D" or “R” position Note：In this case, the vehicle cannot be run normally. ④Press the brake with your foot (remove the P gear setting), then release the brake pedal, press the accelerator pedal, so that the vehicle can run normally. -
Page 12: Regular Inspection, Maintenance And Repair
7 Regular inspection, maintenance and repair Users are advised to have the go-kart checked and maintained on a regular basis, even for the go-kart that are not used for a long time. Users are advised to have their go-kart checked 2 months after purchased or ... -
Page 13: Storage Method
②Failures and solutions of the motor gear oil Maintenance and replacement ③ Oil type：75W oil capacity：130ml Maintenance and replacement：The first ride is 2,000 km or three month , and then the gear oil every 5,000 km or six month . Warning: Used oil must be disposed of at a proper collection center 8 Storage method... -
Page 14: 09Electrical Schematic Diagram
Warning: Please take out the battery from the go-kart when long-term storage. 9 Electrical schematic diagram... -
Page 15: Vehicle Specification Table
10 Vehicle Specification Table information Model Blazer EV information Model Blazer EV generator nominal BM1418HQF style voltage 500W48V service rated 20AH voltage capacity battery Max. power Charging 1200W 0℃～40℃ temperature rated speed Discharge -15℃～ 3800rpm temperature 40℃ rated current Dry weight 102kg idle speed 259mm... - Page 16 information / 40HQ battery model battery 6-DZF-12...
