Follett KLOPPENBERG DISP-500-IND Manual

Follett KLOPPENBERG DISP-500-IND Manual

Hide thumbs

Advertisement

Table of Contents

DISP-500-IND
Manual
2627 West Oxford Avenue, Englewood, Colorado 80110 ● (303) 761-1615 ● www.kloppenberg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KLOPPENBERG DISP-500-IND and is the answer not in the manual?

Questions and answers

Related Manuals for Follett KLOPPENBERG DISP-500-IND

Summary of Contents for Follett KLOPPENBERG DISP-500-IND

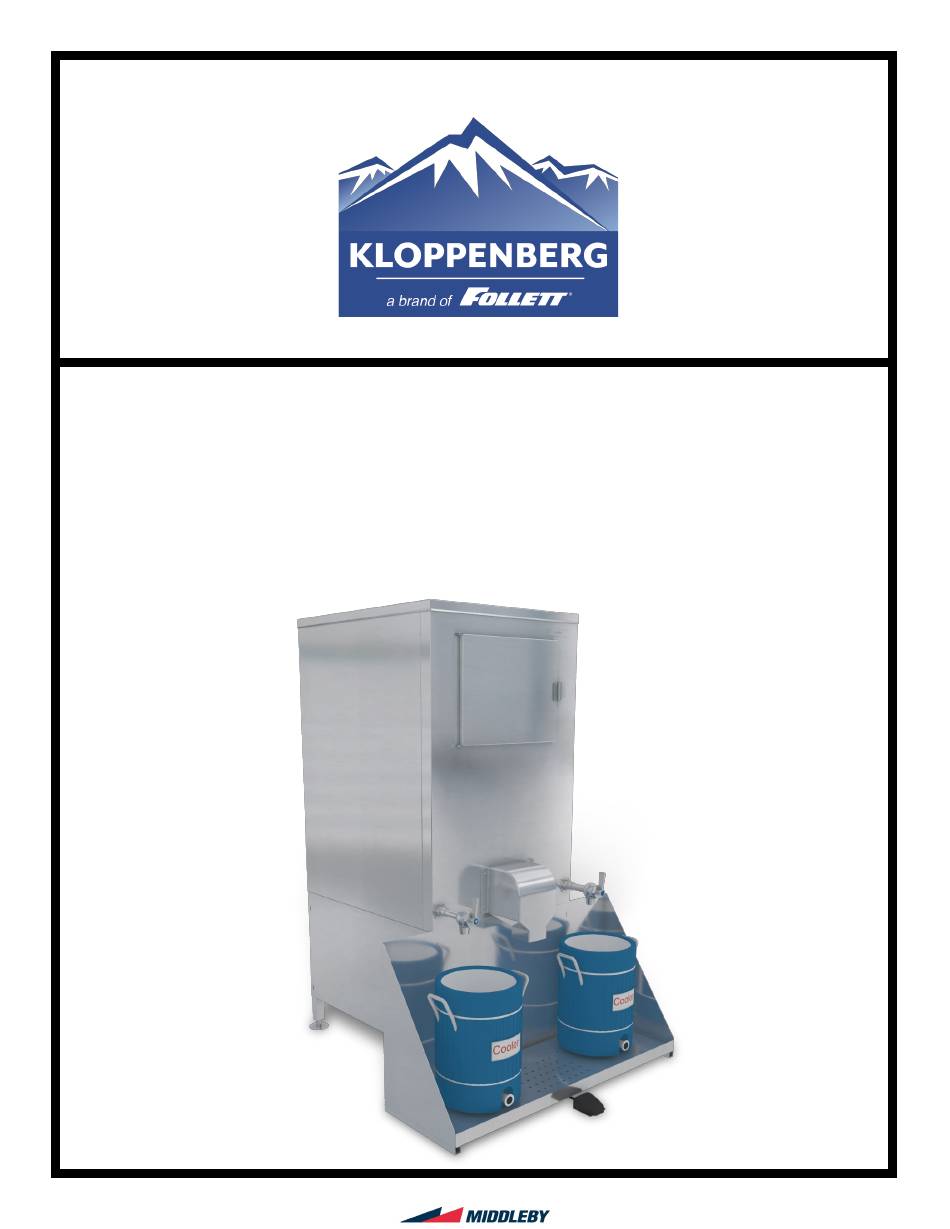

  • Page 1 DISP-500-IND Manual 2627 West Oxford Avenue, Englewood, Colorado 80110 ● (303) 761-1615 ● www.kloppenberg.com...
  • Page 2 PARTS 2627 West Oxford Avenue, Englewood, Colorado 80110 ● (303) 761-1615 ● www.kloppenberg.com...
  • Page 3 Number Part Number Part Description 4030010 Shovel Door Assembly 4030045 Extrusion Kit - Shovel Door - Poly Liner 4030006 Shovel Door Latch Assembly 4030002 Shovel Door Hood Baffle Assembly Toll Free Phone: 1-800-346-3246 4080025 Bagger / Drip Tray Assembly www.kloppenberg.com 3080027 Bag Catch False Bottom 4080016...
  • Page 4 Number Part Number Part Description 2400080 Large Sprocket 2400079 Small Sprocket 4080015 Large Chain - 49" 4080015 Small Chain - 33" Toll Free Phone: 1-800-346-3246 2400078 Chain Tensioner www.kloppenberg.com 2400083 Flange Bearing 2400088 Gear Reducer 2400066 1/2 HP Motor DISP-500-IND 4080005 Agitator Assembly 4080006...

  • Page 5: Electrical Parts

    Number Part Number Part Description 4080011 Power Relay 2400076 Fuse - 2Amp, 250V, AGC Series 4080013 Door / Chain Cover Safety Switch Toll Free Phone: 1-800-346-3246 1800030 Transformer 120v Input 24v Output 1800009 Power Supply Cord 8’ www.kloppenberg.com DISP-500-IND (Electrical) Parts 2627 West Oxford Avenue, Englewood, Colorado 80110 ●...
  • Page 6 Number Part Number Part Description 4030010 Shovel Door Assembly 4030045 Extrusion Kit - Shovel Door - Poly Liner 4030006 Shovel Door Latch Assembly 4030002 Shovel Door Hood Baffle Assembly Toll Free Phone: 1-800-346-3246 4080025 Bagger / Drip Tray Assembly www.kloppenberg.com 3080027 Bag Catch False Bottom 4080016...
  • Page 7 Number Part Number Part Description 2400080 Large Sprocket 2400079 Small Sprocket 4080015 Large Chain - 49" Toll Free Phone: 1-800-346-3246 4080015 Small Chain - 33" 2400078 Chain Tensioner www.kloppenberg.com 2400083 Flange Bearing 2400088 Gear Reducer 2400066 1/2 HP Motor DISP-500-IND-TF 4080005 Agitator Assembly 4080006...
  • Page 8 Number Part Number Part Description 4080011 Power Relay 2400076 Fuse - 2Amp, 250V, AGC Series 4080013 Door / Chain Cover Safety Switch Toll Free Phone: 1-800-346-3246 1800030 Transformer 120v Input 24v Output www.kloppenberg.com 1800009 Power Supply Cord 8’ DISP-500-IND-TF (Electrical) Parts 2627 West Oxford Avenue, Englewood, Colorado 80110 ●...

  • Page 9: Installation

    INSTALLATION 2627 West Oxford Avenue, Englewood, Colorado 80110 ● (303) 761-1615 ● www.kloppenberg.com...
  • Page 10 Remove Bin, Drain Pan and Contents from the transport packaging Peel PVC film from the front panel, shovel door & drain pan (Shown in red). Save all packaging until machine is installed and running properly. Position dispenser into desired location care- fully to not damage legs or any functioning parts on the front, back, side or under the bin.
  • Page 11 Remove the chain guard using a Phillips head screw driver. The guard is attached in 4 loca- tions shown the figure . Connect 1” tubing to the copper drain pipe shown above. Connect 1” tubing to the drain nipple on the back of the drain pan.
  • Page 12 Make sure all chains, tensioners, sprockets, drive shafts, agitators and auger are properly attached. Attach chain cover. Plug dispensers in to a 115v plug running on a dedicated 20-amp circuit. An ice machine and dispenser plugged in on the same circuit will trip the breaker.
  • Page 13 SERVICE 2627 West Oxford Avenue, Englewood, Colorado 80110 ● (303) 761-1615 ● www.kloppenberg.com...
  • Page 14 CLEANING AND SANITATION INSTRUCTIONS **NOTE** CHLORINE BASED CLEANERS MAY CAUSE CORROSION OF THE STAINLESS STEEL BEFORE USING ICE BIN Clean and sanitize all surfaces using a quaternary cleaner/sanitizer • STAINLESS STEEL & POLY LINER CLEANING PROTOCOL Bi-Monthly Cleaning • With a clean dry cloth, wipe down internal ice bin ceiling, doors, snouts, baffles •...
  • Page 15 TROUBLESHOOTING COMMON ISSUES ACTION(S) TECHNICAL/DESCRIPTION FUTURE PREVENTION ICE BRIDGING (NO ICE (1)USE PADDLE TO BREAK ICE AFTER BREAKING ICE PRESS FOOT Maintain ice levels, do not DISPENSING) USING SHOVEL DOOR FOR PEDAL ICE SHOULD NOW DISPENSE leave unused for long ACCESS periods of time, break ice SHEAR PIN ON DRIVE SHAFT MAY...

  • Page 16: Troubleshooting

    TROUBLESHOOTING MOTOR CONTANTLY CHECK FOOT PEDAL AND IF PEDAL OR CORD IS DAMAGED KEEP PEDAL & CORD OUT RUNNING CORD FOR DAMAGE CAN ACTIVATE SWITCH AND OF WALKWAY OR WHERE KEEP RUNNING DAMAGE CAN OCCUR IN ELEC BOX REMOVE AND DEPENDING ON AGE AND REPLACE USAGE MOTOR CONTACT...
  • Page 17 Shovel Door Hood Replacement Instructions *NOTE* Ice level should be below bottom of shovel door before removing the hood Removal Instructions 1. Disconnect power supply **For DISP Models ONLY** 2. Open shovel door 3. Locate thumb screws on the interior side of the shovel door (both left and right side about 2”...
  • Page 18 Shovel Door Replacement Instructions Tools & Parts needed: Vice grips Pliers Riveter/rivet gun Bushings (2) Replacement door Rivets (2) Dry fit door to determine fit, there is usually a slight gap between door and hinges. Using pliers gently bend tabs (top and bottom) on unit to shorten the distance, careful to not over bend which may cause the hinge to break (Figure 1)
  • Page 19 Shovel Door Replacement Instructions Using riveter/rivet gun squeeze tight applying enough pressure to keep rivet in place. (Figure 4) Figure 4 For bottom side remove vice grips to access hinge. Repeat step with bushing, rivet and riveter/rivet gun. (Figure 5) Once secure release and test door.

  • Page 20: Manufacturer's Warranty

    Manufacturer’s Warranty Obligations of Kloppenberg Products, LLC (“Kloppenberg”) are exclusively limited to the original purchaser / registered owner. Products must be registered with Kloppenberg within 30 days of installation. Kloppenberg warrants that it will repair or replace at its own expense any commercial ice bin of its manufacture bearing the name Kloppenberg due to a factory defect in material and/or workmanship occurring within the first twelve (12) months from the date of installation or eighteen (18) months from date of shipment providing, the ice bin has been installed, and...
  • Page 21 Limited Lifetime Warranty Kloppenberg Products, LLC (“Kloppenberg”) warrants to the original purchaser that it will repair or replace at its own expense and discretion the following lifetime product models. Warranty applies to factory defect in material and/or workmanship exclusive to the polyethylene liner and stainless steel bin cabinet: UPRIGHT MODELS 1045...
