Follett Horizon Elite D1010R Manual

Follett Horizon Elite D1010R Manual

Ice machine models with ride technology installation instructions for ice and beverage dispenser applications
Hide thumbs Also See for Horizon Elite D1010R:

Advertisement

Table of Contents

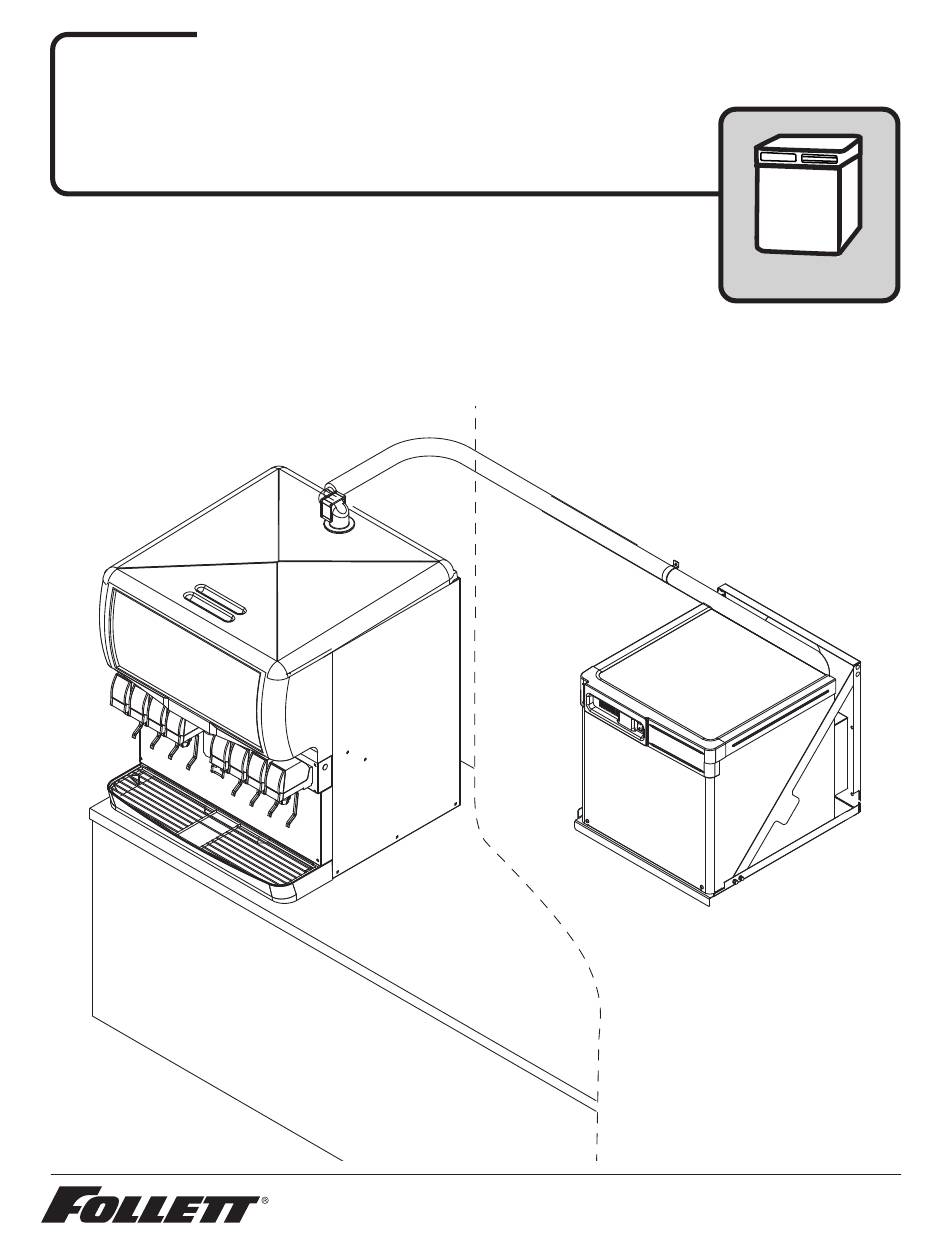

Horizon Elite
Ice Machine Models with RIDE
Technology
™
®
Installation Instructions for Ice and Beverage Dispenser Applications
D1010R, D1410R, D1412R, D1810R, D2110R
remote condensing
For applications using most countertop dispensers manufactured by
Cornelius • Lancer • Servend
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
01565092R00
www.follettice.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horizon Elite D1010R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Follett Horizon Elite D1010R

Summary of Contents for Follett Horizon Elite D1010R

  • Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ® Installation Instructions for Ice and Beverage Dispenser Applications D1010R, D1410R, D1412R, D1810R, D2110R remote condensing For applications using most countertop dispensers manufactured by Cornelius • Lancer • Servend 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
  • Page 2 CAUTION! § This appliance should be connected by a qualified person in accordance with applicable codes. § If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. §...
  • Page 3 Read and complete the following 8 installation steps Unpack Site preparation Dispenser preparation Docking assembly Ice transport tube External connection Internal connection Front cover Ice and Beverage • RIDE Technology remote condensing...
  • Page 4 Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack carton #1 ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ Ice and Beverage • RIDE Technology...

  • Page 5: Site Preparation

    Site preparation Prepare the installation site. Provide drainage, water supply and electrical power to within 6 feet (2m) of ice machine in accordance with local and national codes. Outdoor installation of low side is not recommended and will void warranty. Installation site requirements ➌...

  • Page 6: Dispenser Preparation

    Dispenser preparation Prepare the dispenser. Attention! The location of the hole in the dispenser top is dependent on the type of dispenser. Be sure to follow Step 3.1 for the appropriate dispenser. Hole location - Ice and Beverage Dispenser (Lancer, Cornelius or Servend) 30"...
  • Page 7 Top preparation Top preparation — – ˜ – • Remove protective tape from gaskets ➊ • Apply gaskets ➋ • Install shuttle actuator through dispenser top and secure with locking nut ➌ Top preparation — – • Screw 4" (102 mm) extension ➊...
  • Page 8 Agitation adjustments – CORNELIUS E-BOARD AGITATOR TIMER MOTOR ON TIME: SET TO 1 SECOND TIME TIME MOTOR OFF TIME: SET TO 1 HOUR Cornelius models ED, DB, DF, IDC and FLAVOR FUSION Adjust the agitation timer located on the Cornelius PC board to 1 second on, 1 hour off. Note: See Cornelius manual or call Cornelius Technical Service at 1-800-238-3600 for more information.
  • Page 9 Agitation adjustments – LANCER FS SERIES Initialization Screen (Boot Up Only) Lancer FS-16 Ver. 0.200 – Main Menu Sub-Catagory FS-16 Setup Brands Per Side Major/Minor V:1 L:2 R:1 FS-16 Setup Bonus Key Setup Config Bonus Key V:1 T:F M:S B:W FS-16 Setup Soda/Plain Water Cancel...
  • Page 10 Dispenser diverter plate overview – CORNELIUS ED, DF and DB SERIES 3.10 (Installation on next page) Single Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) Dual Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator...
  • Page 11 3.11 Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES GATE MOUNTING PLATE STORAGE HOPPER FLANGE EXTENDS INTO STORAGE HOPPER THROUGH GATE OPENING ICE DIVERTER ICE CHUTE COVER APPLY RTV TO THIS SURFACE TO SEAL TO HOPPER GATE MOUNTING PLATE 10-32 WASHER GASKET...

  • Page 12: Before Proceeding

    Docking assembly Install the docking assembly. BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting.

  • Page 13: Docking Station

    Undercounter installation requirements Top View ➌ ➊ 3.25" (83 mm) min. Access panel/ door on counter 22.25" min. (656 mm) 24" min. (609 mm No Lip ➋ DOCKING STATION • Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation.
  • Page 14 Transport tube Install the transport tube. Transport tube installation. Hot Water 160 F (71 C) 1/4" Ice transport tube tips • Insulate entire length of ice transport tube ➊ • Secure ice transport tube ➋ as needed to prevent dips and traps from forming. For long tube runs see guide on page 19.

  • Page 15: External Connections

    External connections Connect utilities to docking assembly. Water and flush drain ➊ Chassis drain plumbing - required ➋ ➌ Minimum 8" ➏ radius 2 ft. x 1" OD silicone tubing • Plug must be removed from John Guest 3/4" barb x 3/4" FPT fitting.

  • Page 16: Internal Connections

    Internal connections Connect docking assembly to ice machine. Water line Ice transport tube installation ➋ ➊ ➌ Mount water ➋ solenoid ➊ • Mount water solenoid to inside rear of • Slide ice machine into docking assembly docking assembly using one screw ➊...
  • Page 17 TDS switch Power cord HIGH CLEAN • Set the TDS switch on the electrical box: • Position plate into opening and secure with supplied screw HIGH: for extended service life LOW: for low-scale water Ice and Beverage • RIDE Technology remote condensing...

  • Page 18: Front Cover

    Front cover Install front cover to ice machine. Install condensing unit Install ice machine front cover ➋ ➊ ➊ • Slide ice machine cover over machine • Insert and tighten two screws through • Complete installation of condensing unit cover and into docking assembly ➋...
  • Page 19 Long tube run recommendations max. 2 ft (.6m) ➊ ➋ 1/4" • Pitch ice transport tube to allow melt water to drain towards ice machine ➊ • Secure insulated ice transport tube at least every 2 ft (0,6 m) to prevent dips or traps ➋...
  • Page 20 Maestro, Vision, Ice Manager, Horizon Elite are trademarks of Follett Products, LLC. Chewblet, RIDE, Follett are registered trademarks of Follett Products, LLC. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 01565092R00 www.follettice.com...

This manual is also suitable for:

Horizon elite d1410rHorizon elite d1412rHorizon elite d1810rHorizon elite d2110r
