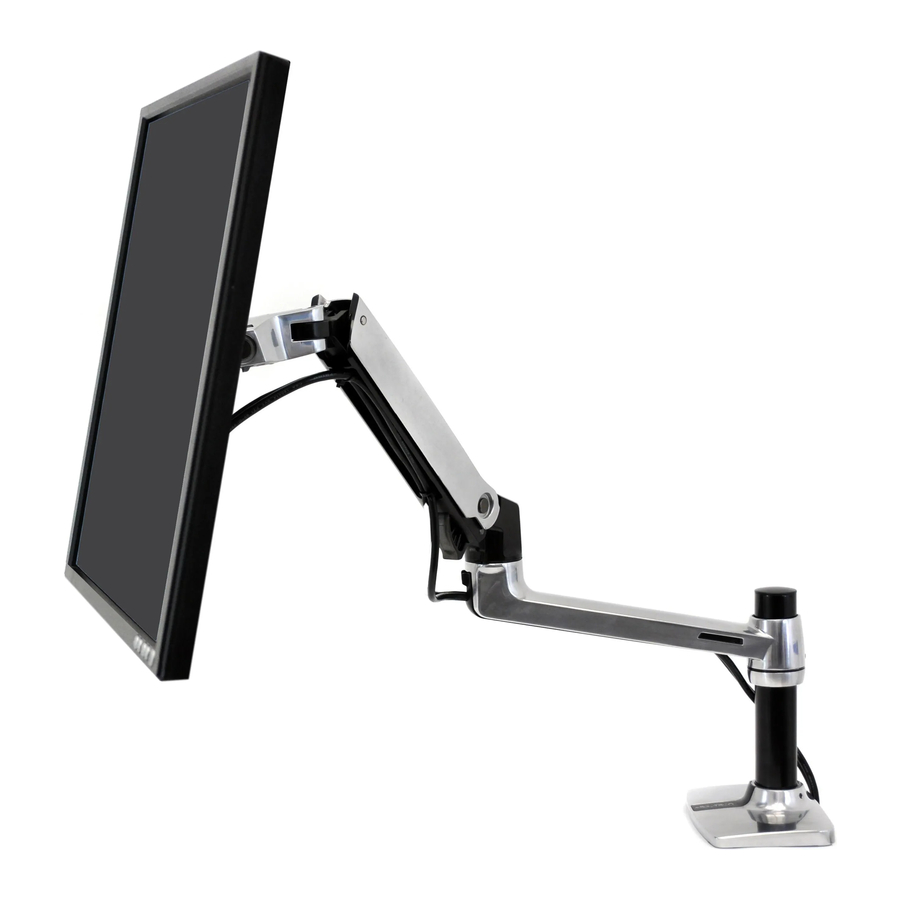

Ergotron LX Manual

What's in the box

NOTE: Product movements and spring adjustments may not work until mounted and all equipment has been attached.

Tools Needed

Desk Placement Options

Optional locking feature
(customer supplied lock)

ASSEMBLY

2. Rotate - Portrait/Landscape

   For 0° rotation, add screw.

3.

   Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or equipment damage!
5. Tilt

   First time may take more force.

7. Adjustment Step


   You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or difficult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your product and the adjustment, it may take many turns to notice a difference. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
8. Adjustment Step
   Lift - Up and down



   DO NOT overtighten fasteners. Overtightening may cause damage to your equipment.


   Increase Lift Strength
   If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase Lift Strength

   Decrease Lift Strength
   If the mounted weight is too light or this product does not stay down when lowered, then you'll need to decrease Lift Strength
9. Adjustment Step
   Tilt - Forward and Backward



   DO NOT remove screw. Removing screw may cause damage to equipment.


   Increase Lift Strength
   If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase Lift Strength

   Decrease Lift Strength
   If the mounted weight is too light or this product does not stay down when lowered, then you'll need to decrease Lift Strength
10. Adjustment Step
    Arm Swing — Side-to-side



    DO NOT remove screw. Removing screw may cause damage to equipment.


    Increase Friction
    If this product moves too easily, then you'll need to increase friction

    Decrease Friction
    If this product is too difficult to move, then you'll need to decrease friction

Yup, that's it. Really.
Now your LX Arm is ready for however you work best.

Learn more about ergonomic computer use at: www.ergotron.com/ergonomics

Safety

Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.

Leave enough slack in cable to allow full range of motion.
To avoid the potential to Pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.

Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or equipment damage!

Optional Grommet Hole Mounting

Bolt must be centered in hole. For secure arm attachment and to avoid equipment damage, plate must make contact with underside of desk on both sides of the hole.

Weight Capacity:

DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
* The lower most range of motion for vertical lift is decreased up to 4.5" (114 mm) when arm is adjusted to hold over 201bs (9 kgs).

NOTE: When contacting customer service, reference the serial number.

For Warranty visit: www.ergotron.com/warranty
For Service visit: www.ergotron.com
For local customer care phone numbers visit: http://contact.ergotron.com

Scan code for installation videos and other support:
https://go.ergotron.com/45-295
