LaserPecker 3 Manual
![]()
Product Overview

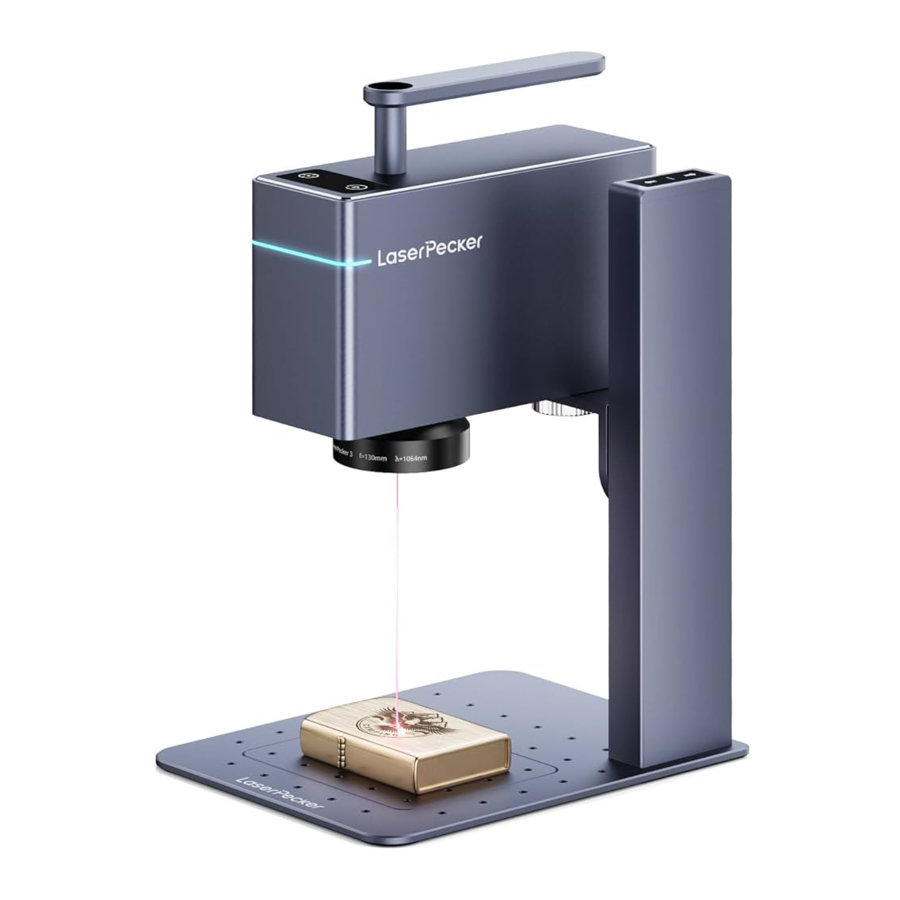

![LaserPecker - 3 - Product Overview Product Overview]()
Product Name: | LaserPecker |
Model: | L3-S |
Version Number: | 2022-11A |
![]()
Adjust the height of the electric stand so that the distance of the laser field lens is 130mm from the surface of the carved object. (The focal length of each machine will be slightly different, please refer to red light focal length for details).
Download APP
- Search for [LaserPecker] in APP markets such as Huawei App Gallery, Google Play Store, and Apple App Store to download:
![www.apple.com]()
![play.google.com]()
- Scan below QR code to download Laser-Pecker APP:
![]()
- Download the APP from our official website www.laserpecker.net.
Note: After installing the APP, please read the warnings and instructions in the APP carefully to ensure that the product is used correctly.
List of product accessories
![]()
Indicator of laser unit/electric stand
![LaserPecker - 3 - Buttons/ indicator - Indicator of laser unit/electric stand Buttons/ indicator - Indicator of laser unit/electric stand]()
- Preview button
- Short press to pause/long press to power off
- Laser unit indicator
- Red laser ranging dots
- Field lens and lens cover
- Long press for continuous rise or short press for 1mm rise
- Long press for continuous down or short press for 1mm down
Power ports
![]()
- Electric stand indicator light
- Computer (PC software) connection port
- Output port for the electric stand
- Output port for the versatile electric roller
- DC input port for the laser unit
- Positioning plate
- Input port of the electric stand
- Hold-down bolt
- Angle adjusting bolt
Quick installation instructions
Electric stand
- Assemble the electric stand
![LaserPecker - 3 - Installation - Electric stand - Step 1 Installation - Electric stand - Step 1]()
- Install the laser unit to electric stand connect to power supply and prepare to adjust height.
![LaserPecker - 3 - Installation - Electric stand - Step 2 Installation - Electric stand - Step 2]()
- Ranging methods:
- Ranging method 1: Ruler ranging
Place the engraved object, adjust the height of electric stand, and measure it with a ruler, so that the bottom of machine is 130mm from engraving surface.
- Ranging method 2: Ranging by focusing dots
Place an object on the roller, adjust the height of the stand till the two focusing dots overlap and become one, then start engraving.
Tilted engraving
Loosen the angle adjusting bolt, adjust the laser unit to a proper angle, and then tighten the bolt to fix the laser unit for tilted engraving.
![LaserPecker - 3 - Installation - Tilted engraving Installation - Tilted engraving]()
Handheld engraving
Hold the handle of the machine directly and aim at the surface of the object to be engraved.
Shiny blue: Device waiting for Bluetooth connection.
![LaserPecker - 3 - Installation - Handheld engraving Installation - Handheld engraving]()
Bluetooth connection
- Open the LaserPecker APP after powering the machine, and search for Bluetooth device.
- Shiny blue: Machine waiting for Bluetooth connection
Steady blue: Bluetooth connected
Streamer light: Data in transmission
Gradient light: In engraving
Supplementary instruction: machine maintenance
The dust filter on the machine back can be removed for cleaning
![LaserPecker - 3 - Supplementary instruction: machine maintenance Supplementary instruction: machine maintenance]()
Product specifications
Size | Laser unit: 162.5*60*122mm Electric stand: 194*153.5*236mm |
Weight | Laser unit: 1596G Electric stand: 942G Total weight: 2538G |
Laser source | 1064nm NICHIA |
Laser source output power | 1000mW |
Engraving area | 115mm*80mm (ellipse); 65mm*65mm (square); 115mm*2000mm (with versatile electric roller) |
Appearance | Anodic oxidation of aluminum alloy |
Document transmission | USB cable and Bluetooth wireless transmission |
Support document format | Mobile APP:JPG, PNG, G-code, BMP, SVG, DXF; PC Software: JPG, PNG, G-code |
APP connection mode | Bluetooth connection, USB connection |
APP operating system | Support iOS 9.0+, Android 7.0+, MacOS 10+, Windows 10+ |
Power input | DC(12V,5A), AC(100-240V, 50-60Hz) |
Operating temperature range | 0ºC-65ºC |
Operating humidity range | 5%~80% (Non-zero frost) |
Safety certification | IEC 60825-1, CE, ROHS, FCC, FDA,CDRH registration, NCC, KC, UKCA, TECLEC |
Patent application | Seven patents |
After-sales Service
- We offer global online technical support for this product. If you encounter any problems during your use, please feel free to contact us and we will respond to you as soon as possible.
- Email address: support@laserpecker.com
- Tel: +86 0755-28913864
- Wechat: Laserpecker002 (Working days 9:30-19:00)
Use safety guide
- Before starting the installation of LaserPecker 3, please first check that the equipment is intact and the laser mirror is clean.
- Installation specifications: Before operating LaserPecker 3, please secure the host referring to the Operation Manual (use the accessories with fixing function (protective cover, electric support and third shaft) to support the objects) to avoid falling due to unstable placement.
- Please power the equipment with the power and type (adapter with 12V5A) as indicated in the operation manual.
- Before starting the laser carving, please make sure to take safety protection measures, such as adding protective covers, wearing goggles to prevent eye or skin injury, removing irrelevant items to prevent unnecessary damage caused by laser irradiation, and especially removing flammable and explosive items to prevent fire.
- After starting the laser carving, do not move the equipment, so as not to cause the equipment to stop working due to self-protection, or even affect the final effect of the carving work because the carving objects are removed.
- To move the equipment or carved objects, please operate before the carving or after the carving is done. Do not move the equipment or items during the laser work.
- Because of the risks of laser, do not bring minors, children, and people with close to the equipment at work.
- Before carving objects using this product, please check that the carved object will not release toxic or harmful gas during the laser burning process to avoid poisoning accidents.
- If odor or smoke is found during the carving, please use the fan to blow away or place it in a spacious and ventilated place.
- Before carving objects using this product, review whether the carved objects have total reflection or diffuse properties. Special attention should be paid to the safety protection of such objects (it is suggested to carving after blackening the carved area with the whiteboard pen).
- Do not use LaserPecker 3 to directly illuminate the human body or pet skin and eyes, so as not to cause irreversible damage.
- Due to the limited power of LaserPecker2 laser components, it cannot carve metal, glass and other hard materials directly (some materials can be carved after blackening with a whiteboard pen or processing by heat transfer layer and heat transfer paper).
Precautions
- Please carefully read the [Use Safety Guide] and keep in mind for standard operation.
- This product does not contain any user-replaceable components. Do not attempt to remove LaserPecker or exclude the problem by yourself, regardless of the scenario.
- The working LaserPecker will emit laser. The beam is at risk of burns to the human skin; The damage is extremely serious for the eye parts of the human body or animal (pet). In addition, the screen damage to mobile phones and Pads is also extremely serious. The proper use and maintenance of this product are very important for the safe operation of this product. Please strictly follow the instructions in this manual for the operation and maintenance specifications of this product.
- Be sure to wear protective goggles throughout the operation of LaserPecker 3.
- Due to the specific nature of the laser module used in LaserPecker3, it is impossible to effectively engrave on wood and bamboo surfaces, Thus, when it is used for this type of materials, the desired engraving effect may not be achieved.
Warning
- Before operating LaserPecker 3 equipment, please carefully read the operation contents and strictly observe the operating procedures.
- This equipment uses four types of lasers (intense laser radiation), which may cause the following accidents:
- Light up the surrounding flammable materials;
- During the laser operation, other radiation, harmful gases, toxic gases or smelly gases may be produced due to different laser radiation objects;
- Direct exposure to laser emission may hurt human body. Therefore, the operator must keep a distance from the equipment, and wear protective equipment (such as goggles, protective covers, protective clothing or firefighting equipment, etc.). It is strictly prohibited to pile up flammable and explosive items around the workbench and equipment. The working environment must be kept well ventilated.
- There may be risks during the laser working process. The users should carefully consider whether the material of the carved object is suitable for laser operation.
- The working voltage of the equipment is 12V5A. It should be powered using the adapter of suitable specification. Operation during overload or voltage instability is strictly prohibited. Under the premise that the power supply (such as the patch board) used by the power plug of this product does not work effectively, the power supply cannot be connected, otherwise there will be a dangerous risk of electric shock.
- This product is internally equipped with precise and dangerous laser source components. The equipment is strictly prohibited to work near appliances with strong electromagnetic interference because this may cause electromagnetic interference. When the laser source is turned on, there will be laser emitted at the speed of light. The user must avoid direct exposure to the laser beam.
- It's strictly prohibited to place any irrelevant object of total reflection or diffuse reflection in the equipment, in case the laser may be reflected to human body or inflammables.
- Before carving objects using this product, please ensure that the emissions resulting from laser exposure to the carved objects meet the local laws and regulations.
