LaserPecker 3 User Manual

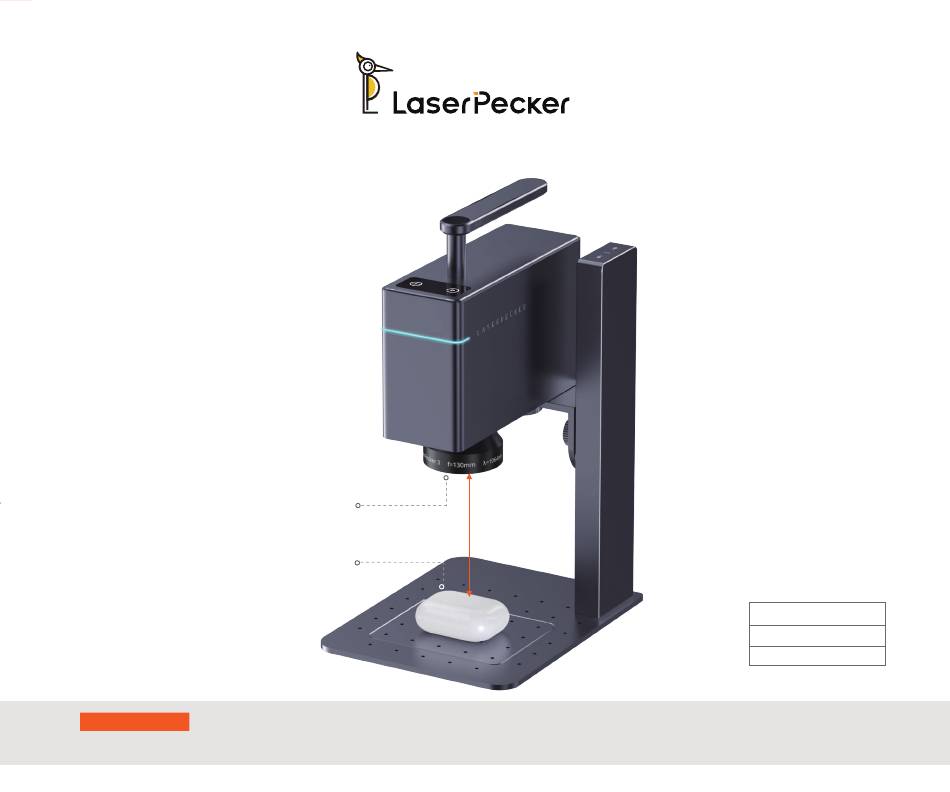

Field length surface
Material surface
Adjust the height of the electric stand so that the distance of the laser field lens is 130mm from the
Important notes
surface of the carved object. (The focal length of each machine will be slightly different, please refer
to red light focal length for details).
The focal
length is
130 mm
Product Name:LaserPecker
Model:L3-S
Version Number: 2022-11A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for LaserPecker 3

  • Page 1 LaserPecker 3 User Manual Field length surface The focal length is 130 mm Material surface Product Name:LaserPecker Model:L3-S Version Number: 2022-11A Adjust the height of the electric stand so that the distance of the laser field lens is 130mm from the Important notes surface of the carved object.
  • Page 2 Download APP After-sales Service Search for [LaserPecker] in APP markets We offer global online technical support for this such as Huawei App Gallery, Google Play product. If you encounter any problems during Store, and Apple App Store to download. your use, please feel free to contact us and we will respond to you as soon as possible.
  • Page 3 Contents /List of product accessories Field lens 01. List of accessories Laser unite 02. Button/indicator description 03. Quick Installation instructions 04. Bluetooth connection Power cord/power adapter Electric stand 05. Product specifications 06. Safety use instructions 07. Precautions USB cable*2 Goggles Ruler 08.
  • Page 4 8. Electric stand indicator light 2. Short press to pause/long press to power off 9. Computer (PC software) connection port 3. Laser unit indicator 10. Output port for the electric stand 4. Red laser ranging dots 11. Output port for the versatile electric roller 5.
  • Page 5 /Quick installation instructions - electric stand Assemble the electric stand Install the laser unit to electric stand, connect to power supply and prepare to adjust height. Tighten the bolt counter-clockwise...
  • Page 6 Ranging method 1: Ranging method 2: Ruler ranging Ranging by focusing dots Place the engraved object, adjust the height Place an object on the roller, adjust the height of the stand till the two focusing dots overlap and of electric stand, and measure it with a ruler, so become one, then start engraving.
  • Page 7 /Quick installation instructions Tilted engraving Loosen the angle adjusting bolt, adjust the laser unit to a proper angle, and then tighten the bolt to fix the laser unit for tilted engraving. Height should be 130mm Surface of the object...
  • Page 8 /Quick installation instructions Handheld engraving Hold the handle of the machine directly and aim at the surface of the object to be engraved. Shiny blue: Device waiting for Bluetooth connection. Surface of the object...
  • Page 9 /Bluetooth connection Shiny blue: Machine waiting for Open the LaserPecker APP after powering the machine, and search for Bluetooth Bluetooth connection device. Steady blue: Bluetooth connected Streamer light: Data in transmission Gradient light: In engraving Main indicator...
  • Page 10 Supplementary instruction: machine maintenance The dust filter on the machine back can be removed for cleaning Normal state Remove for cleaning...
  • Page 11 /Product specifications Size Laser unit: 162.5*60*122mm Electric stand: 194*153.5*236mm Laser unit: 1596G Electric stand: 942G Total weight: 2538G Weight Laser source 1064nm NICHIA 1000mW Laser source output power Engraving area 115mm*80mm (ellipse); 65mm*65mm (square); 115mm*2000mm (with versatile electric roller) Anodic oxidation of aluminum alloy Appearance Document transmission USB cable and Bluetooth wireless transmission...
  • Page 12 • Do not use LaserPecker 3 to directly illuminate the human body or pet skin and eyes, so as not to cause irreversible damage. • Due to the limited power of LaserPecker2 laser components, it cannot carve metal, glass and other hard materials directly (some materials...
  • Page 13 • The working LaserPecker will emit laser. The beam is at risk of burns to the human skin; The damage is extremely serious for the eye parts of the human body or animal (pet). In addition, the screen damage to mobile phones and Pads is also extremely serious. The proper use and maintenance of this product are very important for the safe operation of this product.
  • Page 14 2) During the laser operation, other radiation, harmful gases, toxic gases or smelly gases may be produced due to different laser radiation objects; 3) Direct exposure to laser emission may hurt human body. Therefore, the operator must keep a distance from the equipment, and wear protective equipment (such as goggles, protective covers, protective clothing or firefighting equipment, etc.).
  • Page 15 /Warranty terms • To the extent permitted by law, this warranty is exclusive and supersedes all other express or implied or legal warranty conditions (including in any case for a particular purpose, provided by the statute or any other circumstance), including, but not limited to, any liability derived the commodity suitable for a particular use.
  • Page 16 • The copyright of this manual is the right of the software and hardware involved in the product, which belongs to Shenzhen Hingin Co., Ltd. (hereinafter referred to as "Hingin"). LaserPecker is the registered trademark of Hingin. • The information in this manual may be changed without notice; The information in this manual does not constitute a commitment of the Company.
