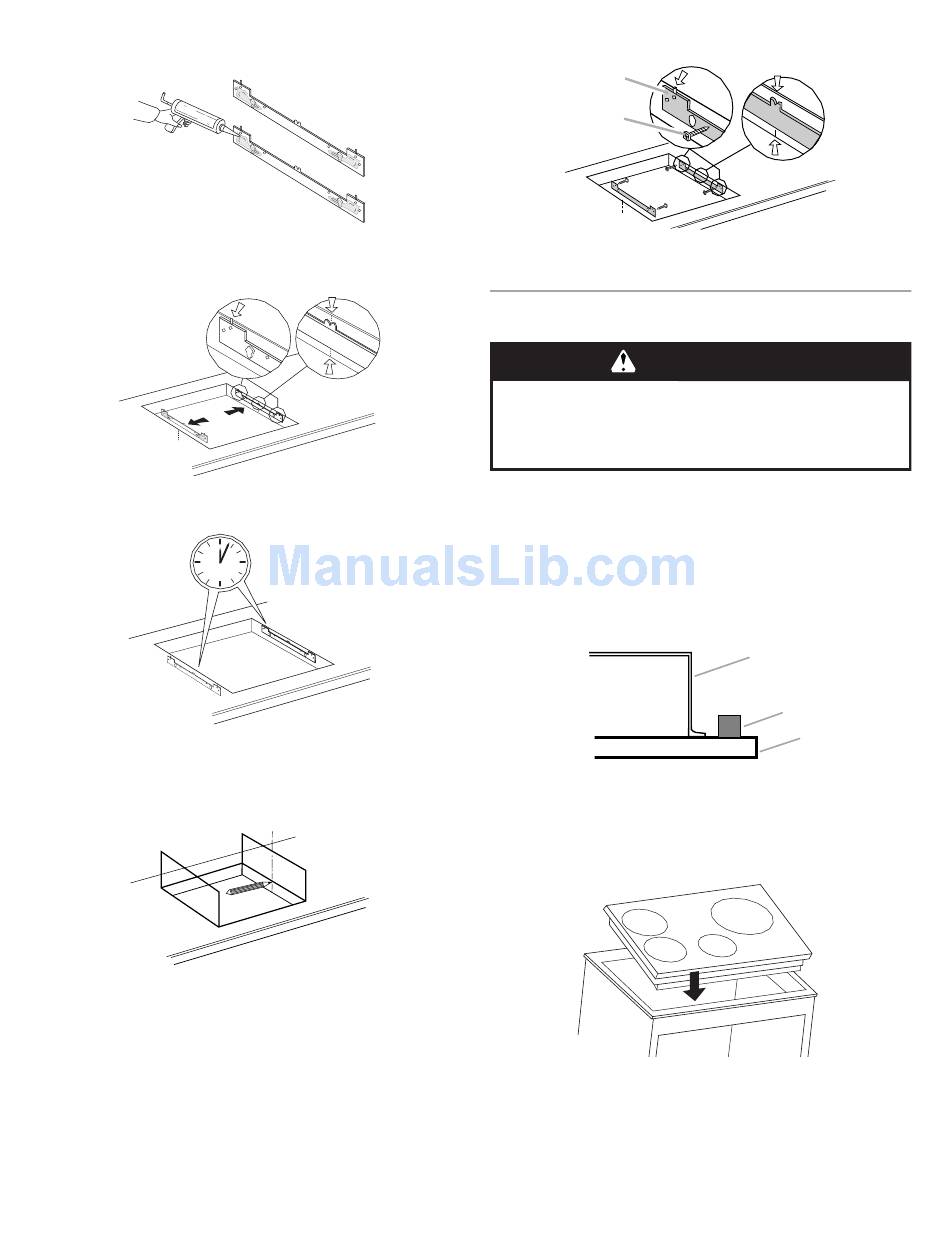

3. Apply the adhesive provided in the kit to the back side of the
brackets.
4. Position brackets in the center of the vertical centerline and
align the upper edge of the brackets so that they are flush
with the countertop.
5. Push the brackets firmly onto each side of the cooktop cutout
and wait 1 hour for adhesive to dry.
1 h
To Install Brackets into Wood Countertop:
1. Measure the center line of the vertical sides of the cooktop
cutout.
2. Position brackets in the center of the vertical centerline and
align the upper edge of the brackets so that they are flush
with the countertop.
Center line
3. Attach the brackets in the cutout with the screws provided.
A
B
A. Bracket
B. Screw

Install Cooktop

WARNING
Excessive Weight Hazard
Use two or more people to move and install cooktop.
Failure to do so can result in back or other injury.
1. Using 2 or more people, place the cooktop upside down on a
covered surface using the foam end posts from the
packaging.
2. Remove the foam roll from the package containing literature.
Apply foam adhesive-side down around the bottom of the
cooktop glass.
NOTE: The foam helps avoid damage to the underside of the
cooktop glass from debris and helps the cooktop sit flat on
uneven counters.
A. Cooktop base
B. Foam
C. Assembly glass
3. Lower the cooktop into the cutout with the front end of the
cooktop angled down.
A
B
C
