KitchenAid KICU568SBL0 Parts List

KitchenAid KICU568SBL0 Parts List

36" induction cooktop
Hide thumbs Also See for KICU568SBL0:
1
2
3
4

Advertisement

Table of Contents

See also: Use and Care Manual

COOKTOP PARTS

36" INDUCTION
COOKTOP
For Models: KICU568SBL0
(Black)
06−07 Litho in U.S.A. (jac)
1
Part No. W10131683 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KICU568SBL0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KICU568SBL0

Summary of Contents for KitchenAid KICU568SBL0

  • Page 1 COOKTOP PARTS 36" INDUCTION COOKTOP For Models: KICU568SBL0 (Black) 06−07 Litho in U.S.A. (jac) Part No. W10131683 Rev. A...

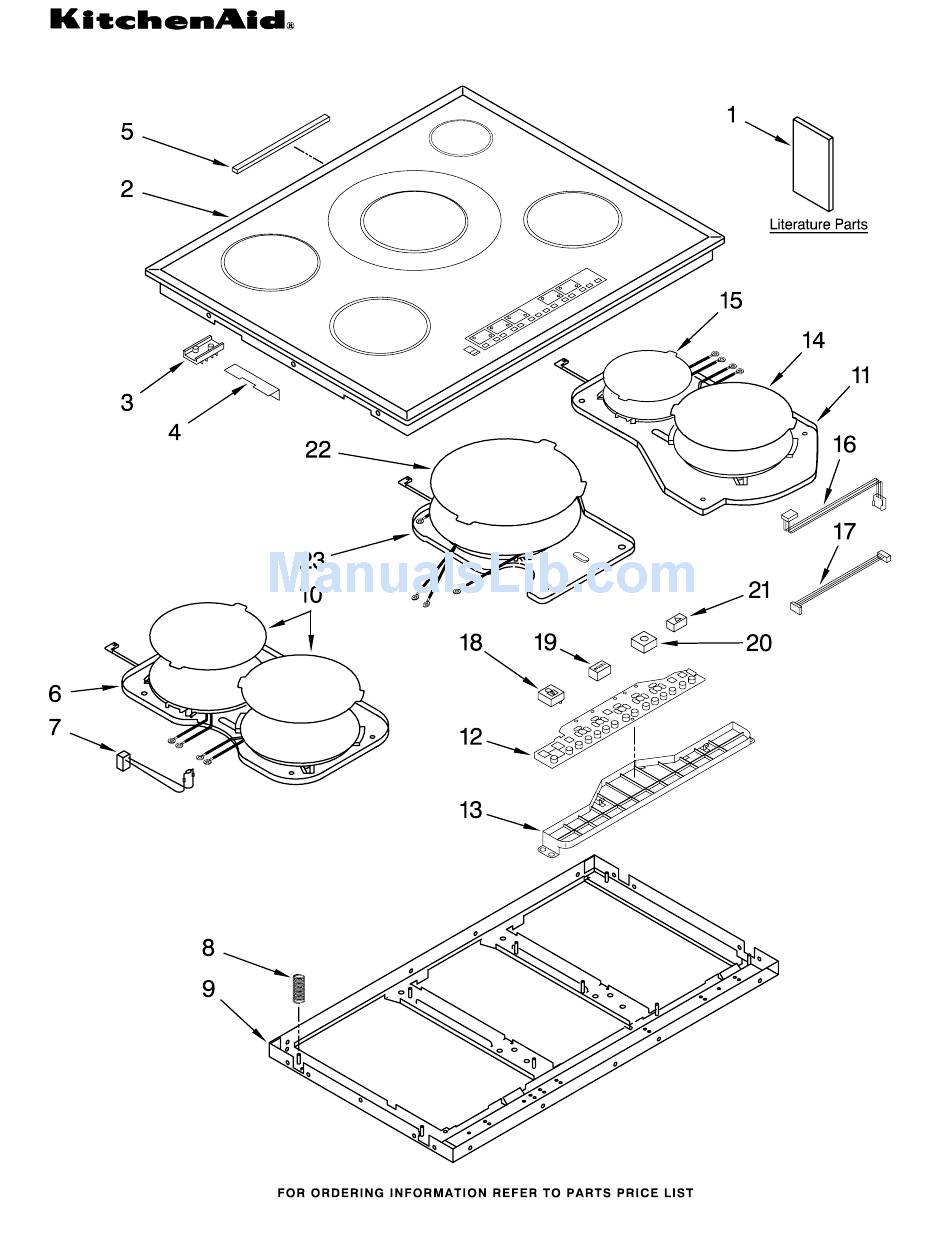

  • Page 2 COOKTOP PARTS For Models: KICU568SBL0 (Black) Illus. Part DESCRIPTION Literature Parts W10098720 Instruct, Install W10098710 Owners Manual 2 W10122346 Cooktop, Glass 3 W10122355 Bracket, Mntg(Kit) 4 W10122356 Bracket, Mntg(Kit) 5 W10122347 Seal 6 W10122332 Hotplate (180−180) 7 W10122353 Harness, Wire...
  • Page 3 INTERIOR PARTS For Models: KICU568SBL0 (Black) W10131683...
  • Page 4 INTERIOR PARTS For Models: KICU568SBL0 (Black) Illus. Part DESCRIPTION 1 W10122358 Cord, Power 2 W10122363 Fan, Blower 3 W10134543 Control, Elec 4 W10122364 Control, Elec 5 W10134545 Harness, Wire 6 W10122361 Harness, Wire 7 W10122375 Block, Fuse 8 W10122362 Bracket, Control...
