HARDWARE INSTALLATION
The ION-R100S can be placed on a flat surface, such as a desktop, or mounted via the available VESA mounting bracket. During installation,
ensure the unit is positioned to allow sufficient cable clearance and provide adequate airflow. It is recommended to connect the DC Power
after all other connections as the ION-R100S will begin booting up as soon as power is supplied.

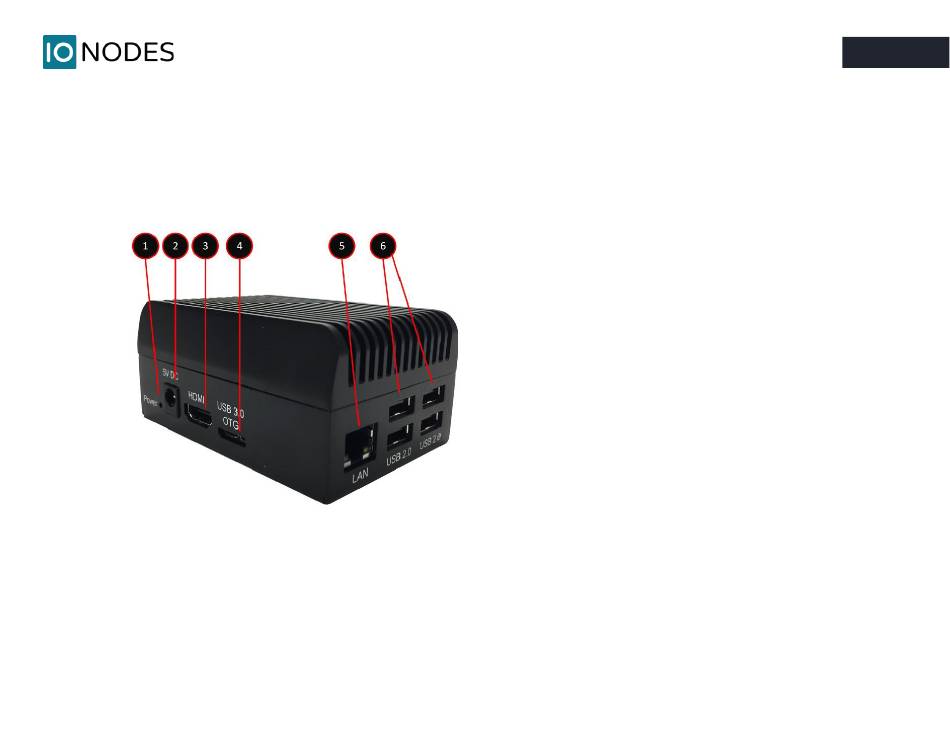

Connectors description
www.ionodes.com | support@ionodes.com
1. Power button (recessed)
2. DC Power IN
3. HDMI 1.4a
4. USB 3.0
5. 10/100/1000 Base-T Ethernet
6. 4x USB 2.0
2
