Summary of Contents for SunSynk SUNSYNK-3.6K-SG03LP1
Page 1

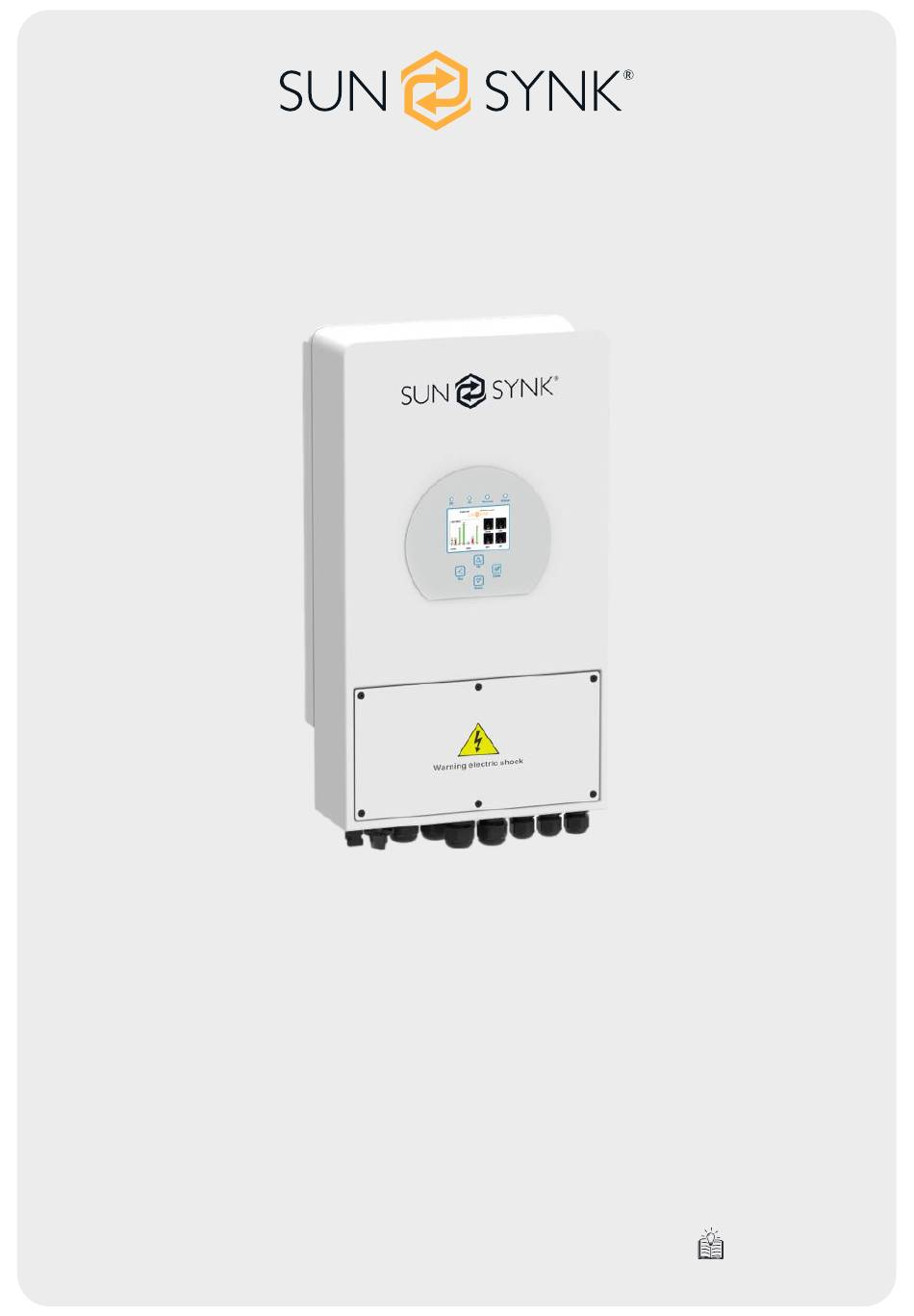

SINGLE-PHASE HYBRID INVERTER USER MANUAL SUNSYNK-3.6K-SG03LP1 SUNSYNK-5K-SG03LP1 www.sunsynk.com sales@sunsynk.com customerservices@sunsynk.com PLEASE RETAIN FOR v.41 (19/07/24) FUTURE REFERENCE...
Page 2
Table of Contents SAFETY System Flow Page Setup Page General Safety Basic Setup Symbols/Safety Signs Set Time (Clock) Safety Instructions Set Company Name / Beeper / Auto dim Product Disposal Factory Reset and Lock Code Inverter Remote Control PRODUCT INTRODUCTION Battery Setup Page Product Overview Generator &...
SAFETY General Safety This device should only be used in accordance with the instructions within this manual and in compli- ance with local, regional, and national laws and regulations. Only allow this device to be installed, oper- ated, maintained, and repaired by other people who have read and understood this manual. Ensure the manual is included with this device should it be passed to a third party.
Single Phase. Three Phase. Protective Conductor Terminal or Earth Rechargeable. Ground Terminal. Keep out of reach of children, animals, Do not submerge the battery in water or expose it to moisture or liquid. and insects. Do not expose the product to sunlight. Inverter DC to AC.
WARNING HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION. Sunsynk Single-Phase Hybrid Inverter can only be installed by a qualied licensed electrical contractor. This is not a DIY product. This chapter contains important safety and operating instructions. Read and keep this manual for future ...
PRODUCT INTRODUCTION This multiunctional inverter combines the unctions o an inverter, solar charger and battery charger to ofer uninterruptible power support with a portable size. Its comprehensive LCD display ofers user-congurable and easily accessible button operations such as battery charging, AC/solar charging, and acceptable input voltage based on diferent applications.
Product Features INTERACTIVE Easy and simple to understand display Supporting Wi-Fi or GSM monitoring Visual power ow screen Smart settable 3-stage MPPT charging for optimized battery performance Auxiliary load function Parallel / multi invert unction grid-tied and of-grid ...
Basic System Architecture The following illustration shows the basic application of this inverter. It also includes the following devices to have a Complete running system. Generator or Utility PV modules Consult with your system integrator for other possible system architectures depending on your requirements.
TECHNICAL SPECIFICATIONS Model SUNSYNK-3.6K-SG03LP1 SUNSYNK-5K-SG03LP1 Battery Input Date Battery Type Lead-acid or Li-Ion Battery Voltage Range 48Vd.c (40Vd.c ~ 60Vd.c) Max. Charging/Discharging Current 90Ad.c (max.) 120Ad.c (max.) Charging Curve 3 Stages / Equalization External Temperature Sensor Charging Strategy for Li-Ion Battery...
Page 11
Certications and Standards EN 50549-1, AS-NZS 4777.2, NRS 097-2-1; Additional connections Grid Regulation available upon request EMC/Safety Regulation IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 General Data Operating Temperature Range -40~60 ºC, >45 ºC Derating Cooling Smart cooling Noise <30 dB Communication with BMS RS485;...
INSTALLATION Parts List Check the equipment before installation. Please make sure nothing is damaged in the package. You should have received the items in the following package: SINGLE PHASE HI 3.6/5kW | User Manual...
Page 13
Selecting the Mounting Area This Hybrid Inverter is designed or outdoor use (IP65), DO NOT install the inverter in the ollowing areas: Areas with high salt content, such as the marine environment. It will deteriorate the metal parts and possibly lead to water/dampness penetrating the unit.
Install the indoor unit on the wall where the oor height is higher than 1600mm. For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm above and below the unit, and 1000mm to the front of the unit. WARNING For proper air circulation to dissipate heat, allow a clearance of approx.
Inverter Hanging Plate Installation Battery Connection For safe operation and compliance, a separate DC over-current protector or disconnect device is required between the battery and the inverter. Switching devices may not be required in some applications, but over-current protectors are still required. Refer to the typical amperage in the table below for the required fuse or circuit breaker size.
Page 16
WARNING All wiring/connecting must be perormed by qualied personnel. Beore making the nal DC connection or closing the DC Breaker/disconnection device, ensure the inverter unit is wired correctly. A reverse-polarity connection on the battery will damage the inverter. Please follow the below steps to implement battery connection: Please choose a suitable battery cable with the correct connector which can well t into the battery ...
Page 17
Function Port Defnition DIP Switch Inverter RS 485 / BMS 485 / DRMs METE R HM G-V G-S ATS240V parallel_1 parallel_2 RS 485/Meter: RS 485 port for meter 240V Coil communication. Neutral Earth Bond BMS 485/CAN: BMS 485 port for battery Batt Temp Gen start-up Sensor...
