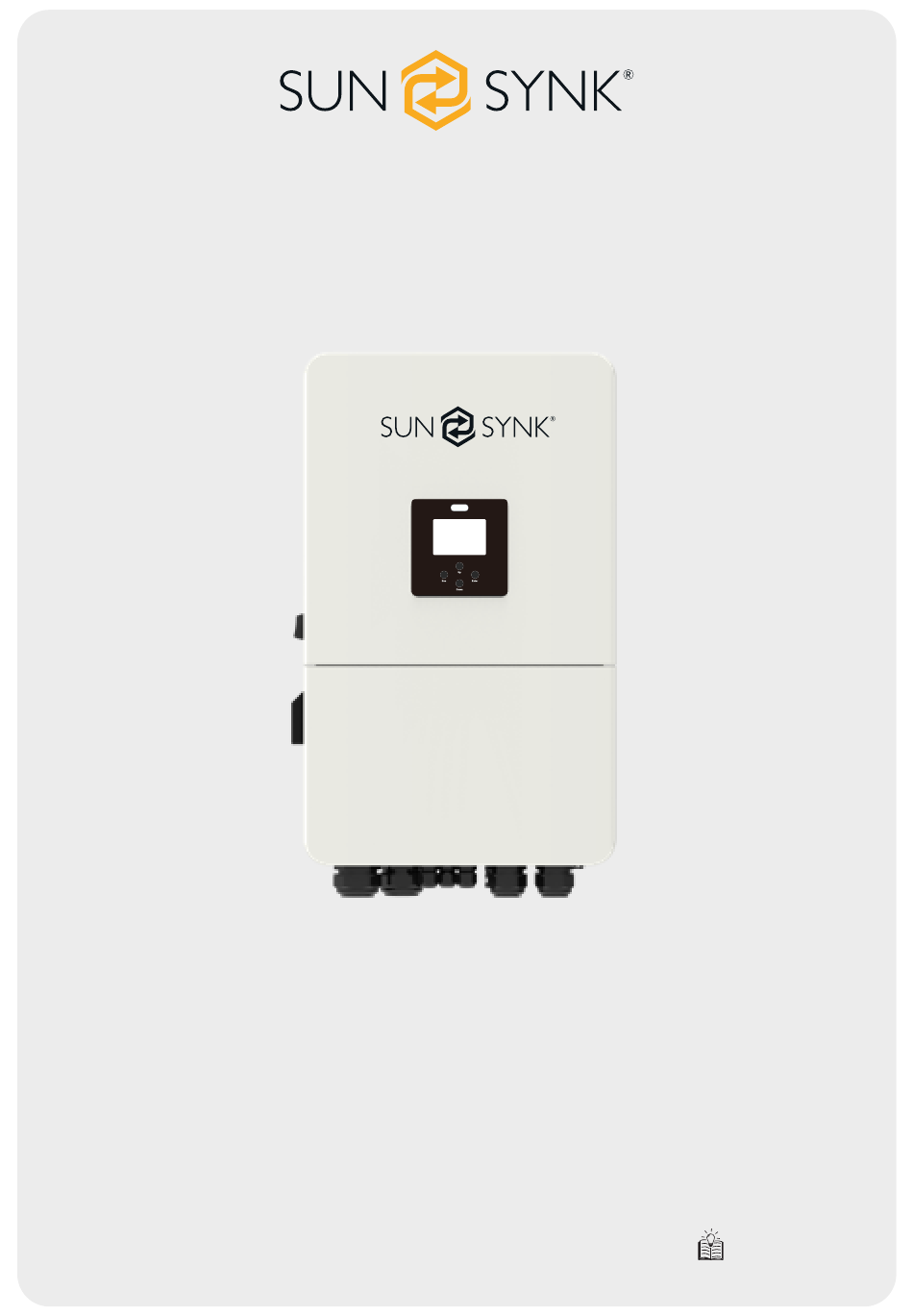

- Page 1 THREE-PHASE HYBRID INVERTER USER MANUAL SUNSYNK-20K-SG05LP3-EU-SM2 www.sunsynk.com sales@sunsynk.com customerservices@sunsynk.com PLEASE RETAIN FOR v.2 (03/02/25) FUTURE REFERENCE...
- Page 2 The manufacturer's warranty does not cover any damage resulting from the neglect of these instructions. Sunsynk assumes no liability for damage caused by the operation contrary to what is specified in this operating manual.
-
Page 3: Table Of Contents
Table of Contents SAFETY Setup Page Basic Setup General Safety Set Time (Clock) Symbols/Safety Signs Set Company Name / Beeper / Auto dim Safety Instructions Factory Reset and Lock Code Product Disposal Inverter Remote Control Battery Setup Page PRODUCT INTRODUCTION Generator &... -
Page 4: Safety
SAFETY General Safety This device should only be used in accordance with the instructions within this manual and in ƒ compliance with local, regional, and national laws and regulations. Only allow this device to be installed, operated, maintained, and repaired by other people who have read and understood this manual. Ensure the manual is included with this device should it be passed to a third party. - Page 5 Single Phase. Three Phase. Protective Conductor Terminal or Earth Rechargeable. Ground Terminal. Do not submerge the battery in water or Keep out of reach of children, animals, expose it to moisture or liquid. and insects. Do not expose the product to sunlight. Inverter DC to AC.
-
Page 6: Safety Instructions
WARNING HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION. Sunsynk Three-Phase Hybrid Inverter can only be installed by a qualified licensed electrical contractor. This is not a DIY product. This chapter contains important safety and operating instructions. Read and keep this manual for future ƒ... -
Page 7: Product Introduction
PRODUCT INTRODUCTION The Sunsynk Three-Phase Hybrid Inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. -
Page 8: Product Size
Product Size 456.0 750.0 798.4 475.0 290.5 268.5 THREE PHASE HI 20kW | User Manual... -
Page 9: Product Features
Product Features INTERACTIVE Easy and straightforward to understand LCD display; ƒ Supporting Wi-Fi or GSM monitoring; ƒ Visual power flow screen; ƒ Built-in 2 strings of MPP tracker; ƒ Smart settable 3-stage MPPT charging for optimised battery performance; ƒ Auxiliary load function; ƒ... -
Page 10: Basic System Architecture
Basic System Architecture The following diagram explains the basic application and architecture of this 3-Phase Inverter. It also includes the following devices to have a Complete running system. Generator or Utility ƒ PV modules ƒ Batteries ƒ Normal and smart loads ƒ... -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Model SUNSYNK-20K-SG05LP3-EU-SM2 Battery Input Date Battery Type Lead-acid or Li-Ion Battery Voltage Range 40Vd.c ~ 60Vd.c Max. Charging/Discharging Current 350A Charging Curve 3 Stages / Equalization External Temperature Sensor Charging Strategy for Li-Ion Battery Self-adaption to BMS PV String Input Data Max. - Page 12 Protection DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Integrated Monitoring, Ground Fault Current Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, Overvoltage Load Drop Protection, Residual Current (RCD) Detection...
-
Page 13: Installation
INSTALLATION Parts List Check the equipment before installation. Please make sure nothing is damaged in the package. You should have received the items in the following package: Stainless Steel Parallel Communication Hybrid Inverter Wall Mounting Bracket x1 Anti-Collision Bolt M8×80 Cable x1 SET ESC Battery Temperature... -
Page 14: Selecting The Mounting Area
Selecting the Mounting Area DO NOT install the inverter in the following areas: Areas with high salt content, such as the marine environment. It will deteriorate the metal parts and ƒ possibly lead to water/dampness penetrating the unit. Areas filled with mineral oil or containing splashed oil or steam, such as those found in kitchens. It will ƒ... -
Page 15: Installations Tools
For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm above and below the unit, and 1000mm to the front of the unit. ≥500mm ≥500mm Installations Tools Installation tools can refer to the following recommended ones. Also, use other auxiliary tools on site. Protective goggles Anti-dust mask Earplugs... -
Page 16: Mounting The Inverter
Mounting the Inverter Select installation locations that are adequate to support the weight of the converter. ƒ Install this inverter at eye level to allow the LCD to be read anytime. ƒ To ensure optimal operation, an appropriate ambient temperature is between -40 and 60°C. ƒ... -
Page 17: Battery Connection
Battery Connection For safe operation and compliance, an individual DC overcurrent protector or disconnection device is required to connect the battery and the inverter. Users are recommended to utilise a suitable fuse and DC isolator (see next page). Switching devices may not be required in some applications, but overcurrent protectors must be used. -
Page 18: Function Port Definition
Function Port Definition Inverter CN2: G_start: 1,2 G_valve: 3,4 Parallel_A Parallel_B Meter-485 CN1: TEMP: 1,2 Modbus Grid_Ry: 5,6 CT_1: 3,4 RSD: 7+, 8- CT_2: 5,6 1 2 3 4 5 6 7 8 CT_3: 7,8 1 2 3 4 5 6 7 8 Parallel A: Parallel communication port 1 (CAN interface). -
Page 19: Installations Instructions
Function Port Installations Instructions Wrap the wires three laps around the magnetic ring, then thread the end TEMP (1,2) of wires through the magnetic ring. CT_1 (3,4) Wrap the wires three laps around the magnetic ring, then thread the end CT_2 (5,6) of wires through the magnetic ring. -
Page 20: Lead-Acid Battery Temperature Sensor
Lead-Acid Battery Temperature Sensor Without a remote temperature sensor, lead-acid batteries may undercharge or overcharge depending on the ambient temperature of the installation environment. This may result in a fire hazard. Inverter Temp. sensor THREE PHASE HI 20kW | User Manual... -
Page 21: Ac And Backup Load Connection
AC and Backup Load Connection Before connecting to the main grid, please install a separate AC Breaker (MCB) between the inverter and the grid. In addition, it is recommended the installation of an AC Breaker between the backup load and inverter. This will ensure the inverter can be disconnected safely during maintenance and fully protect the system from over-current. - Page 22 GRID LOAD GEN LOAD GRID LOAD Wrap the wires of Load port one laps Wrap the wires of GEN port one laps around the magnetic ring, then thread the around the magnetic ring, then thread the end of wires through the magnetic ring. end of wires through the magnetic ring.
-
Page 23: Pv Connection
2. Switch the DC isolator OFF. 3. Assemble PV input connector to the inverter. 4. Use the MC4 connectors supplied by Sunsynk with the inverter. WARNING Please do not connect the PV array's positive and negative poles to the ground. This can seriously damage the inverter. -
Page 24: Cable Type
DC+ Male Connector DC- Female Connector Please utilise an approved DC cable for the PV system. Cross section Cable type Range Recommended value Industry generic PV cable 2.5~4.0 (12~10 AWG) 2.5 (12 AWG) (model: PV1-F) DC+ Male Connector DC- Female Connector DC+ Male Connector DC- Female Connector DC+ Male Connector... - Page 25 Do not mix or interconnect connectors from different manufacturers. The maximum allowable DC in- put current is 20A. Exceeding this limit may cause damage to the inverter, which is not covered under the Sunsynk warranty. THREE PHASE HI 20kW | User Manual...
-
Page 26: Connecting The Ct Coil
Connecting the CT Coil The CT coil is one of the most important parts of the Sunsynk inverter. This device reduces the power of the inverter to prevent feeding power to the grid. This feature is also known as “Zero Export”. -
Page 27: Meter Connection
Meter Connection CHINT Meter GRID GRID Ground Ground Inverter Inverter Parallel_A Parallel_BMeter-485 port Parallel_A Parallel_BMeter-485 port RS485A RS485A Three-Phase Smart Meter Three-Phase Smart Meter RS485B RS485B Three-Phase Smart Meter (1,4,7,10) (3,6,9,10) Three-Phase Smart Meter (1,4,7,10) (3,6,9,10) RS 485 RS 485 CHINT meter CHNT DTSU666 CHINT meter... -
Page 28: Earth Connection (Mandatory)
Pass the Meter communication cable through the magnetic ring and wrap it around the magnetic ring four times. Earth Connection (MANDATORY) Ground cable shall be connected to ground plate on grid side this prevents electric shock if the original protective conductor fails. Earth connection (Copper Wires) Model Wire Size... - Page 29 NOTE: Only for South Africa – Using a permanent PE/N bond on LOAD OUTPUT is recommended, and the supply power to the grid port needs to be taken from the mains before the main RCD to prevent RCD from tripping. The bond we recommend being done in the external box clearly marked “permanent PE/N bond“, and this has been advised by local authorities.
-
Page 30: Wiring System For Inverter
Wiring System for Inverter THREE PHASE HI 20kW | User Manual... -
Page 31: Wiring Diagram
Wiring Diagram THREE PHASE HI 20kW | User Manual... -
Page 32: Backup Load
Grid ③AC Breaker Home Load Backup Load ① AC Breaker for backup load SUNSYNK-20K-SG05LP3-EU-SM2: 100A AC breaker ② AC Breaker for grid SUNSYNK-20K-SG05LP3-EU-SM2: 100A AC breaker ③AC Breaker for home load Depends on household loads THREE PHASE HI 20kW | User Manual... -
Page 33: Typical Application Of Diesel Generator
Ground ②AC Breaker Battery pack (master) ①AC Breaker Battery pack (slave) ① AC Breaker for backup load SUNSYNK-20K-SG05LP3-EU-SM2: 100A AC breaker Backup Load ② AC Breaker for Generator port Remotely control signal line SUNSYNK-20K-SG05LP3-EU-SM2: 100A AC breaker Generator THREE PHASE HI 20kW | User Manual... -
Page 34: Three Phase Parallel Connection
Inverter ① ② No.2 (slave) Ground ①③⑤ AC Breaker for grid port ④ SUNSYNK-20K-SG05LP3-EU-SM2: 100A AC breaker ②④⑥ AC Breaker for backup load SUNSYNK-20K-SG05LP3-EU-SM2: 100A AC breaker ⑦AC Breaker for home load Depends on household loads ③ Inverter No.1 (master) Ground ⑥... -
Page 35: Operation
OPERATION Switching ON/OFF Once the inverter has been correctly installed and the batteries have been connected, press the ON/OFF button (located on the left side of the case) to activate the system. When the system is connected without a battery but connected with either PV or grid and the ON/OFF button is switched off, the LCD will still illuminate (display will show off). -
Page 36: Lcd Operation Flow Chart
LCD Operation Flow Chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Battery Page BMS Page HOME PAGE Load Page Load Graph Basic Setting Battery Settings Grid Settings System Mode System Setup Advanced Settings Aux Load Settings Fault Codes Li BMS Settings THREE PHASE HI 20kW | User Manual... -
Page 37: Home Page
Home Page Press the Esc button any page to access the home page: 1. Customer name 2. Access the settings menu page 3. Access solar page 4. Access load page 5. Access battery page SOLAR/TURBINE AC load 6. Access grid page 7. -
Page 38: System Flow Page
What this page displays: Total solar power produced. Inverter voltage. ƒ ƒ MPPT 1 power/voltage/current. Inverter current. ƒ ƒ MPPT 2 power/voltage/current. Load power. ƒ ƒ Grid power. Load voltage. ƒ ƒ Grid frequency. Battery power charge/discharge. ƒ ƒ Grid voltage. Battery SOC. -
Page 39: Setup Page
What this page displays: The system flow. Battery status. ƒ ƒ MPPTs power. Power distribution to load or grid. ƒ ƒ Essential Loads Setup Page To access Settings, click on the gear icon on the right top of the navigation menu. What this page displays: Serial number. -
Page 40: Basic Setup
Basic Setup Set Time (Clock) To set time, click on the BASIC icon and then on ‘Time’ What this page displays: Time. ƒ Date. ƒ AM/PM. ƒ What you can do from this page: Adjust / set time. ƒ Adjust / set date. ƒ... -
Page 41: Factory Reset And Lock Code
Locked Inverter: This function is used to lock the inverter completely so no access can be gained. It will ƒ ask for a 5-digit code that only the Sunsynk Technical staff can assist with. Test mode (only for engineers): For engineers to conduct tests. -
Page 42: Inverter Remote Control
Inverter Remote Control To control the inverter remotely, tick the box that allows it. What this page displays: Remote control option. ƒ What you can do from this page: Allows remote control of the inverter. ƒ Battery Setup Page To configure battery settings, click on the BATTERY icon and then on ‘Batt type’. What this page displays: Lithium: This is BMS protocol. -
Page 43: Generator & Battery Page
NOTE: Recommended: AGM and Flooded: Ah battery size x 20% = Charge/Discharge amps. Lithium: Ah battery size x 50% = Charge/Discharge amps. Gel: follow manufacturer' s instructions. Generator & Battery Page To configure battery charging settings, click on the BATTERY icon and then on ‘Batt Charge’. What this page displays: Amps: Charge rate of 40A from the attached generator in Amps. - Page 44 1Amp 12V. Below is a simple reference circuit of an auto-start system that can auto-start generators on a boat. (Sunsynk will be releasing a new OS E406 ( Auto-Start ) for better generator control).
-
Page 45: Battery Discharge Page
Battery Discharge Page To configure inverter’s shut-down settings, click on the BATTERY icon and then on ‘Shut Down’. THREE PHASE HI 20kW | User Manual... - Page 46 Activating Shutdown causes the inverter to enter standby-mode. It does not entirely shut down the inverter. Total shutdown occurs at voltages below 19V. The voltage displayed on the Sunsynk Parity Inverter will vary depending on whether the inverter is charging or discharging the batteries.
-
Page 47: Setting Up A Lithium Battery
State of Charge Bulk: The bulk charge is the first stage of a battery’s charging process, where the charger identifies the battery and its needs and then applies a high voltage to do the bulk of the charging. It involves about 80% of the recharge. - Page 48 NOTE: With some types of lithium batteries, the BMS cannot be controlled by the Sunsynk inverter. In this case, treat the battery as a lead-acid type and set the charging and discharging protocol following the battery manufacturer's specifications.
- Page 49 Inverter Brand Model Storage Notes or CAN Setup Inverter SS4074 SS4037 To be used with V2 Logger SS202 http://solarmd.co.za/invert- SolarMD er-compatibility-solarmd/ SS4143 sunsynk-and-solar-md/ SS4083 SS214 US2000B RS485 US3000 RS485 US2000C RS485 US3000C RS485 PYLON UP5000 RS485 US5000 RS485...
- Page 50 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter M4856-P Alpha Ess SMILE BAT BYD Battery-Box LV Flex Lite AU5500(UP3686) AU7500(UP5000) Greenrich AU9000(UP6100) AW7500(WM5000) SSRE-EU10K TB51100F-T110 TOPBAND TB51120-T110 4K4 LV Weco 5K3 LV GSL051100A-B-GBP2 GSL051200A-B-GBP2 GSL051280A-B-GBP2 GSL ENERGY...
- Page 51 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter BALANCELL PTN-BAT-05K-WM-LFP CANH = Pin 4 Photon (5KWh / 100Ah) CANL = Pin 5 ZR-FC48100-1630J1 ZR-FS4850-16OSJ1 ZRGP ZR-FS48100-16OSJ1 ZR-PBX1 U-P48200-7 U-P48100-7 U-P48150-1 L01-48100 DMEGC L02-48200 LR48100 Robuste ...
- Page 52 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter LM-JW-51.2V100Ah LEMAX LM-JW-51.2V200Ah CLR5KWH CLW5KWH CLR10KWH COOLI CLW10KWH CLH10KWH ESS10240 VOLTA STAGE1 VOLTA STAGE2 VOLTA VOLTA STAGE3 VOLTA STAGE4 EVO 5.7KWH 48V-120Ah Yoshopo BB-LFP-100Ah-P 51.2V 100Ah ...
- Page 53 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter Can be used with or with- BN52V-280-14.5K HC out BMAC https://www.bluenova. co.za/wp-content/up- BN52V-560-29K HC loads/2015/11/BN-User- Blue Nova HC Manual-HC_v102.pdf BN52V-840-43.6K HC BN52V-1120-58.2K HC CANH = Pin 7 BN52V-1400-72.8K HC CANL = Pin 8 BN52V-840-43.6K BR Blue Nova...
-
Page 54: Program Charge & Discharge Times
Program Charge & Discharge Times To set ‘Charge’ and ‘Discharge’ times, click on the ‘System Mode’ icon after clicking on the gear icon. What this page displays: 1. Use Export Controller: Tick this box to not export power back to the grid (the CT coil will detect power flowing back to the grid and will reduce the power of the inverter only to supply the local load). - Page 55 7. Grid peak shaving: When this is selected, the grid output power will be limited within the set value. If the load power exceeds the allowed value, it will take PV energy and stored battery energy to supplement. If there is not enough PV energy or stored energy to meet the load requirement, grid power will increase to meet the load needs.
- Page 56 Zero Export to CT: The hybrid inverter supplies power not only to the backup loads but also to the household loads. If solar and battery power are insufficient, the grid will provide the necessary supplement, but no power will be exported to the grid. A CT is required for this mode. Please refer to the "CT Connection" section for installation instructions.
- Page 57 Example 2: The solar power supplies non-essential loads while the inverter is set to a maximum power of 8 kW (Max Sell Power). Although the system is connected to the grid, no export occurs. To prevent reverse power flow, a small amount of grid power (100W Zero Export Power) is used.
-
Page 58: Grid Supply Page
Grid Supply Page In the Settings menu, click on the GRID icon. 220VAC 220VAC 220VAC Rz: Large resistance ground resistor. Or the system doesn't have a Neutral line. What this page displays: Grid Mode: General Standard - for example, EN50549_CZ_PPDS_L16A, NRS097, G98/G99. Please follow ƒ... - Page 59 What this page displays: HV1: Level 1 overvoltage protection point; HF2: Level 2 over frequency protection point; ƒ ƒ HV2: Level 2 overvoltage protection point; HF3: Level 3 over frequency protection point. ƒ ƒ HV3: Level 3 overvoltage protection point. LF1: Level 1 under frequency protection point;...
- Page 60 What this page displays: V(W): It adjusts the inverter active power according to the set grid voltage. ƒ V(Q): It adjusts the inverter reactive power according to the set grid voltage. This function adjusts ƒ inverter output (active and reactive) power when grid voltage changes. Lock-in/Pn 5%: When the inverter active power is less than 5% rated power, the VQ mode will not take ƒ...
-
Page 61: Paralleling Inverters Advanced Settings
NOTE: Only when the grid voltage is equal to or higher than 1.05 times the rated grid voltage will the P(PF) mode take effect. Paralleling Inverters Advanced Settings To configure multi-inverter settings, click on the ADVANCE icon. What this page displays: If the inverter operates as a master or a slave. - Page 62 The grid input can also be connected in parallel. ƒ If you need further help please refer to the Sunsynk website where you will find training videos and Frequently Asked Questions www.sunsynk.com. Firmware prior installation is important to be updated and all inverters in parallel or three phase system must be the same.
-
Page 63: Connecting The Drm's
Connecting the DRM’s This can be selected under advance settings. Inverter Load port Shell L1 L2 L3 N Ground cable Relay Ex_Meter For CT: When in a Three-phase system with a CHiNT Three-phase energy meter (DTSU666), ƒ click the corresponding phase where the hybrid inverter is connected. e.g. when the hybrid inverter output connects to A phase, please click A Phase. -
Page 64: Solar Power Generated
Solar Power Generated This page shows the daily, monthly, yearly, and total solar power produced. Access this page by clicking on the ‘Solar/Turbine’ icon on the Home Page. Grid Power This page shows the Daily / Monthly / Yearly and total grid power export or consumed. Access this page by clicking on the ‘Solar/Turbine’... -
Page 65: Advanced Settings For Wind Turbines
Advanced Settings for Wind Turbines To configure wind turbine settings, click on the ADVANCE icon. This is for Wind Turbine 16.5 What this page displays: If one or both of the MPPTs are connected to a wind turbine. ƒ What you can do from this page: Select the MPPT to be used as a turbine input. - Page 66 For Aux Load Output mode: Aux Load Output: This mode utilizes the Gen input connection as an output which only receives power ƒ when the battery SOC and PV power is above a user programmable threshold. For Example: Power=500W, ON: 100%, OFF=95%. When the PV power exceeds 500W, and battery bank SOC reaches 100%, Smart Load Port will switch on automatically and power the load connected.
-
Page 67: Operation Modes
OPERATION MODES Mode I: Basic AC Cable DC Cable COM Cable AC Cable DC Cable COM Cable Backup Load Backup Load Solar On-Grid Home Load Solar On-Grid Home Load Grid Battery Grid Battery Mode II: With Generator AC Cable DC Cable AC Cable DC Cable Solar... -
Page 68: Mode Iii: With Aux-Load
Battery Generator Mode III: With Aux-Load AC Cable DC Cable able Solar Backup Load On-Grid Home Load Grid Battery Smart Load Mode IV: AC Couple On-Grid+AC couple AC Cable DC Cable able Solar Backup Load Solar On-Grid Grid Home Load Battery Grid-Connected Inverter... -
Page 69: Mode V: Grid-Tied
The last power backup will be the Generator if it is available. WARRANTY For warranty details, please refer to the Warranty Statement suplyed by Sunsynk. Under our company's guidance, customers may return products for maintenance or replacement of equivalent value. Customers are responsible for shipping and associated costs. Any replaced or repaired product retains the remaining warranty period. -
Page 70: Fault Codes
4. Generally, it will desappear automatically when shows F13; 5. If still same, and turn off the DC switch and AC switch and wait for one minute and then turn on the DC/AC switch; 6. Seek help from Sunsynk. THREE PHASE HI 20kW | User Manual... - Page 71 1. Check the PV side cable ground connection; GFCI_Failure 2. Restart the system 2-3 times; 3. If the fault still existing, please contact Sunsynk. AC Slide over current fault. 1. Check if the backup load power is within the range of the Tz_Ac_Overcurr_Fault inverter.
- Page 72 Error Code Description Solutions 1. When in parallel mode, check the parallel communication cable connection and hybrid communication address settings. Parallel_Comm_Fault 2. During the parallel system startup period, inverters will report F29. When all inverters are in ON status, it will disappear automatically;...
-
Page 73: Fault Information
Error Code Description Solutions 1. It tells the communication between hybrid inverter and battery BMS disconnected when “BMS_Err-Stop” is active. Battery_comm_Lose 2. If don’t want to see this happen, you can disable “BMS_Err- Stop” item on the LCD. 3. If the fault still exists, please contact us for help 1. -
Page 74: Commissioning
Chapter ‘Technical Specifications’. If you need further help please refer to the Sunsynk website where you will find training videos and frequently asked questions www.sunsynk.com. -
Page 75: Inverter Commissioning Info
Inverter Commissioning Info After you have successfully powered up the inverter, it must be programmed and set up as per the programming feature above. Check each bond on the Check the VOC does not Ensure both MPPTs are solar panels exceed 480V balanced If it falls out of the setting... - Page 76 APPENDIX A Definition of RJ45 Ports Color RS485 Meter Modbus Port Orange&White 485_B Meter-485_B Modbus-485_B DRM1/5 Orange 485_A Meter-485_A Modbus-485_A DRM2/6 Green&White GND_COM GND_485 DRM3/7 Blue CAN-H Meter-485_B DRM4/8 Blue&White CAN-L Meter-485_A REF-GEN/0 Green GND_485 GND_COM GND_485 GND_LCD Brown&White 485_A Meter-485_A Modbus-485_A NetJ1_7...
- Page 77 Instantaneous APPENDIX E The Sunsynk inverter can be connected to the internet, but you need to add a data logger to do this. The inverter is compatible with Sunsynk Connect data-logger, which you can obtain from us with your distributor 1.
- Page 78 Room 702-704, 7/F Texwood Plaza, 6 How Ming Street, Kwun Tong, Kowloon, Hong Kong Sunsynk UK Ltd, 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN Unit 2, 3 & 4, 80 Highview Blvd, Ferndale, Randburg, 2160, South Africa...
