INSTALLATION
RCI 3510LM
CABINET LOCK WITH LATCH MONITOR
ELECTRIC LOCK FOR SMALL ENCLOSURES
1. Connecting wire must be of sufficient gauge to prevent line loss.
The 3510LM Cabinet Lock operates on either 12 or 24 VAC/DC
For 12 volt operation: connect a wire jumper from terminal 1 to 2 and also from terminal 3 to 4.
For 24 volt operation: connect one wire jumper from terminal 2 to 3.
2. With voltage jumpers installed, connect the positive (+) lead from the power supply to terminal 1.
Connect the negative(-) lead from the power supply to terminal 4.
For DC voltage, the supplied diode must be connected across terminals 1 and 4.
For AC voltage, terminal 1 and 4 connections are not polarity conscious. The diode is not required.
3. The latch monitor feature indicates whether the door is closed/locked or open/unlocked.
The monitor switch contacts are rated 1 Amp @ 25V maximum.
Connect terminals 5 or 6 and 7 to suit N/O or N/C monitor requirements.
-
+
Operating Voltage
Amps
IS3510LM

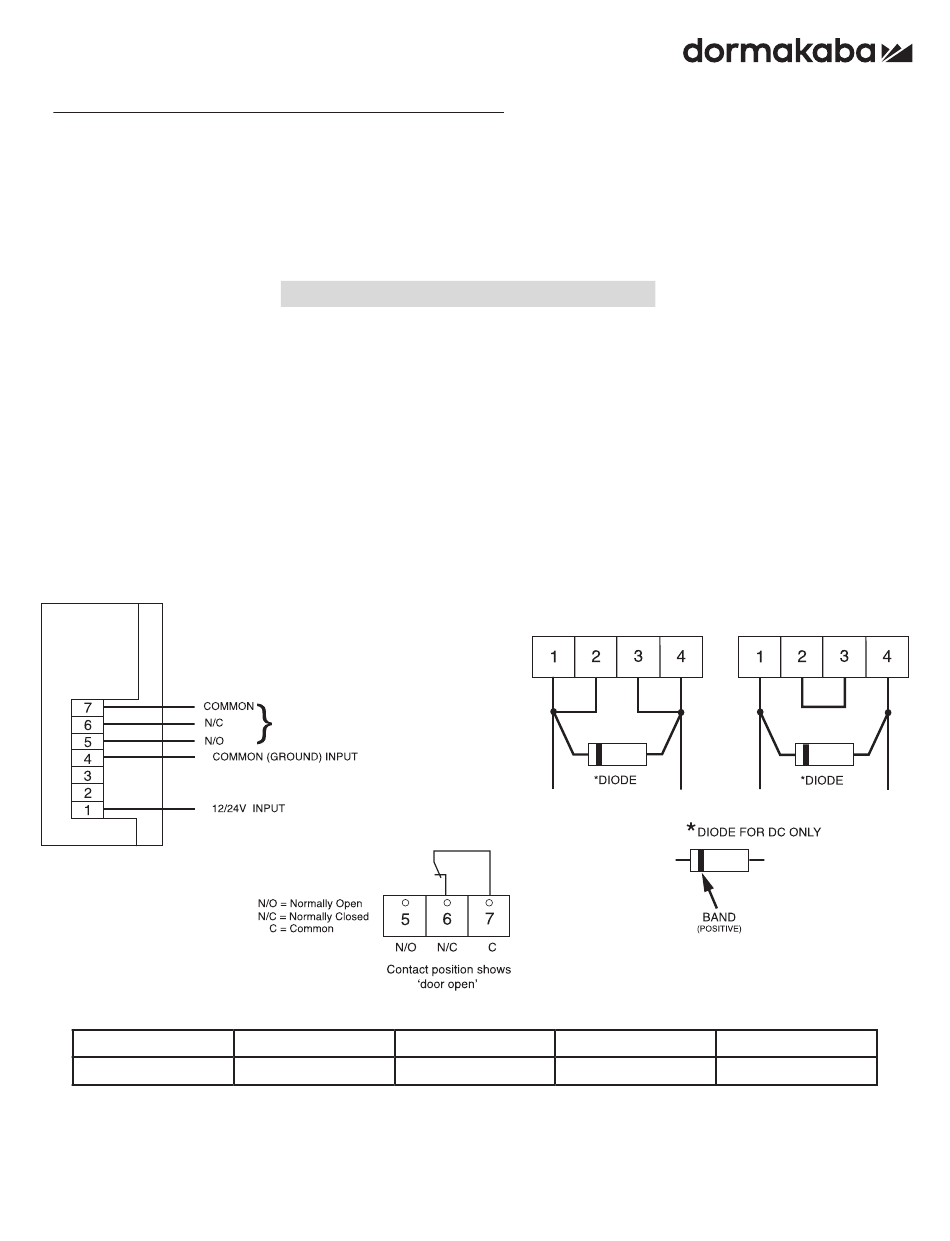

WIRING INSTRUCTIONS
NOTE: This lock requires some sort of external control.
LATCH MONITOR SWITCH
OUTPUT CONTACTS RATED
1 AMP @ 25V
LM FEATURE
12VDC
0.25A
© 2022 dormakaba Canada Inc
www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com
12V JUMPER
CONNECTION
+
12VAC 24VDC
0.25A 0.12A
24V JUMPER
CONNECTION
_
+
24VAC
0.12A
R10-22GR-1
