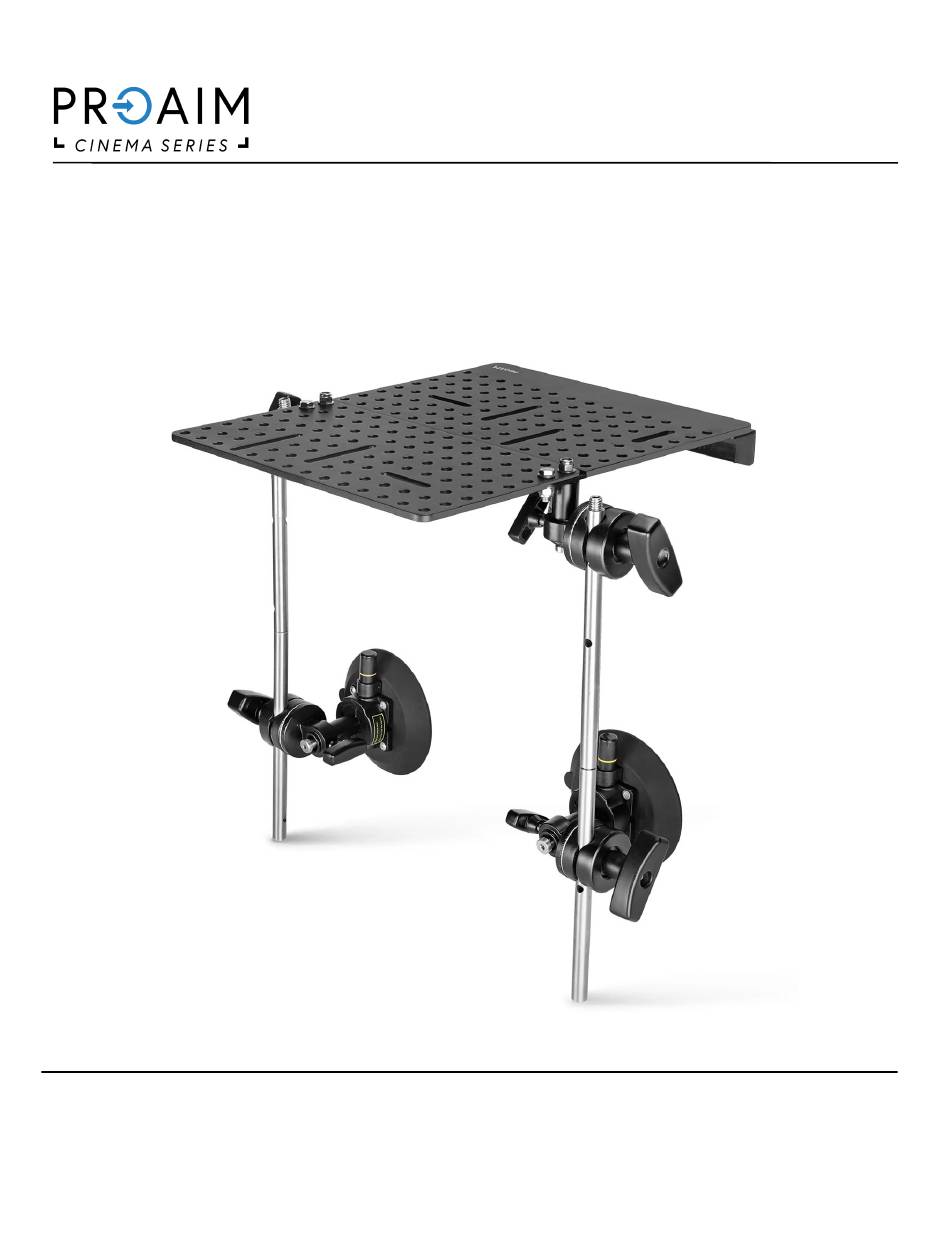

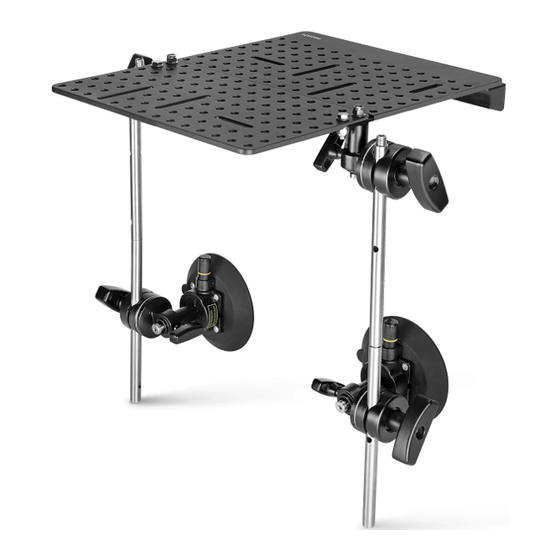

Hostess Tray Kit - Car Mount Camera Rigging
(CM-HTTY-01)
A s s e m b l y M a n u a l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for PROAIM CM-HTTY-01
Summary of Contents for PROAIM CM-HTTY-01
- Page 1 Hostess Tray Kit - Car Mount Camera Rigging (CM-HTTY-01) A s s e m b l y M a n u a l All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
-
Page 2: What's In The Box
What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. 2 x Hostess Trays 6 x SS Male & Female Rods (1 Big Cheese Tray & 1 Extension Tray) 2 x Baby Pins (5/8”) 2 x Suction Cups (6”) (with Nuts &... -
Page 3: Table Of Contents
INDEX Sr. No Particulars Page No. Dimensions Hostess Trays Assembly 5/8” Baby Pin Mounting Hex Bolts (8x25mm) Mounting Grip Head Mounting Connecting Male and Female Rods Male & Female Rods Mounting Grip Head Mounting 6” Suction Cups Mounting Mounting the Hostess Tray on a Car Securing with Ratchet Rope Support Levelling Base Mounting Camera Mounting... -
Page 4: Dimensions
Dimensions:... -
Page 5: Hostess Trays Assembly
Hostess Tray Kit Setup Hostess Trays Assembly • Attach both trays (Big cheese tray & Extension tray) properly. 5/8” Baby Pin Mounting • Now loosen the nut and washer from (5/8”) baby pin. • Now insert the baby pin into the trays by matching their holes. -
Page 6: Hex Bolts (8X25Mm) Mounting
Hex Bolts (8x25mm) Mounting • Now remove nut And washer from Hex Bolt. • Now insert the Hex Nut into the trays by matching their holes. • Then insert the washer and nut. • Then tighten it with the help of 13mm Spanner. -
Page 7: Grip Head Mounting
Grip Head Mounting • Loosen the knob of grip head mounting. • Then mount it on 5/8” Baby pin. • After mounting the grip Head Re-tighten the knob. • Repeat same process to insert another grip head. Connecting Male and Female Rods •... -
Page 8: Male & Female Rods Mounting
Male & Female Rods Mounting • Now Loosen the knob of the grip Head the insert the rod into the clamp. • After mounting the rod re-tighten the knob. • Insert other rod into another clamp by same process. Grip Head Mounting •... -
Page 9: Mounting The Hostess Tray On A Car
• After inserting the 6” Suction Cup re-tighten the knob. • Now remove dust covers from it. • Repeat same process to insert other Suction Cup to other side. Mounting the Hostess Tray on a Car • Now attach the hostess tray to the car securely. -
Page 10: Securing With Ratchet Rope
Securing with Ratchet Rope • Attach one end of the ratchet rope to the tray. • Then wrap the ratchet rope around the suction cup and grip head for a more secure setup. • Connect the other end of the ratchet rope to the Rode’s hole for better attachment, as shown in the image. -
Page 11: Support Levelling Base Mounting
Support Levelling Base Mounting • Loosen the Mitchell knob of the support levelling base (Not Included) and remove it. • Now mount the levelling base on cheese plate. • Then insert the Mitchell knob from bottom side and tighten it. •... - Page 12 YOUR PROAIM HOSTESS TRAY KIT– CAR MOUNT CAMERA RIGGING ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
