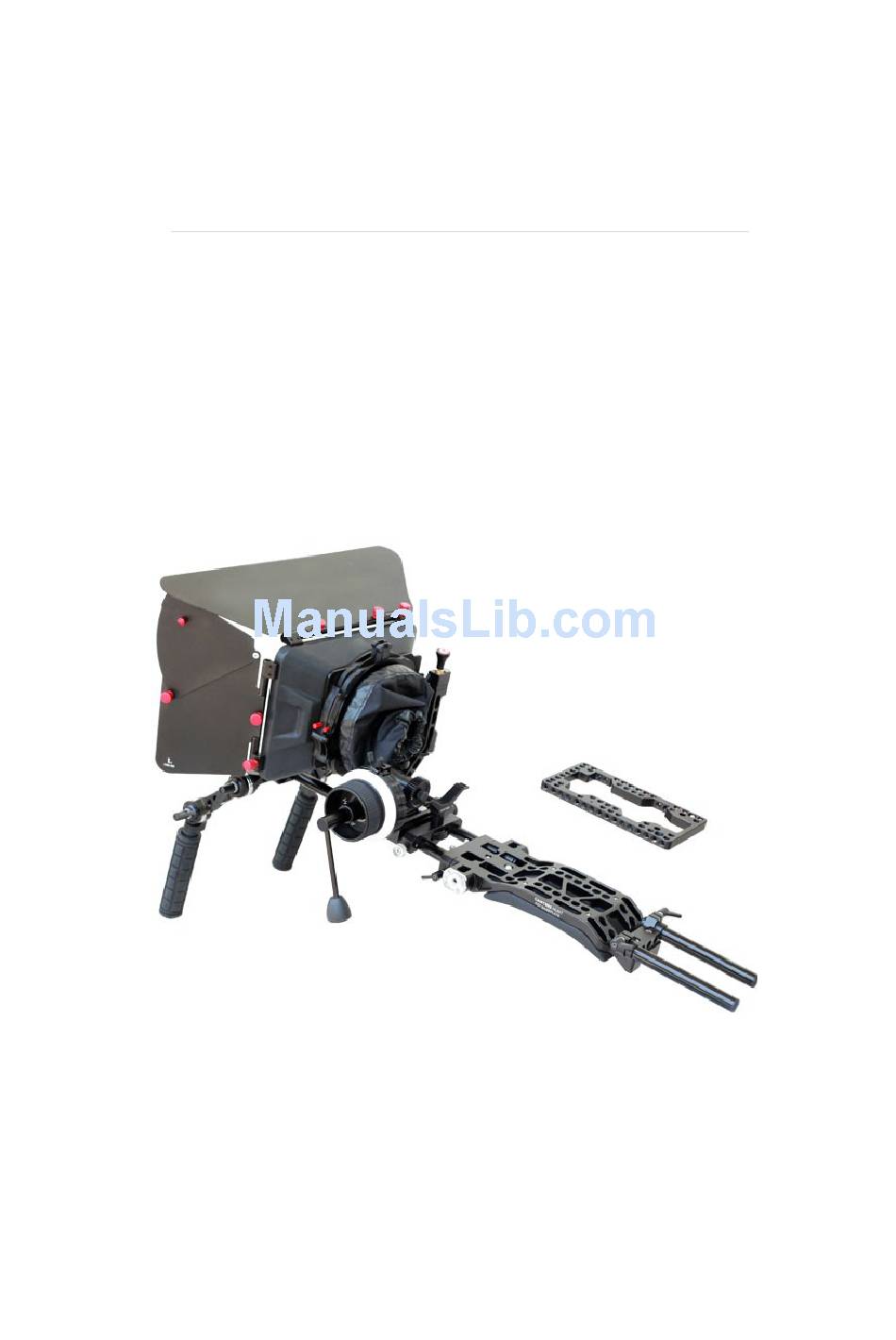

CAMTREE HUNT
SHOULDER KIT
(CH-FS7-TBK)
INSTRUCTION MANUAL
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CH-FS7-TBK
Summary of Contents for PROAIM CH-FS7-TBK
- Page 1 CAMTREE HUNT SHOULDER KIT (CH-FS7-TBK) INSTRUCTION MANUAL All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by...
- Page 2 Camtree Hunt Shoulder Kit INTRODUCTION The Camtree Hunt Shoulder Kit with Top plate & Base plate is specifically designed for Sony PXW-FS7 camera. This CNC made aluminum constructed comfortable kit delivers a thorough support to the camera as well as to its operator. It contains your very own MB-20 matte box and superbly precise HS-1000 Follow Focus.
- Page 3 Camtree Hunt Shoulder Kit ASSEMBLING YOUR SHOULDER KIT NOTE: The base plate is compatible with VCT-U14 plate or 1/4”-20 & 3/8”-16 . ATTACHING WITH VCT-U14 PLATE (NOT INCLUDED) Attach the base plate with your VCT-U14 plate and mount it on tripod. Tighten well to secure it.
- Page 4 Camtree Hunt Shoulder Kit Insert 300mm female rods into the front of base plate and tighten the knob. Insert 150mm female rods into back of base plate then insert the lens support into the front of rods and tighten the knob to secure it. Knob ...
- Page 5 Camtree Hunt Shoulder Kit NOTE : You can use speed crank for precision controlled manual focus racking. ATTACHING MATTE BOX Attach the matte box to align the knicker with the lens barrel and tighten the knob. ASSEMBLING YOUR ROSETTE HANDLE SET ...
-
Page 6: Warranty
Camtree Hunt Shoulder Kit Now insert handle set to rods and secure it with provided lock system. YOUR CAMTREE HUNT SHOULDER KIT ALL DRESSED UP AND GOOD TO GO WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual. - Page 7 Camtree Hunt Shoulder Kit We are not liable for incidental or consequential damages resulting from the use of the unit or occurring due to any breach of this warranty. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
