UM3448
User manual
STM32WBA Nucleo-64 board (MB1801 and MB2130)
Introduction
The
NUCLEO-WBA65RI
STM32 Nucleo-64 board, based on the MB1801 mezzanine board and the MB2130 MCU RF board, is
®
a wireless and ultra‑low‑power board embedding a powerful and ultra‑low‑power radio compliant with the Bluetooth
LE, IEEE
®
802.15.4-2015 PHY and MAC, supporting Thread, Matter, and Zigbee
.
®
A user USB Type-C
is also provided for easy connection with other devices.
®
The ARDUINO
Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the
STM32 Nucleo open development platform with a wide choice of specialized shields.

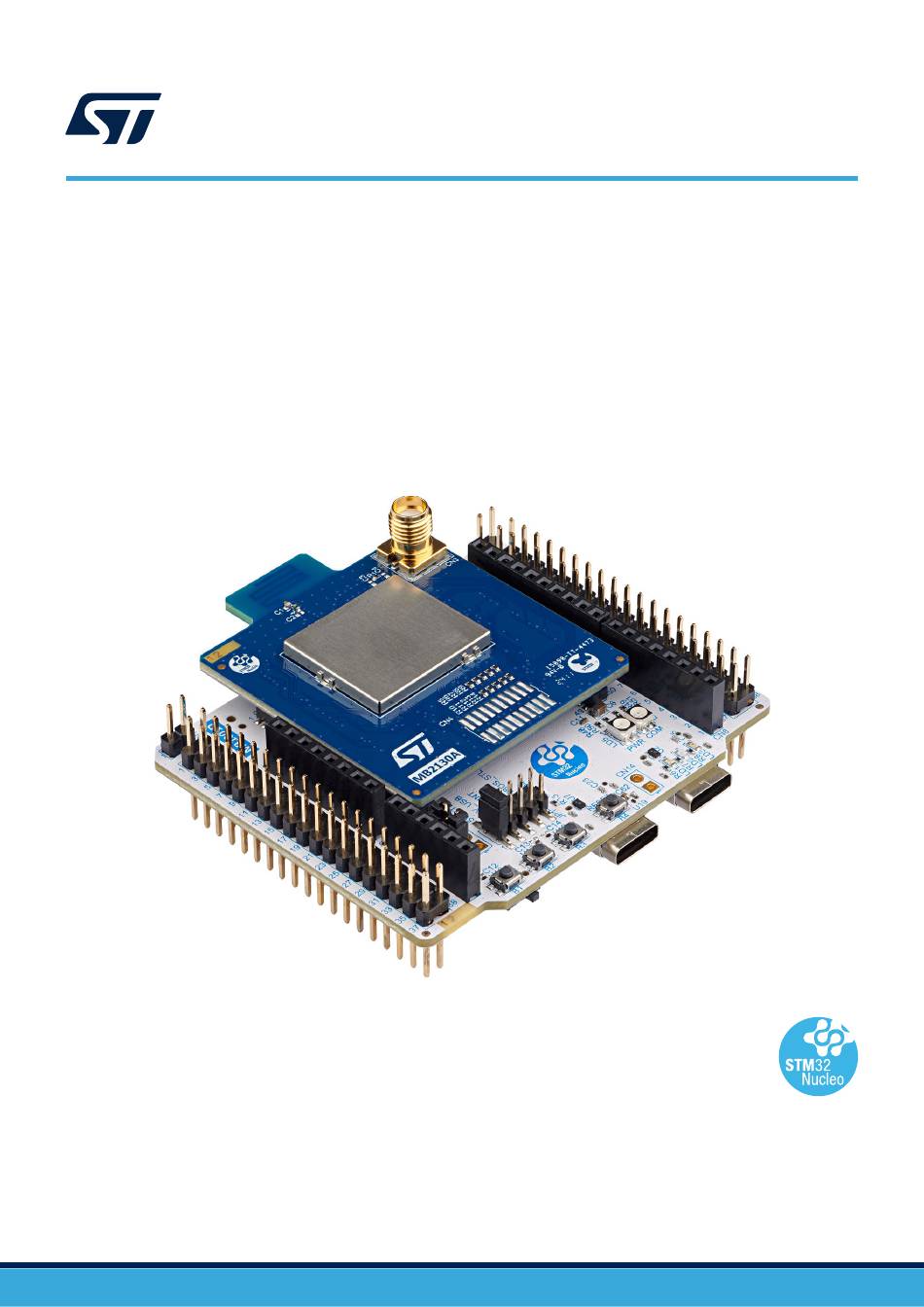

Figure 1.
NUCLEO-WBA65RI global view
Picture is not contractual.
UM3448 - Rev 1 - February 2025
www.st.com
For further information, contact your local STMicroelectronics sales office.
