Vista 5 Service Manual
RAID setup
The Vista5 is for safty reasons equipped with 2 hard disks.
The RAID (redundant array of independent disks) is responsible to control the 2 hard disks.
The exact coaction of the hard disks is defined in the RAID level. The most common Raid levels are RAID 0
(striped), RAID 1(mirrored) and RAID 5 (striped set [3 disk minimum] with distributed parity).
For our system we us RAID 1.
Since an unintentional power failure may cause the loss of the RAID or RAID settings, we strongly recommend to
use a UPS (Uninterruptible Power Supply) which allows the PC to switch off controlled!
RAID Settings:

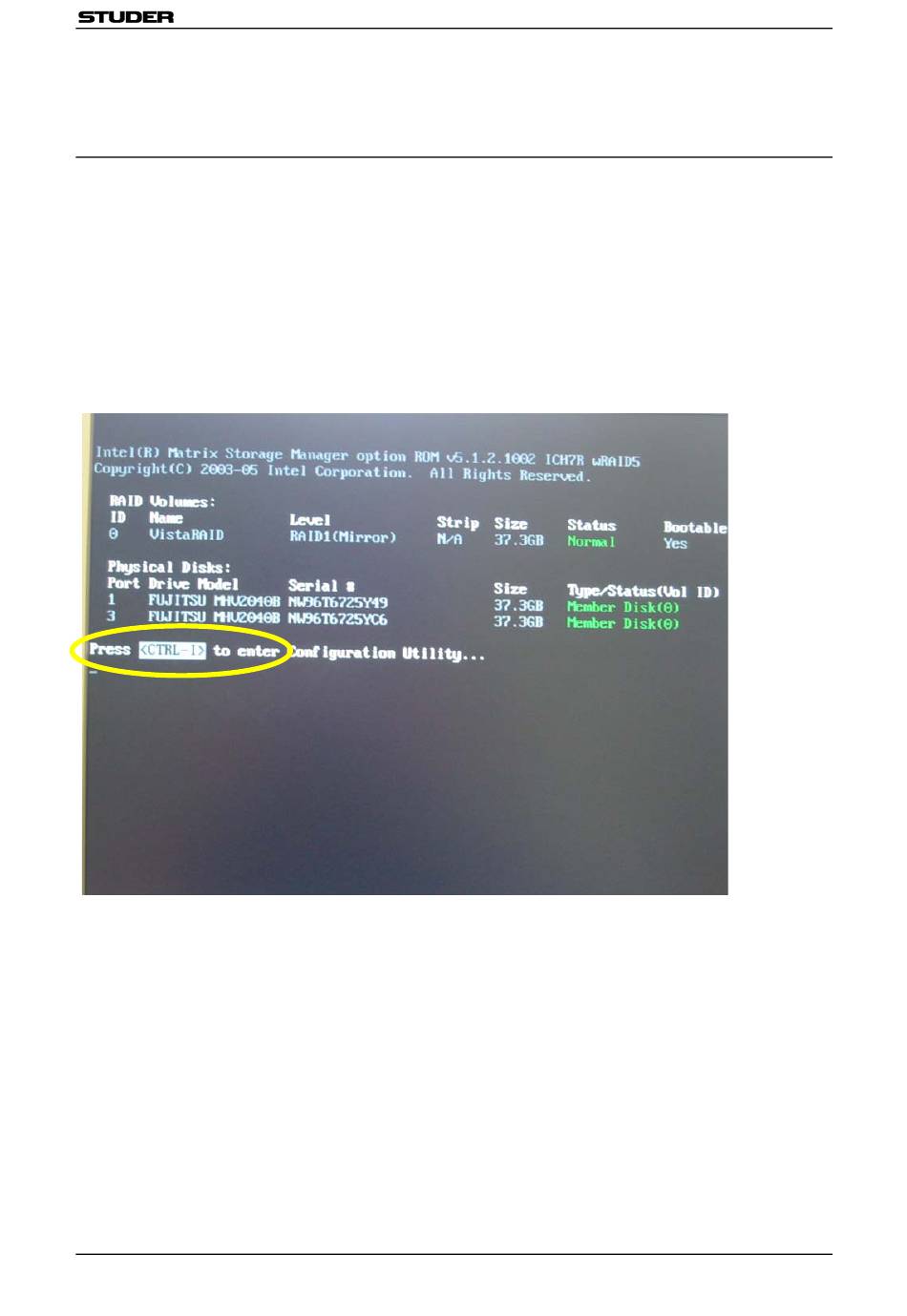

Switch on the desk and while booting wait for the command Press <CTRL I> to enter Configuration utility (see
marked aera below:
Ctrl
i
Press
and
simultaneous to enter into the RAID menu
Vista5 Service Manual
RAID setup
Page 1 from 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vista 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Studer Vista 5

Summary of Contents for Studer Vista 5

  • Page 1 Vista 5 Service Manual RAID setup The Vista5 is for safty reasons equipped with 2 hard disks. The RAID (redundant array of independent disks) is responsible to control the 2 hard disks. The exact coaction of the hard disks is defined in the RAID level. The most common Raid levels are RAID 0 (striped), RAID 1(mirrored) and RAID 5 (striped set [3 disk minimum] with distributed parity).
  • Page 2 Vista 5 Service Manual Enlighten Create RAID Volume and press enter VistaRAID Change Name to: and press enter Vista5 Service Manual RAID setup Page 2 from 5...
  • Page 3 Vista 5 Service Manual RAID1 (Mirrior) Select RAID Level and choose: and press enter Enlighten Capacity and press enter Vista5 Service Manual RAID setup Page 3 from 5...
  • Page 4 Vista 5 Service Manual Enlighten Create Volume and press enter Wait for this picture and answer the question: “Are you sure you want to create this volume” with yes by entering the letter: Vista5 Service Manual RAID setup Page 4 from 5...
  • Page 5 Vista 5 Service Manual Enlighten: 4. Exit and press enter Answer the question: “Are you sure you want to exit?” with yes by entering the letter: Vista5 Service Manual RAID setup Page 5 from 5...
