Figure C 11: Damped Sine Wave Formula And Waveform - Tektronix AWG2005 User Manual

Appendix C: Sample Waveform Library
Damped Sine Wave (DMP_SIN.WFM)
Made with the equation editor.

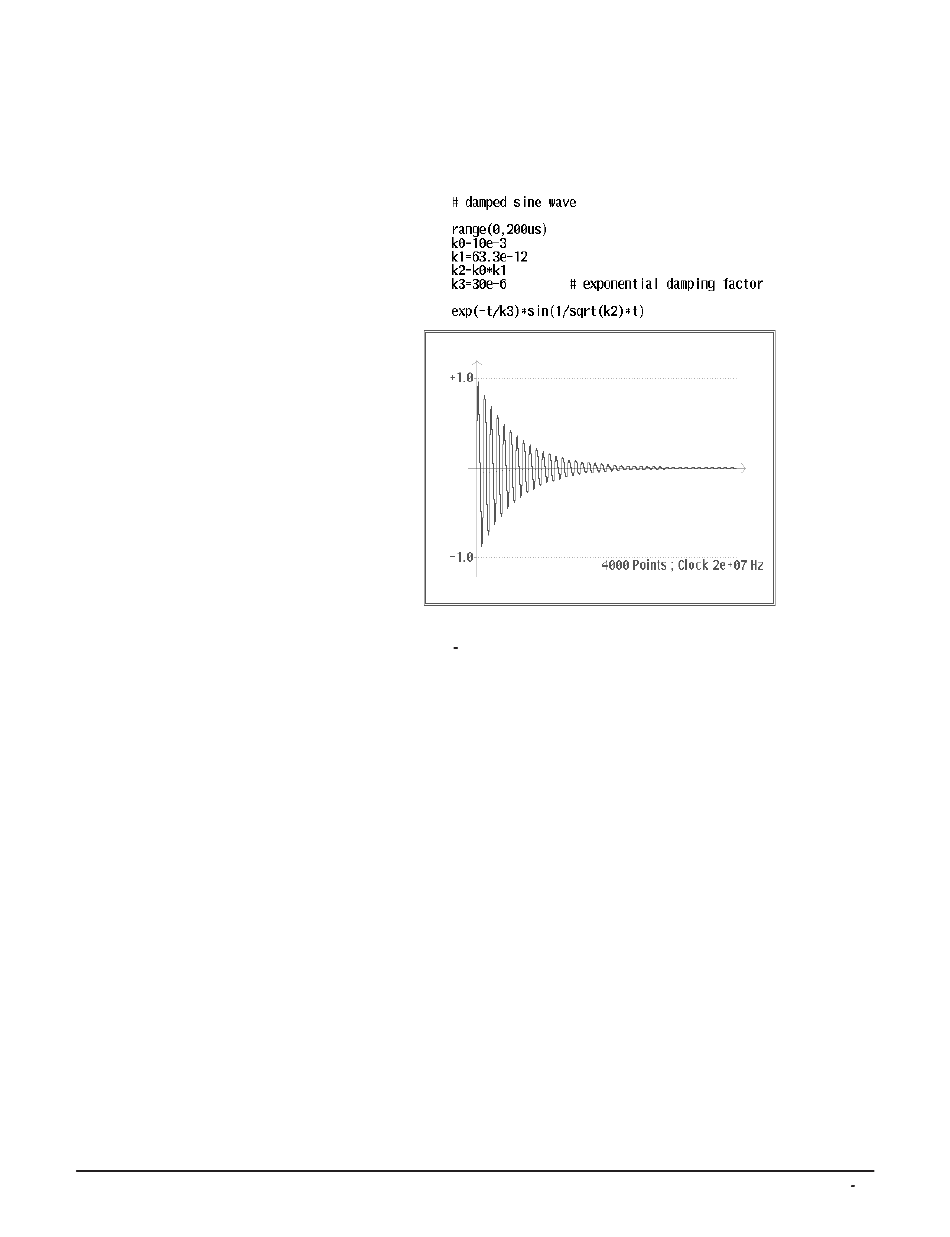

Figure C 11: Damped Sine Wave Formula and Waveform

Constants
k0 indicates the inductance (L), k1 indicates the capacitance (C), and k3
indicates the damping time constant.
Description
This is an attenuated amplitude waveform with a resonance frequency of
200 kHz (L=10 mH, C=63.3pF) and a damping time constant of 30 ms.
Settings
Waveform points: 4000
Clock frequency: 20 MHz
Output time: 200 ms
