Summary of Contents for Tektronix A6303
- Page 1 Instructions A6303 & A6303XL 100 Amp AC/DC Current Probe 070-3906-03 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to...
- Page 2 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Printed in the U.S.A.
- Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
- Page 4 H Eliminates unexpected service expenses For Information and Ordering For more information or to order Service Assurance, contact your Tektronix representative and provide the information below. Service Assurance may not be available in locations outside the United States of America.
-
Page 5: Table Of Contents
........A6303 & A6303XL Instructions... -
Page 6: General Safety Summary
Do Not Operate With Suspected Failures. If you suspect there is damage to this product, have it inspected by qualified service personnel. Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. A6303 & A6303XL Instructions... - Page 7 WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. The following symbols may appear on the product: WARNING Protective Ground CAUTION Double High Voltage (Earth) Terminal Refer to Manual Insulated A6303 & A6303XL Instructions...
-
Page 8: Service Safety Summary
Safety Summary and the General Safety Summary before performing any service procedures. Do Not Service Alone. Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present. A6303 & A6303XL Instructions... -
Page 9: Getting Started

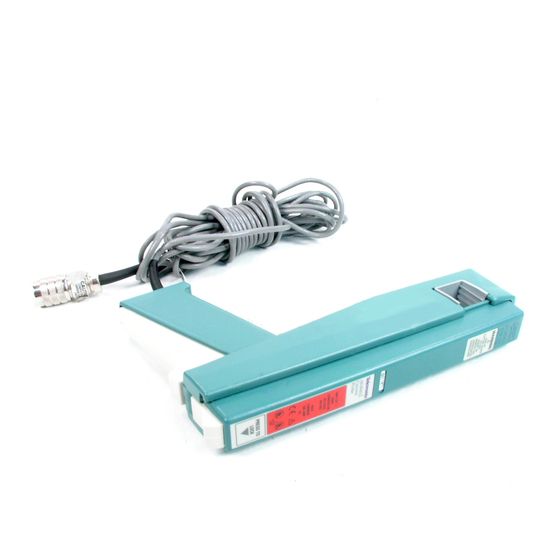

This section covers the installation and operation of the A6303 & A6303XL current probes. The A6303 is a DC to 15 MHz current probe designed for use with the AM503 family of current probe amplifiers and the 11A16 plug-in. The A6303 can measure currents to 100 A (DC + peak AC), and up to 500 A peak current (while not exceeding the amp-second rating). -
Page 10: Operating The Current Probe Slide
Figure 2 illustrates the slide operation of the probe. To open the probe, press the bottom of the lock button and squeeze the handle until the core is open. To lock the probe, release the squeeze handle and press the top of the lock button. A6303 & A6303XL Instructions... -
Page 11: Degaussing And Autobalancing The Current Probe
Why Degauss the Current Probe? Degaussing the probe removes any residual magnetization from the probe core. Such residual magnetization can induce measurement error. Autobalancing removes unwanted DC offsets in the amplifier circuitry. A6303 & A6303XL Instructions... -
Page 12: Maximum Current Limits
The quotient is the maximum allowable pulse width; the pulse width at the 50% point of the measured signal must be less than this value. A6303 & A6303XL Instructions... - Page 13 50% points (see Figure 3b). Divide the Ampere-second (or Ampere- microsecond) specification of your probe by the pulse width. The quotient is the maximum allowable current; the peak amplitude of the measured pulse must be less than this value. A6303 & A6303XL Instructions...
-
Page 14: Specifications
, CAT III Maximum Continuous Current 100 A (DC + peak AC) Maximum Pulsed Current 500 A 1 10 Amp@Second Product A@s (10,000 A@ms) 0.02 W at 1 MHz Insertion Impedance 0.15 W at 15 MHz A6303 & A6303XL Instructions... - Page 15 Max. Peak Pulse ( 500 A) Amp-Second Product Limit = 10,000 A ms Max. Continuous Pulse ( 100 A) Any Width Allowable Pulse Width (Microseconds) Figure 4: A6303 and A6303XL Specified Operating Area Derating Curve Maximum Input Current 0.001 0.01 Frequency (MHz) Figure 5: A6303 and A6303XL Frequency Derating Curve A6303 &...
- Page 16 8 m (26.25 feet) 21 mm 41 mm (0.83 in) (1.6 in) 67 mm 25 mm (2.7 in) (1.0 in) Maximum Wire Size 21 mm (0.83 in) Figure 7: A6303 and A6303XL Probe Jaw Dimensions (Nominal) A6303 & A6303XL Instructions...
- Page 17 1min. cycles. Hold 9 min. at any major resonance, or if none, at 55 Hz. Total time, 54 min. Random Vibration Operating 0.31 g , 5 to 500 Hz, 10 minutes on each axis. Tektronix Std. 062–2858–00, Rev. B, Class 3. A6303 & A6303XL Instructions...
- Page 18 CAT II Local-level mains (wall sockets). Equipment at this level includes appliances, portable tools, and similar products. Equipment is usually cord-connected CAT I Secondary (signal level) or battery operated circuits of electronic equipment A6303 & A6303XL Instructions...
-
Page 19: Maintenance
Maintenance This section explains how to clean the A6303 & A6303XL current probes and, if necessary, disassemble a probe for maintenance or repair. Also included are instructions for preparing a probe for shipment. The A6303 & A6303XL current probes should require only routine cleaning. - Page 20 7. While maintaining a firm grip on the pliers, carefully lift the squeeze handle and gear out of the probe. See Figure 8. 8. To remove the current transformer, lift the assembly out of the probe as shown in Figure 9 and unplug it from the circuit board. A6303 & A6303XL Instructions...
-
Page 21: Obtaining Replacement Parts
Obtaining Replacement Parts Replacement parts may be obtained through your local Tektronix field office or representative. Refer to the Replaceable Parts List on page 15 for more information. -
Page 22: Preparation For Shipment
Maintenance Preparation for Shipment If you must ship your Tektronix product, please use the original packaging if possible. If the original packaging is unfit for use or not available, use the following packaging guidelines: 1. Use a corrugated cardboard shipping carton having inside dimensions at least one inch greater than the probe dimensions. -
Page 23: Replaceable Parts List
Probe. As described below, use these lists to identify and order replacement parts. Parts Ordering Information Replacement parts are available from or through your local Tektronix, Inc., service center or representative. Changes to Tektronix instruments are sometimes made to accommodate improved components as they become available and to give you the benefit of the latest circuit improvements. - Page 24 Replaceable Parts List Figure 10: A6303 & A6303XL Exploded View A6303 & A6303XL Instructions...
- Page 25 PLUG,HOLE:U/W0.14 DIA HOLE,WHT PLSTC 02768 207–090201–00–0101 –9 211–0183–00 SCREW,CAP:4–40 X 0.5,SCH,STL,CD PL,HEX REC 93907 ORDER BY DESCRIP –10 174–3247–00 CABLE ASSY:CABLE ASSY W/CKT BD, A6303 80009 174–3247–00 174–3222–00 CABLE ASSEMBLY:WITH CIRCUIT BOARD 80009 174–3222–00 –11 214–2446–00 SPR,HLCL,TRSN:0.1 OD X 0.5 L,MUSIC WIRE...
- Page 26 NORTHWEST FOURSLIDE INC 18500 SW TETON AVENUE TUALATIN, OR 97062 TK2548 XEROX CORPORATION DIV OF XEROX CORPORATION BEAVERTON, OR 97005 14181 SW MILLIKAN WAY TK2565 VISION PLASTICS INC 26000 SW PARKWAY CENTER DRIVE WILSONVILLE, OR 97070 A6303 & A6303XL Instructions...
