- Page 1 Instructions A622 100 Amp AC/DC Current Probe 070-8883-03 www.tektronix.com *P070888303* 070888303...
- Page 2 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077...
-
Page 3: Warranty
Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations. -
Page 4: Contacting Tektronix
6:00 a.m. - - 5:00 p.m. Pacific Standard Time This phone number is toll free in North America. After office hours, please leave a voice mail message. Outside North America, contact a Tektronix sales office or distributor; see the Tektronix web site for a list of offices. -
Page 5: General Safety Summary
Do Not Operate With Suspected Failures. If you suspect there is damage to this product, have it inspected by qualified service personnel. Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. A622 Instructions... -
Page 6: Safety Terms And Symbols
WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. These symbols may appear on the product: Double CAUTION Insulated Refer to Manual A622 Instructions... -
Page 7: Getting Started

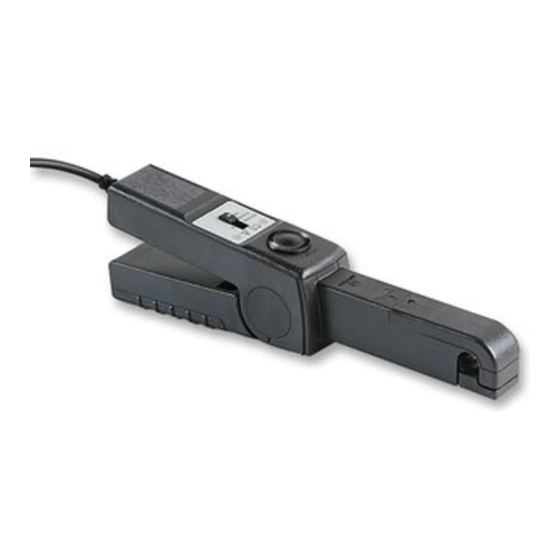

The A622 current probe (Figure 1) enables a general purpose oscilloscope to display AC and DC current signals up to 100 amps Peak (70 A RMS). The A622 current probe can also make AC and DC measurements with a multimeter by using the BNC-to-banana plug adapter that is available as a recommended accessory. - Page 8 Getting Started Table 1 highlights the controls and indicators on the A622 current probe. Table 1: A622 controls and indicators Control/Indicator Description Current flow symbol. The arrow show the probe’s polarity convention for measuring current flowing from positive to negative.
-
Page 9: Operating Basics
2. Move the OFF/Range switch to the 10 mV/A or 100 mV/A position to power on the probe. The A622 current probe has a green LED power/battery indicator. If the LED does not light, replace the battery. 3. Use the ZERO adjustment to zero or offset the probe output. - Page 10 Jaws From source Figure 2: Connecting the A622 current probe 5. Adjust the probe and channel as necessary to get a clear view of the signal. Set the channel to DC volts to see both the AC and DC currents; set the channel to AC to see the AC current only.
- Page 11 Motor controller Figure 3: Typical current waveforms If you are using the A622 current probe with a multimeter, connect the probe with the recommended BNC-to-banana adapter. Connect the black lead to the meter COM, and the red lead to the VΩ input.
- Page 12 Operating Basics Figure 4: Increasing the sensitivity A622 Instructions...
-
Page 13: Maintenance
Use the information in this section to properly maintain the operation of your A622 AC/DC Current Probe. Battery Notes The A622 current probe uses a single 9 V battery. Refer to page 9 for a detailed battery description. As the battery in the A622 current probe is drained, significant gain errors may occur. -
Page 14: Preparation For Shipment
Maintenance Battery Screw Figure 5: A622 battery compartment Cleaning To clean the probe body, use a soft cloth dampened in a solution of mild detergent and water. To clean the core, open the jaw and clean the exposed core surfaces with a cotton swap dampened with isopropyl alcohol (isopropanol). -
Page 15: Specifications
Specifications These characteristics apply to an A622 AC/DC Current Probe installed on a Tektronix TDS 220 oscilloscope. The oscilloscope must be warmed up for at least 20 minutes and be in an environment within the limits in Table 5. Table 2: Electrical Characteristics... - Page 16 Table 4: Physical Characteristics Dimensions 231 mm x 36 mm x 67 mm (9.09 x 1.42 x 2.64 inches) Maximum Conductor Size 11.8 mm (0.46 inches) Cable Length 2 m (6.6 feet) Weight 330 g (12 oz) with battery A622 Instructions...
- Page 17 100 mV/A range - - 1 10 mV/A range - - 2 Gain in dB - - 3 - - 4 - - 5 10 k 100 k Frequency (Hz) Figure 6: Gain versus frequency at 1 A peak, typical A622 Instructions...
- Page 18 Specifications 112A 160A 140A 120A 100A Peak current current 10 k 100 k Frequency (Hz) Figure 7: Maximum current versus frequency A622 Instructions...
- Page 19 - - 4 - - 6 Uncertainty % - - 8 Typical - - 10 - - 12 - - 14 Specification - - 16 Amperes (A) Figure 8: DC signal linearity in the 10 mV/A range, typical A622 Instructions...
- Page 20 Official Journal of the European Union: Voltage Low Voltage Directive 73/23/EEC, as amended by 93/68/EEC EN 61010-1/A2:1995 Safety requirements for electrical equipment for measurement, control, and laboratory use. EN 61010-2-032:1995 Particular requirements for hand-held current clamps for electrical measurement and test equipment. A622 Instructions...
- Page 21 Equipment at this level is typically in a fixed industrial location. CAT II Local-level mains (wall sockets). Equipment at this level includes appliances, portable tools, and similar products. Equipment is usually cord-connected. CAT I Secondary (signal level) or battery operated circuits of electronic equipment. A622 Instructions...
- Page 22 Pollution Degree 2 Normally only dry, nonconductive pollution occurs. Occasionally a temporary conductivity that is caused by condensation must be expected. This location is a typical office/home environment. Temporary condensation occurs only when the product is out of service. A622 Instructions...
-
Page 23: Replaceable Parts
Replaceable Parts The A622 AC/DC Current Probe is shipped with the following items: H These instructions Tektronix part number 070-8883-XX H One 9V battery Tektronix part number 146-0017-00 ANSI/NEDA number 1604A IEC number 6LR61 Recommended accessory for use with DMM’s:... - Page 24 A622 Instructions...
