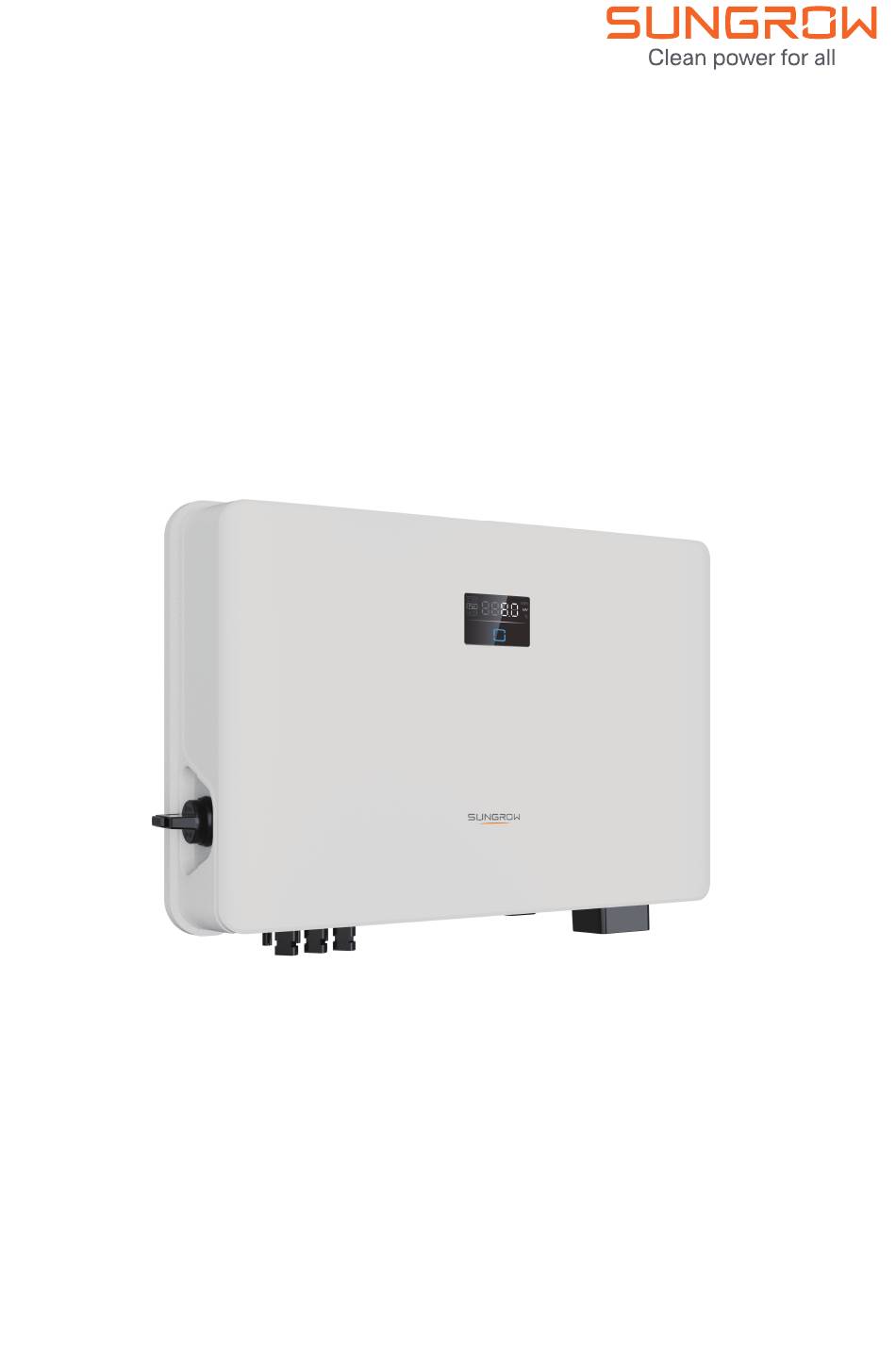

- Page 1 1-Phase PV Grid-Connected Inverter Quick Installation Guide SG7.5RS-L / SG8.0RS-L / SG9.0RS-L / SG10RS-L WWW.SUNGROWPOWER.COM SG7.5-10RS-L-QIMUL-Ver13-202411...
- Page 2 ● Before installation, check that the package contents are intact and complete compared to the packing list. Contact SUNGROW or the distributor in case of any damaged or missing components. ● The cable used must be intact and well insulated. Operation personnel must wear proper personal protective equipment (PPE) all the time.
- Page 3 Danger to life due to high voltages! Read the user manual before maintenance! Do not touch live parts for 10 minutes after disconnection from the power sources. Only qualifi ed personnel can open and RCM mark of conformity. service the inverter. CE mark of conformity.
- Page 4 the inverter is powered off. ● Ensure that there is no voltage or current before connecting or disconnecting the PV and AC connectors. WARNING All the warning labels and nameplate on the inverter body: ● must be clearly visible; and ●...
- Page 5 ● Antes de instalar, verifique se o conteúdo da embalagem está intacto e completo na lista da embalagem. Entre em contato com a SUNGROW ou com o distribuidor em caso de componentes danificados ou faltando. ●...
- Page 6 A alta tensão traz riscos à vida! Leia o manual do usuário antes de fazer a Não toque nas partes energizadas manutenção! durante 10 minutos após desconectá- las das fontes de alimentação. Só funcionários qualificados podem Marca de conformidade CE. abrir e fazer manutenção no inversor.
- Page 7 ● Certifique-se de que não haja tensão ou corrente antes de conectar ou desconectar os conectores FV e ADVERTÊNCIA No corpo do inversor, todas as etiquetas de advertência e a capacidade anunciada: ● devem estar claramente visíveis; e ● não devem ser removidas, cobertas ou coladas. CUIDADO Risco de queimaduras devido aos componentes quentes! ●...
- Page 8 Scope of Delivery / Escopo da entrega Inverter Wall-mounting bracket Expansion plug set x 3 Screw M4x16 䯒x2) Crimp contact PV connector Grid connector WiFi-P2 module (3 pairs) (3 pairs) Documents OT terminals x 8 The images shown here are for reference. The actual quantity is based on delivery. Mounting location / Local de montagem 60 －...
- Page 9 ｌ611 nn ｌ 411 nn ｌ 411nn ｌ 2111nn ｌ511 nn Installation tools / Ferramentas de instalação Marker Multimeter: ≥600Vdc Hammer drill: φ10 Wire stripper 480.0 Tube terminal crimping Hydraulic plier Phillips screwdriver: M4 Wrench for MC4 terminal tool: 0.5-1.0 mm² Heat gun RJ45 Crimping tool Wrench: 33mm, 35mm...
- Page 10 Must use two screw sets to lock both left and right sides. 9.0 N m . 1.2N.m ● Use appropriate mounting hardware for wall type. ● The image shown here is for reference only. The actual product received may diff er. L = E + (2 - 3) mm 6-10 mm Heat shrink tubing...
- Page 11 SG7.5RS-L / SG8.0RS-L / SG9.0RS-L: 50 A SG10RS-L : 63 A RCD (if required): triggered at a residual current of ≥ 300 mA for others (according to local regulations) Sealing rings Remarks 16 ~ 18 mm One three-core cable 18 ~ 25.8 mm One three-core cable 8AWG、7AWG，...
- Page 12 4-6 mm ø 4.7-6.4 mm 7-8 mm ≥7 Click ≤ 600 V 2.5-3 N m 560.0 Click WLAN Click Power on / Ligar...
-
Page 13: Led Indicator
iSolarCloud App LED panel / Painel LED Value for normal state or error code for error state Today’s energy Unit AC power LED indicator ● In normal state, the E-day and Pac information will be displayed alternately. Also you can touch the LED indicator to switch the information. - Page 14 More information in the QR code or at http://support.sungrowpower.com/ M 0 H 0...
