Connecting KeyBox 9500EC
The instructions below are for when you connect KeyBox 9500EC to
an existing KeyBox 9400/9500SC. Follow the instructions carefully:
STEP 1
After mounting the 9500EC cabinet on the wall, cut the power from
the main cabinet (9500SC).
STEP 2

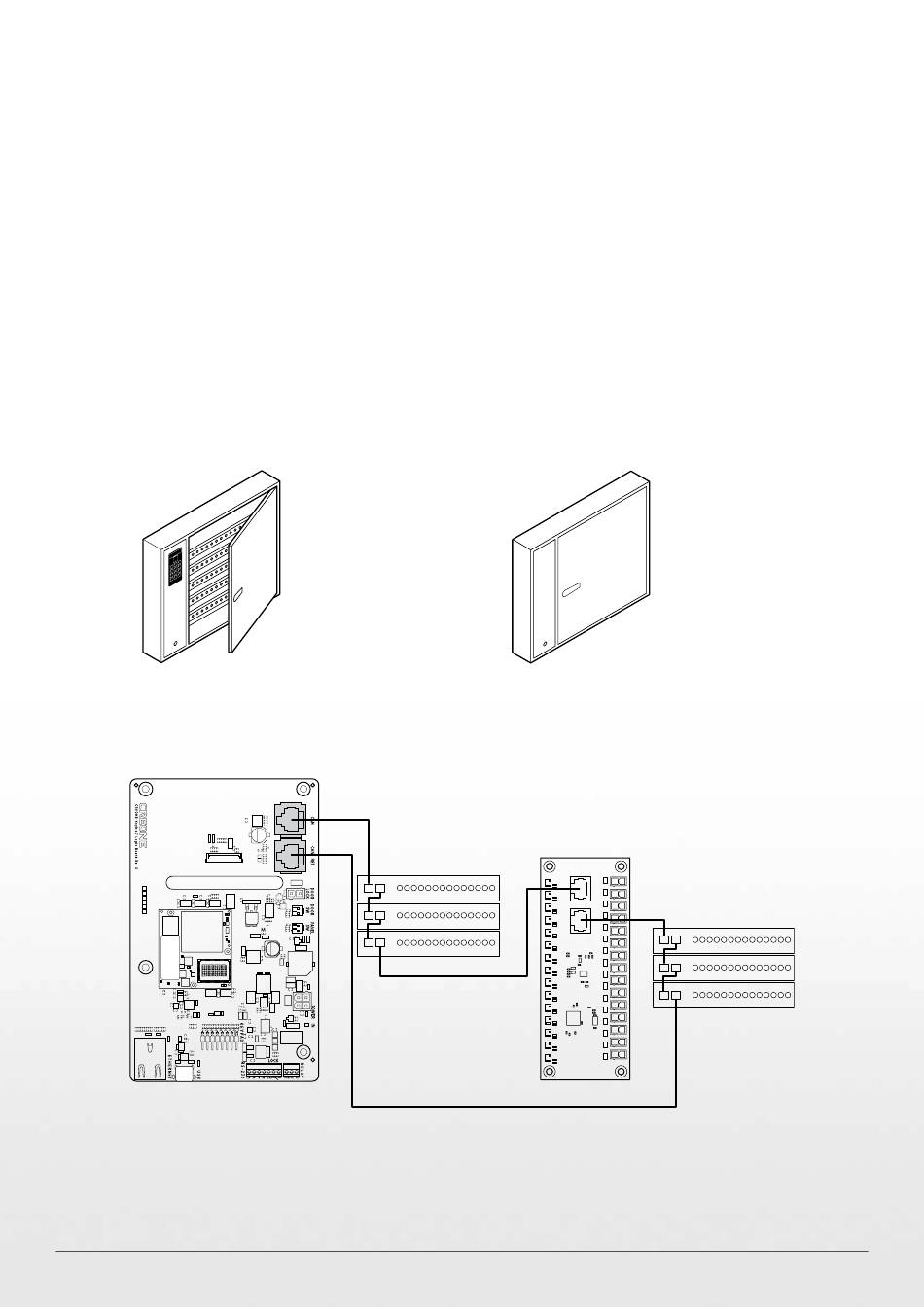

From the last strip in the first cabinet, connect the cable to the top
port of the expansion card(see illustration below).
KEYBOX 9500SC
KEYBOX-PCB
KeyWin6 - KeyBox SC manual Version 1.0.3. All and copyright reserved by Creone AB
STEP 3
From the bottom port of the EC-printed circuit board connect it to the
first strip in the 9500EC.
KEYBOX 9500EC
KEYBOX EC-PCB
DOOR
CONTROL SERIES
CREONE VALUE BOX REV2
DOOR
