Summary of Contents for Total TMLI2022 Series

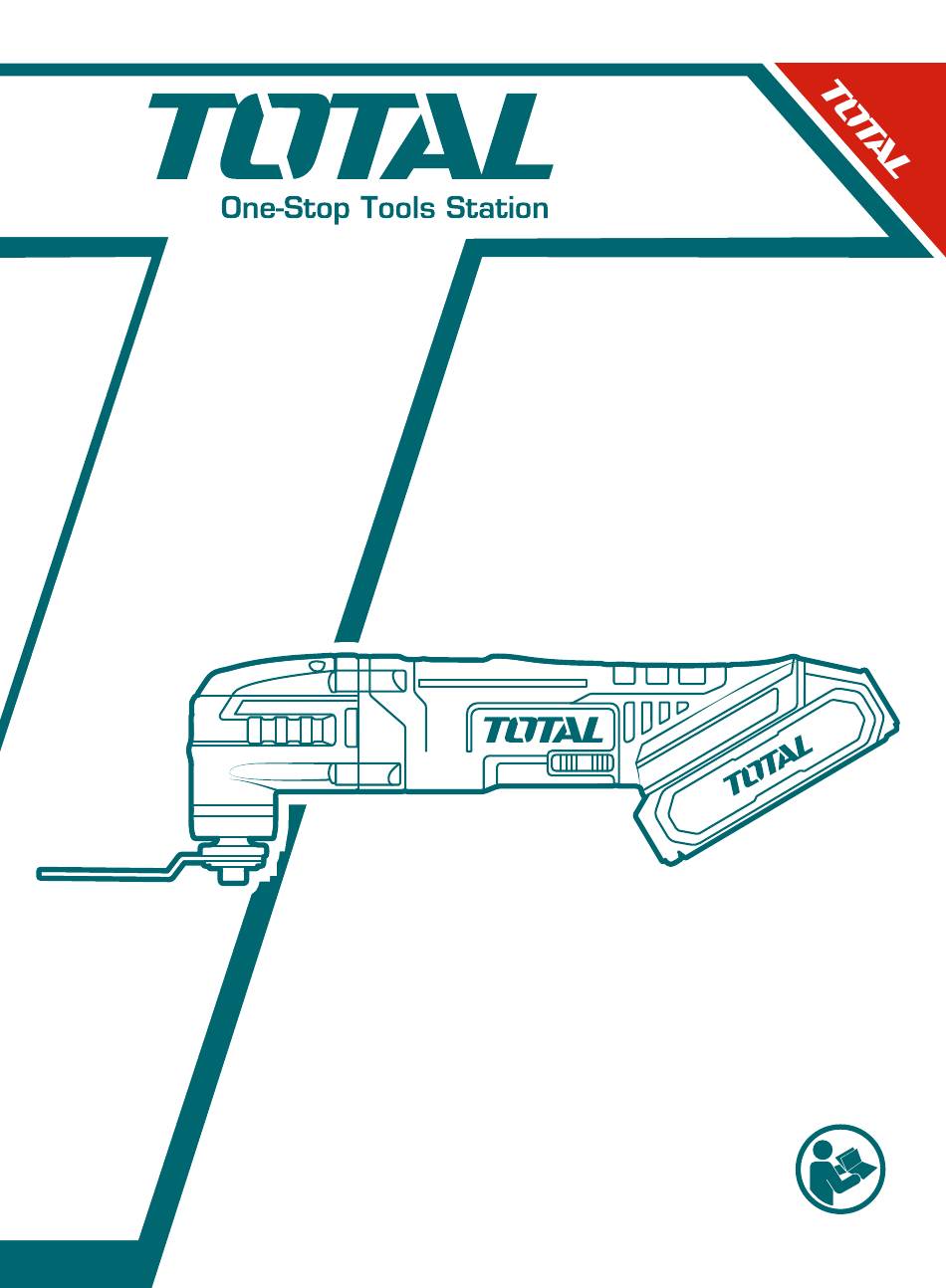

- Page 1 PRODUCT MANUAL CORDLESS MULTI-TOOL TMLI2022 UTMLI2022 TMLI2022xy UTMLI2022xy x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
- Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
-
Page 11: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Safety information • Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. -
Page 12: Intended Use
| English being scraped. • Take particular care when handling scrapers and blades. The application tools are very sharp. Danger of injury. • In case of damage and improper use of the battery, vapors may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. -
Page 13: Specifications
| English SPECIFICATIONS ON / OFF switch Clamping bolt LED light Allen key Adjusting wheel oscillation speed Scraper preset 10. Segment saw blade Louvres 11. HCS plunge saw blade Tool mount 12. Grinding plate Clamping plate 13. Sanding sheets... -
Page 14: Technical Specifications
| English Technical specifications TMLI2022 UTMLI2022 Model No. TMLI2022xy UTMLI2022xy Rated voltage No-load speed 5000–20000/min Model No. Note: x (blank, 1,2,3,4,5,6,7,8,9,E,S,A,M); y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M) • Due to our continuing program of research and development, the specifications herein are subject to change without notice. - Page 15 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity TFBLI2001 2.0Ah TFBLI2001xy TFBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah TFBLI2002xy TFBLI2053 5.0Ah TFBLI2053xy Model No.
- Page 16 | English OPERATION PICTURE...
- Page 17 | English OPERATION PICTURE...
-
Page 18: Function Description
| English FUNCTION DESCRIPTION Advice on use Principle of operation: The oscillating motor allows the application tool to oscillate back and forth 5000 to 20000 times per minute. This allows for accurate working in the tightest of spaces. Sawing / cutting: •... - Page 19 | English ⚠ NOTE To ensure maximum performance and life of lithium–ion battery packs, charge the battery pack fully before first use. Changing the tool Wear protective gloves when changing tools. There is a risk of injury when touching the application tools. Selecting the application tool Please observe the application tools intended for your power tool.
- Page 20 | English Segment saw blade Material: Wood Use: • Cutting and plunge sawing • Close to the edge sawing, even in difficult to access areas Example: Laying parquet and other floor coverings, including plunge sawing. (See Figure. D) Scraper Materials: Motor / cement residue, tile / carpet adhesive, paint / silicone residue ⚠...
- Page 21 | English Grinding plate Materials: Wood and metal (sanding sheets included), paint*, stone* * Depending on sanding sheet Use: Sanding edges and hard to reach areas (See Figure. F and G) Changing the application tool (See Figure. H) Danger of injury! Always remove the battery from the unit before working on the power tool.
-
Page 22: Operation
| English OPERATION Switching On / Off Slide the ON / OFF switch (1) forwards to switch on the device. Slide the ON / OFF switch (1) backwards to switch off the device. Selecting the oscillation speed Preselect the required oscillation speed using the oscillation speed setting wheel (3) ⚠... -
Page 23: Maintenance And Cleaning
| English MAINTENANCE&MALFUNCTIONS Maintenance and cleaning Danger of injury! Always remove the battery from the unit before working on the power tool. • Do not use sharp objects for cleaning the device. Do not allow any liquids to enter the device. •... - Page 24 TOTAL TOOLS WORLD MADE IN CHINA T0324.V04 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
