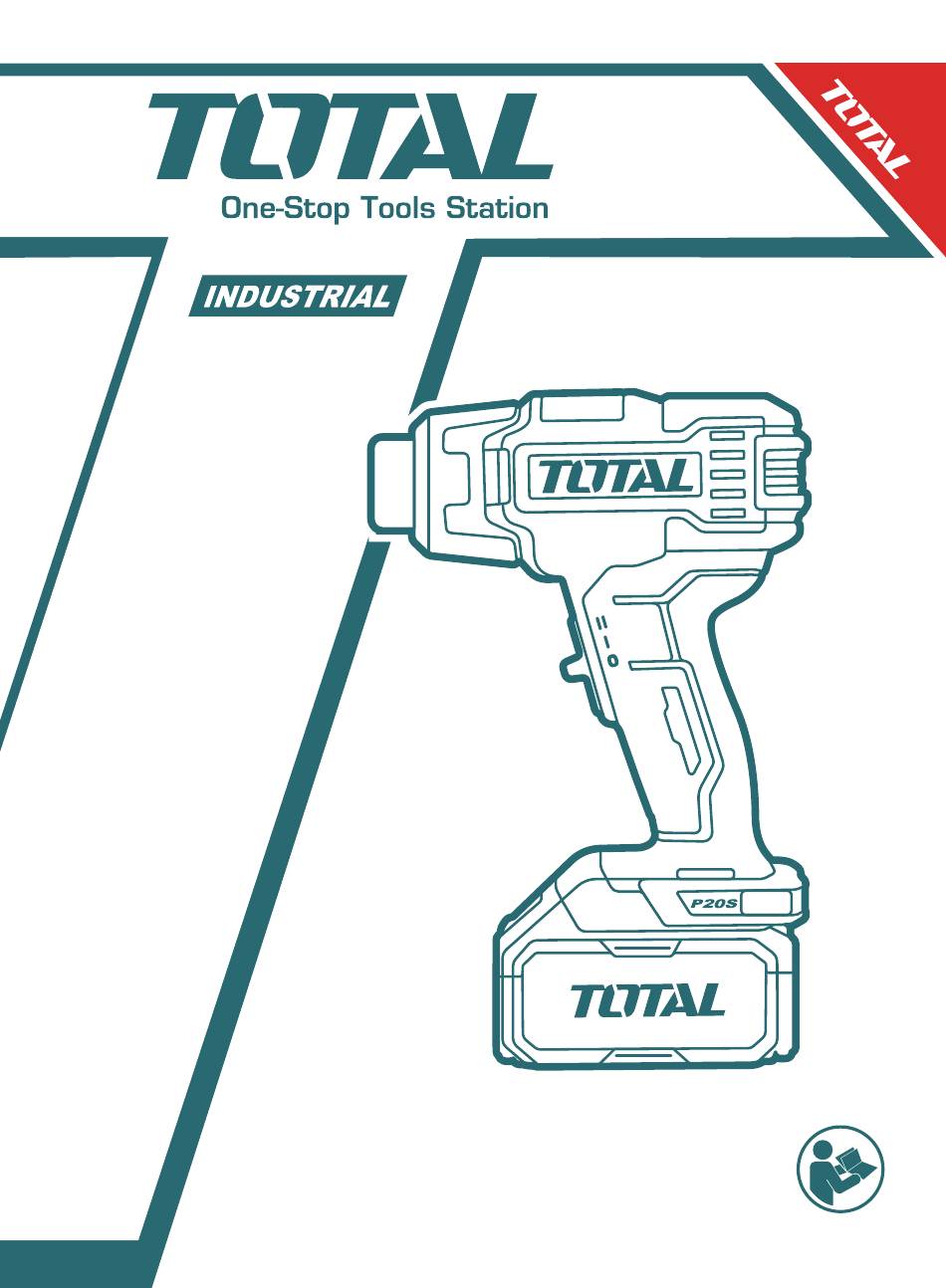

- Page 1 PRODUCT MANUAL LITHIUM-ION HEAT GUN TBLI2002 UTBLI2002 TBLI2002xy UTBLI2002xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,-E,-S,-A,-M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
- Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 11: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Make sure the workplace is adequately ventilated. Residual gases and vapors can be harmful to health. Do not operate the product in moist environments or allow it to become moist. Careless handling of the product increases the risk of fire and explosion. Flammable and toxic gases can develop when working with synthetics, paints, varnishes and similar materials. -
Page 12: Intended Use
| English manufacturer before operating this power tool. INTENDED USE The Lithium-ion heat guns are engineered for industrial applications including vehicle wraps and tinting, stripping lacquer, paint and varnish, thawing frozen pipes, loosening tile and putty, re-melting adhesive, removing stickers, waxing and de- waxing, bending plastic pipes and sheets, and more. -
Page 13: Technical Specifications
| English SPECIFICATIONS Nozzle Housing ON/OFF switch/Air temperature adjustment Symbols The followings show the symbols used for tool. volts direct current .../min revolutions or reciprocation per minute r/min Technical specifications TBLI2002,TBLI2002xy,UTBLI2002,UTBLI2002xy x (blank,1,2,3,4,5,6,7,8,9, E,S,A,M) Model No. y (blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E, S,A,M) Drill voltage... - Page 14 | English Temperature 300/550°C Airflow 100/200 L/min Due to our continuing program of research and development, the specifications herein are subject to change without notice. Specifications and battery cartridge may differ from country to country. Weight, with battery cartridge. ⚠...
-
Page 15: Putting Into Operation
| English OPERATION Putting into operation Mount the correct accessory for the application. Switching on （Number of the slide switch means as follows） 0: OFF position i. For heating at 300℃ with low air volume around 100L/min ii. For heating at 550℃ with low air volume around 200L/min Adjustable temperature with switch（illustrated above）... - Page 16 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 17 TOTAL TOOLS WORLD MADE IN CHINA T0723.V02 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
