Summary of Contents for Total TS3006

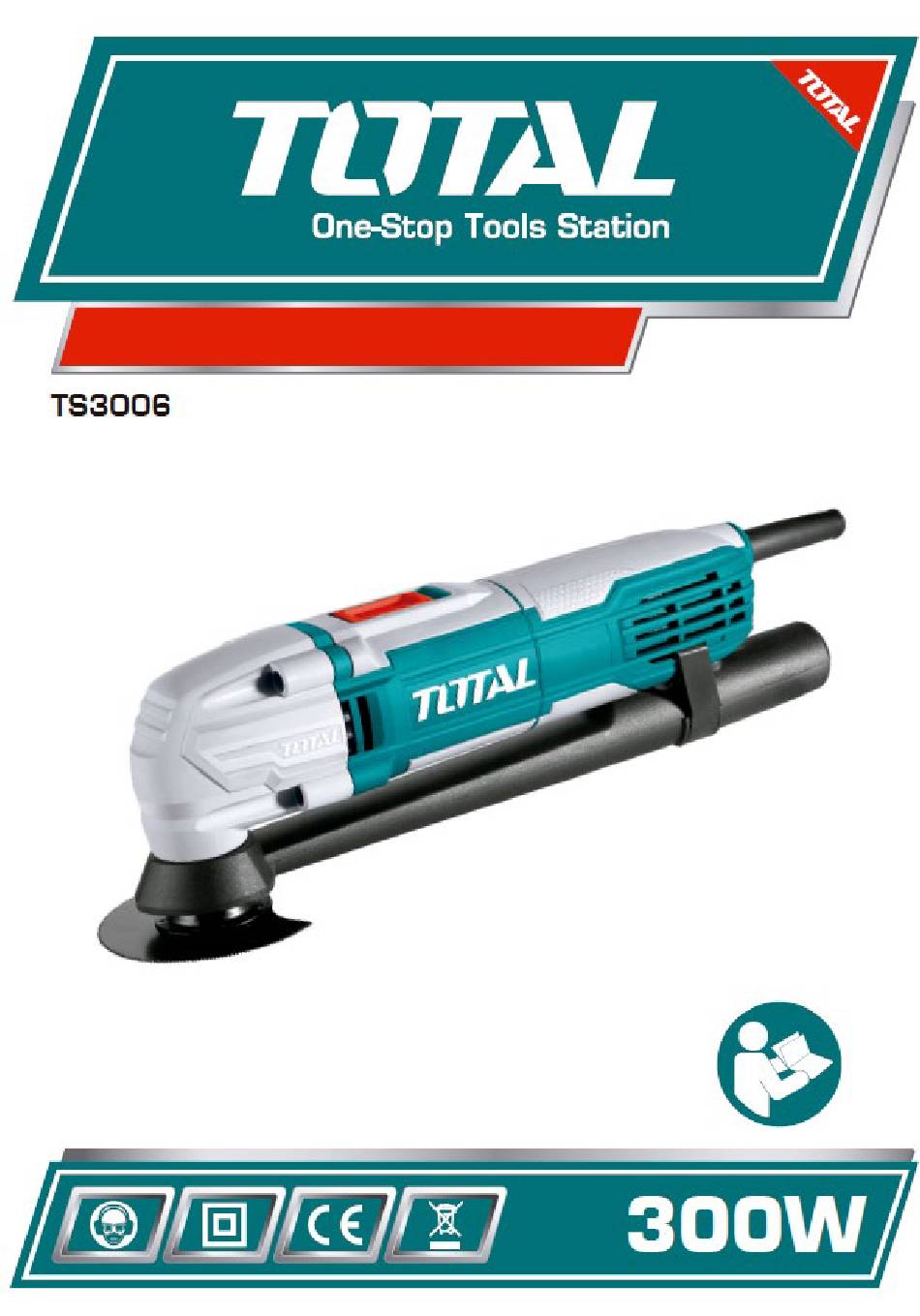

- Page 1 MULTITOOL...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electrical shock, fire, and/or serious injury. Observe the relevant safety precautions when using the tool. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 d. Prevent the tool from turning on unintentionally. Make sure the switch is in the off position before connecting to power source and moving. e. Remove any adjusting wrenches or wrenches before turning on the power tool. An adjustable wrench or wrench placed in a rotating part of the power tool can cause serious injury.
-
Page 4: Additional Security Warnings
Safety rules for correct use Double insulation for additional protection Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. -
Page 5: Other Risks
When sanding, do not use sandpaper that is too large. When choosing the • abrasive disc, take into account the manufacturer's specifications. Sandpaper past the grinding block carries the risk of cuts and injuries and can also cause jamming. • Use the correct supply voltage: The power supply voltage must match the information on the nameplate of the tools. -
Page 6: Product Description
Product description A. gearbox F. Delta sanding B. Shift button G. Sandpaper C. Speed control knob H. Cutting blade D. Extraction bolt I. Circular saw blade E. Hex key J. Flexible Scraper Note 2: Not all accessories illustrated or described need to be included in the standard delivery. Set up Attention Before installing, repairing or maintaining the appliance, you must always turn off the... - Page 7 Mounting Accessory mounting 1. Turn the lever 2. Turn lever counterclockwise to lower draw bolt (D) in two circles. 3. Insert the sanding pad and make the pin fit into the holes on the sanding pad. 4. Insert the screw and fix the cover. 5.
-
Page 8: Maintenance And Troubleshooting
Maintenance and troubleshooting Maintenance • Make sure the tool is unplugged from power before performing any maintenance. Your power tool requires no additional lubrication or maintenance. Always store • your power tool in a dry place. If the power cord is damaged, it must be replaced by the manufacturer, its dealer, •... -
Page 9: Exploded View
Attention For your own safety, never remove parts or accessories from the power tool during operation. In case of breakdown or damage, have the power tool repaired only by a specialized workshop, the manufacturer or the official distributor. Environment Do not dispose of electrical appliances as unsorted municipal waste, use •... - Page 10 MULTITOOL...
