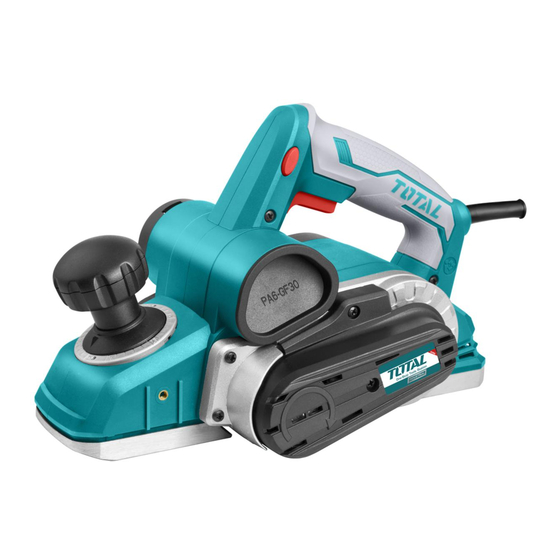

- Page 1 ELECTRIC WOOD BRUSH...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire, and / or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 4) Use and care of power tools a. Do not force the tool. Use the right power tool for each use. b. Do not use the power tool if its ignition switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 4: Additional Safety Warnings
Additional safety warnings • Wait for the cutter to stop before leaving the tool. An exposed rotary cutter can catch on the surface and cause possible loss of control and serious injury. Hold the power tool only by the insulated gripping surfaces, as the cutter may •... -
Page 5: Product Description
Product description 1. Lock button for on / off switch 9. V grooves 2. Chip ejector 10. Fixing bolt 3. Depth adjustment knob 11. Depth stop 4. Brush depth scale 12. Scale to reduce width 5. On / off switch 13. - Page 6 Mounting the blades Before reinserting new or sharpened blades, clean the drum, blades and, if • necessary, the blade retainer. Clean the blades with alcohol or oil. • Each brush blade must be assembled and aligned centered on the base plate. •...
- Page 7 Put the machine on the workpiece only when it is turned on. Otherwise, there is • a danger of kickback when the cutting tool gets stuck in the workpiece. Start the machine and guide the machine evenly over the surface to be planed. •...
-
Page 8: Maintenance And Troubleshooting
Depending on the bevel width required, use the corresponding V-groove. To do this, place the brush with the V-groove on the edge of the workpiece and guide it along the edge. Planning with parallel guide Mount the guide parallel to the machine using the fixing bolt. Depending on the •... -
Page 9: Exploded View
Environment • Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local authority for information on available collection systems. • If electrical appliances are disposed of in landfills, hazardous substances can • seep into groundwater and enter the food chain, damaging your health and well- being. - Page 10 ELECTRIC WOOD BRUSH...
