  • Page 1 JIG SAW...
  • Page 2: Security Instructions

    Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire, and / or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 3 4) Use and care of power tools a. Do not force the tool. Use the right power tool for each use. b. Do not use the power tool if its ignition switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  • Page 4: Other Risks

    Safety rules for correct use Double insulation for additional protection Read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice.
  • Page 5: Technical Data

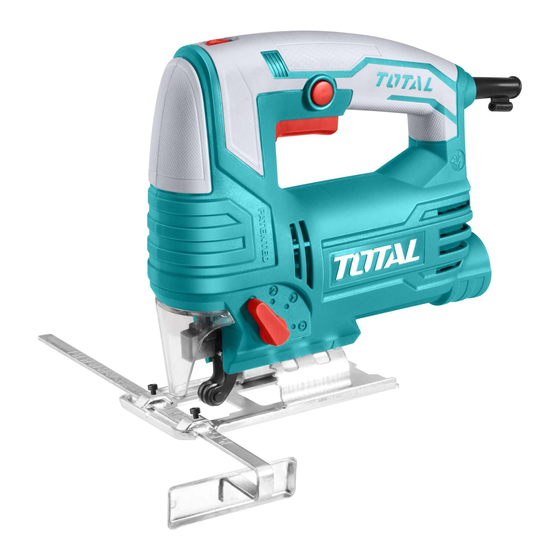

    Technical data Data sheet Voltage 220-240V ~ 50 / 60Hz Power 570W No-load speed 800-3000 / min Wood cutting capacity 65mm Steel cutting capacity Angular cut range 0 ± 45 ° 1 parallel guide 1 hex wrench It includes 1 set of carbon brushes 3 saw blades Product description 1.
  • Page 6 Set up Mounting Attaching the saw blade To change the saw blade, set the pendulum action switch to step "0". To open the saw holder: • Turn the ring counterclockwise (jig saw upside down) and hold it in position. Fully insert the saw blade into the slot in the saw holder with the teeth forward •...
  • Page 7 Start up Trigger Switch Operation To use the pendulum jigsaw: Press the trigger switch. If you want to use the pendulum jigsaw continuously, the • trigger lock button can be pressed after the trigger is pressed. Pendulum action switch setting The pendulum action of the saw blade, adjustable in four steps, makes possible the optimal adaptation of the advance of the saw or saw blade (cutting speed), the cutting performance and the cutting aspect of the material.
  • Page 8 Generally, the thinner and cleaner the cutting edge should be, the smaller the pitch of the selected pendulum should be or turn off the pendulum action. To work with thin materials such as sheet metal, turn off the pendulum action (step 0).
  • Page 9 Using the pendulum jigsaw Attention Before using the saw and connecting the power cord, make sure the trigger switch is in the off position. Press the trigger and wait until the blade has reached full speed. • • Place the face of the base plate on the workpiece and align the cut line with the line you want to cut.
  • Page 10 Then you can rotate the motherboard to the required angle 0-45 ° to the left or right. Note: The tilt angle numbers are stamped on the fan-shaped bracket on the back of the motherboard to help you set the correct angle. Check the support roller before tightening.
  • Page 11: Maintenance And Troubleshooting

    7. For an exact cut, fasten a piece of wood to the material as an aid or use the parallel guide. 8. For miter / bevel, place the base plate in the required position. 9. Place the motherboard in its rearmost position to cut near an edge. Maintenance and troubleshooting Maintenance Clean the jigsaw regularly (remove wood chips and chips, etc.).
  • Page 12: Exploded View

    Exploded view...
