Summary of Contents for Total TDRLI20601

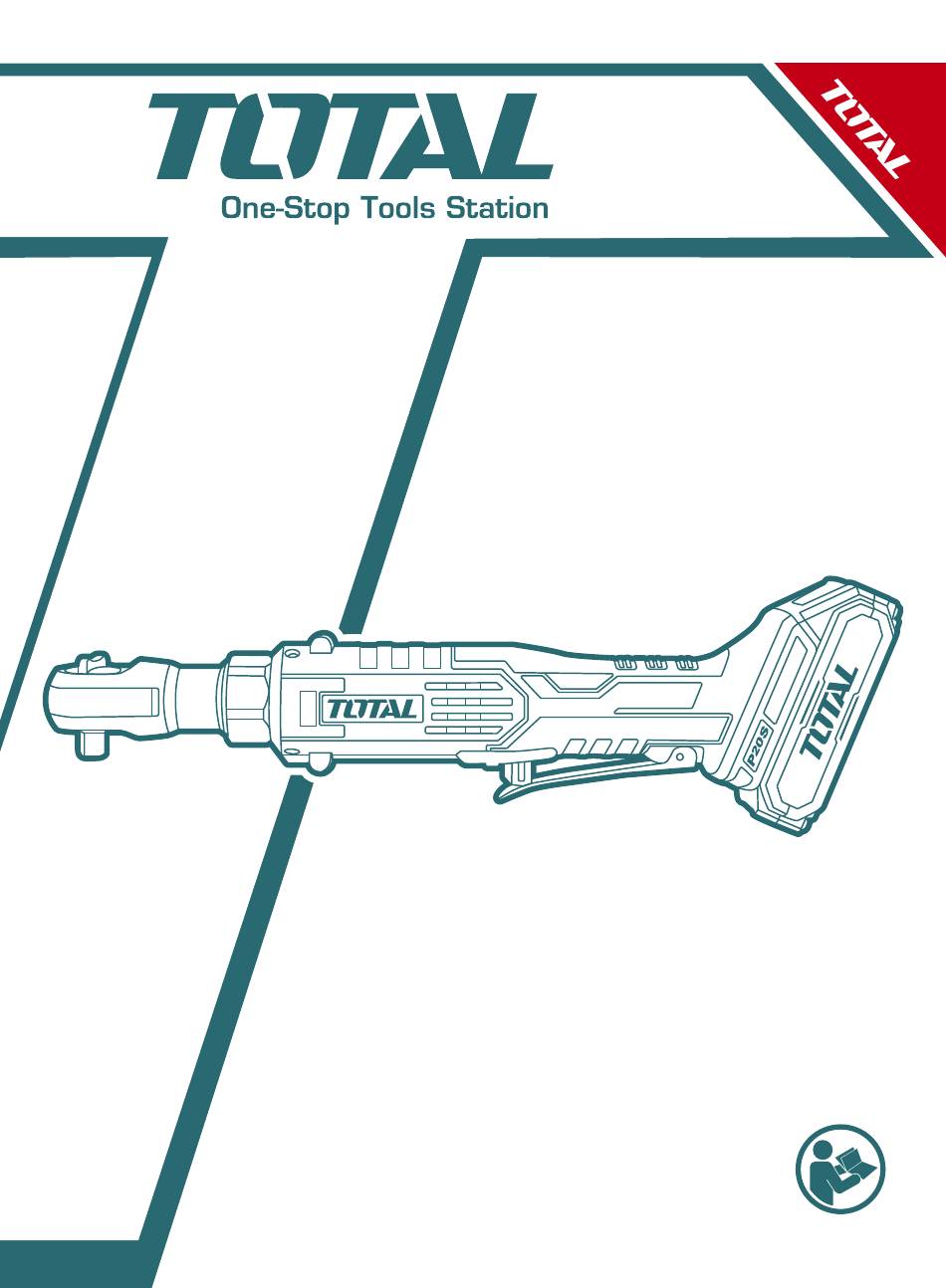

- Page 1 PRODUCT MANUAL LITHIUM-ION DRIVE RATCHET TDRLI20601 UTDRLI20601 TDRLI206015xy UTDRLI206015xy x(blank, 1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank, -1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
- Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 11: Technical Specifications
| English SPECIFICATIONS Technical specifications TDRLI20601 UTDRLI20601 Model No. TDRLI206015xy UTDRLI206015xy 9.53 mm (3/8˝ ) Square drive 0 - 250/min No load speed 65 Nm Maximum fastening torque 20 V Rated voltage Model No. Note: x (blank, 1,2,3,4,5,6,7,8,9,E,S,A,M); y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M) - Page 12 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity TFBLI2001 2.0Ah TFBLI2001xy TFBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah TFBLI2002xy TFBLI2053 5.0Ah TFBLI2053xy Model No.
- Page 13 | English OPERATION PICTURE...
-
Page 14: Function Description
| English FUNCTION DESCRIPTION ⚠ CAUTION Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge. ⚠ CAUTION Always switch off the tool before installing or removing of the battery cartridge. -
Page 15: Operation
| English When the lock lever is in the unlock position , the switch lever can be actuated. (see Figure C) Figure C: 1. Lock lever 2. Lock 3. Unlock Installing or removing socket (see Figure D) Figure D: 1. Socket 2. Socket adaptor To install the socket, push it onto the socket adaptor until it locks into place. - Page 16 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 17 TOTAL TOOLS WORLD MADE IN CHINA T0923.V02 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
