BRINKMANN Immersion Pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
BE1100 Operating Instructions
(Translation of original)
Edition
TB16...100
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE1100 ENGLISH
05/2024
1
10
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS TB16 Series
Summary of Contents for BRINKMANN PUMPS TB16 Series

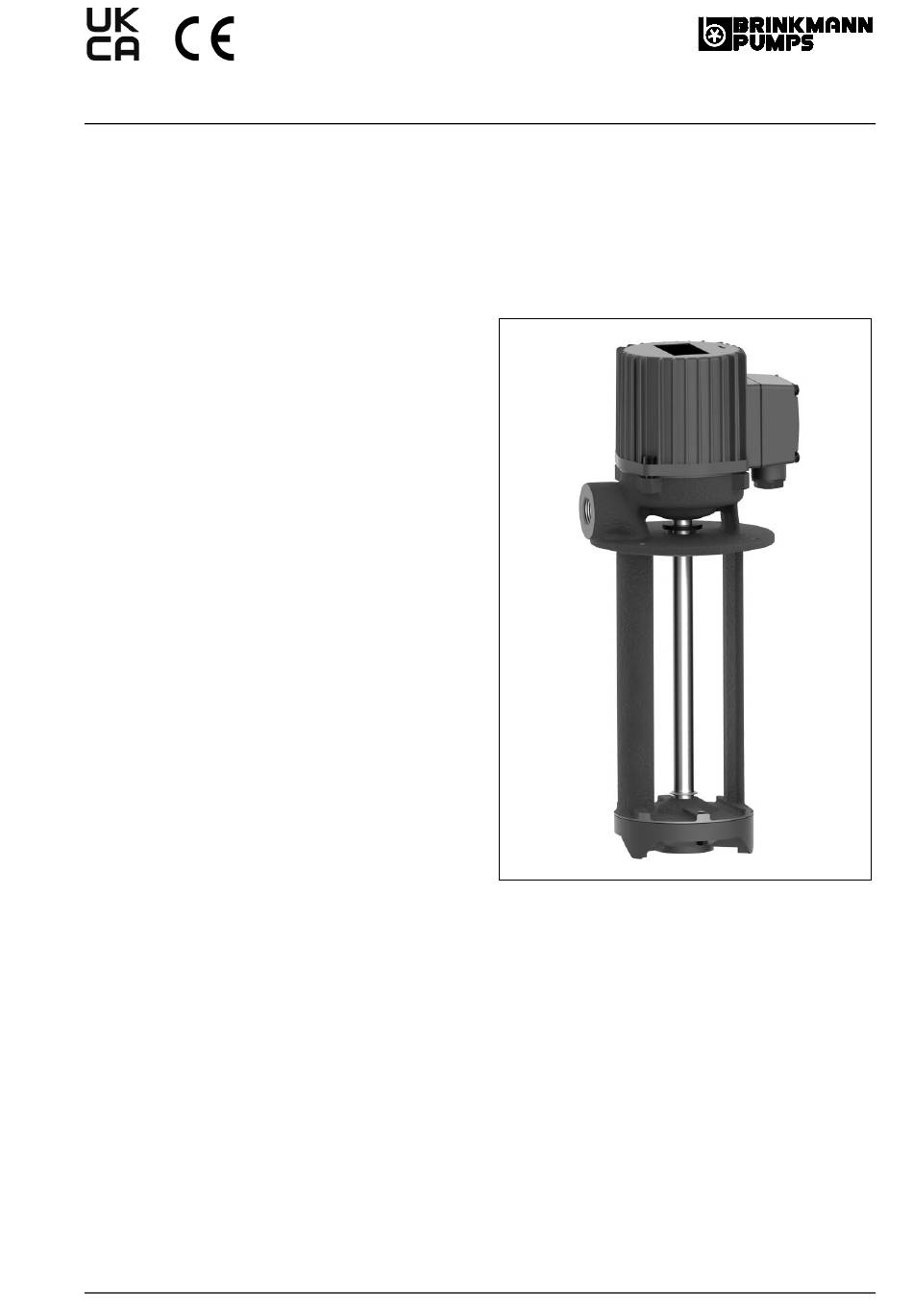

- Page 1 BE1100 Operating Instructions (Translation of original) BRINKMANN Immersion Pumps TB16…100 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No. : BE1100 ENGLISH ©...
-
Page 2: Table Of Contents
Brinkmann Immersions pumps of the series TB16 ... 100 Contents Indication to the manual ........2 8 Servicing and Maintenance ....... 6 9 Trouble shooter’s guide ........7 Description of product ........2-3 Safety instructions ..........4 10 Spare part ............8 Transport and storage ........ - Page 3 Technical data Max. del. Max. del. Height Pipe con- Depth of Weight Power Noise pressure bar / volume nection immersion level Type spec. weight 1 l/min H mm h mm dBA / 50 Hz TB16 0.32 G ½ 0.07 / 120 / 170 / 220 TB25...
-
Page 4: Safety Instructions
3 Safety instructions Safety instructions relevant for opera- When operating the pump, the safety instructions tion contained in this manual, the relevant national • If hot or cold machine components involve accident prevention regulations and any other hazards, they must be guarded against acci- service and safety instructions issued by the plant dental contact. -
Page 5: Installation And Connection
Electric wiring 5 Installation and Connection Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough ropes for example at all times. All service work must be carried out by quali- Pumps must be mounted securely. Piping, tank and fied service personnel. -
Page 6: Start Up / Shut Down
Wiring diagram e.g. Star connection 3 x 400 V, 50 Hz resp. 380-420 V, 50 Hz max. Delta connection liquid level 3 x 230 V, 50 Hz resp. 220-240 V, 50 Hz min. liquid level There may be no foreign objects such as dirt, particles or humidity inside the terminal board. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series TB16 ... 100 Item Description Stator with terminal board Pump body Inlet cover Impeller Terminal box Shaft with rotor Gasket Splash ring Socket head cap screw DIN 912 10 Hexagon head screw DIN 933... -
Page 9: Eclarations Of Conformity
Manufacturer Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Germany This declaration of conformity is issued under the sole responsibility of Brinkmann Pumps and belongs to the following product. Product name Immersion pumps TB16…100 Type The named product described above complies with the following statutory requirements of United Kingdom: UK SI 2008 No. - Page 10 12.2 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión...
