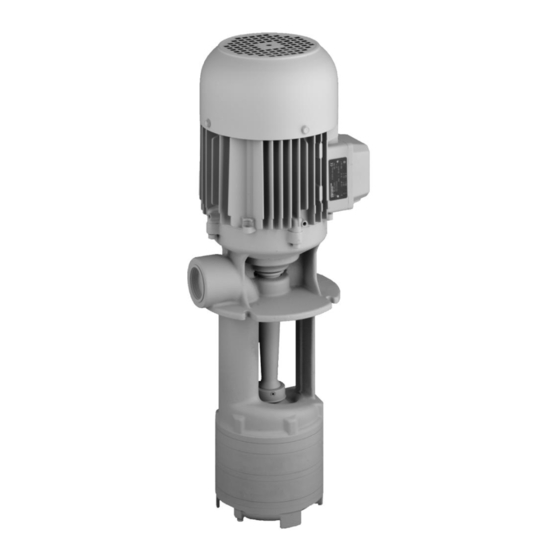

BE2502 Operating Instructions
(Translation of original)
Edition
TE/TL141...142
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE2502 ENGLISH
05/2024
1
10
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS TE141
Summary of Contents for BRINKMANN PUMPS TE141

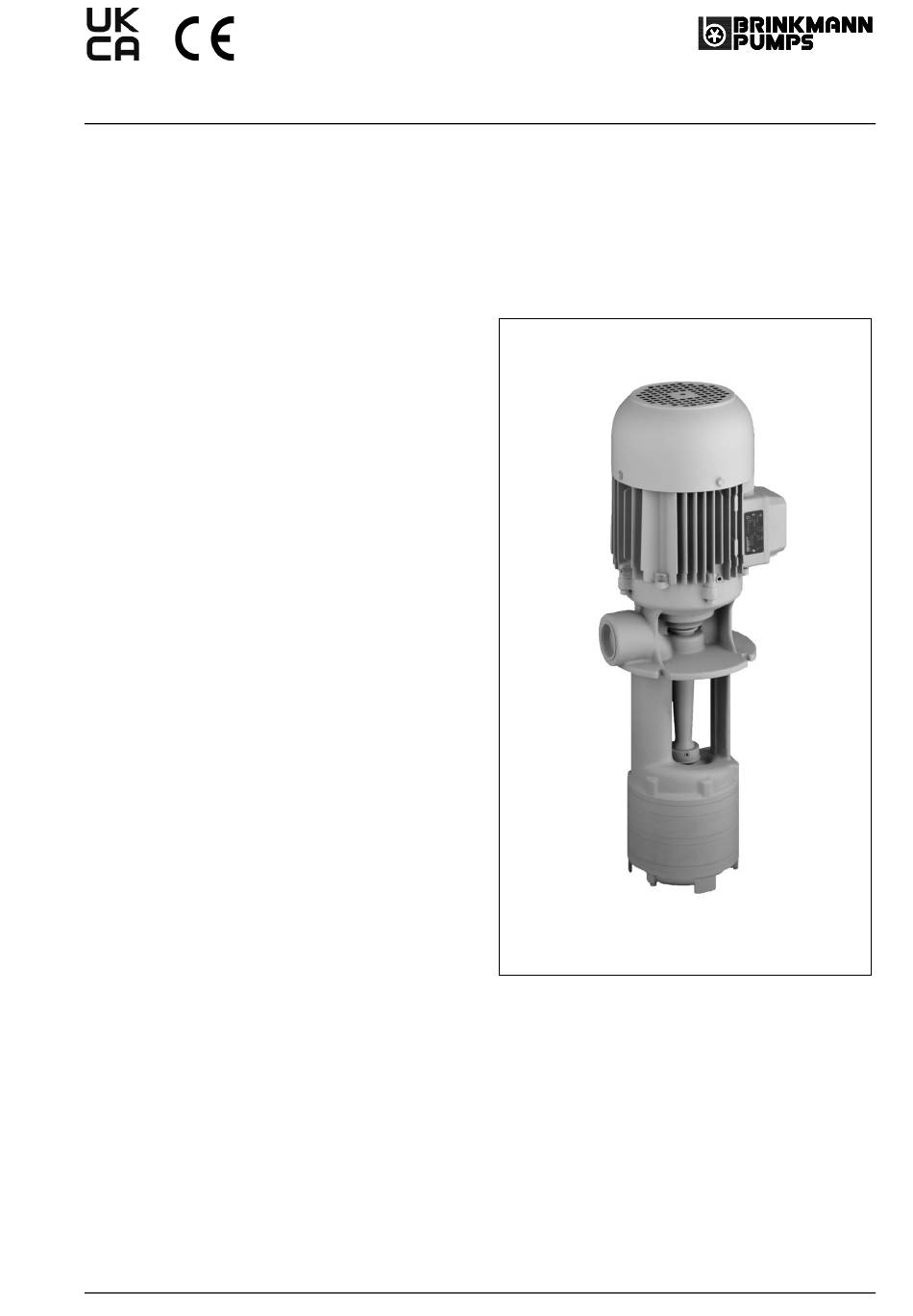

- Page 1 BE2502 Operating Instructions (Translation of original) BRINKMANN Immersion Pumps TE/TL141…142 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No. : BE2502 ENGLISH ©...
-
Page 2: Table Of Contents
It is always to be kept available at Limit of Application (Table 1) the installation site. Type TE141...142 TL141...142 Identification of safety instructions in the Mediums Cooling emulsions, cooling- and operating manual... - Page 3 / 50 Type Type weight 1 l/min H mm h mm g kg TL141 / 150 15.5 0.63 / 0.725 TE141 / 200 / 230 15.0 16.0 / 270 / 300 16.0 17.5 / 350 / 380 17.0 18.0 / 440 / 470 18.5...
-
Page 4: Safety Instructions
Safety instructions relevant for operation 3 Safety instructions • If hot or cold machine components involve When operating the pump, the safety instructions contained in this manual, the relevant national hazards, they must be guarded against acci- accident prevention regulations and any other dental contact. -
Page 5: Installation And Connection
Electric wiring 5 Installation and Connection Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough ropes for example at all times. All service work must be carried out by quali- Pumps must be mounted securely. Piping, tank and fied service personnel. -
Page 6: Start Up / Shut Down
Wiring diagram e.g. Star connection 3 x 400 V, 50 Hz resp. 380-415 V, 50 Hz Delta connection 3 x 230 V, 50 Hz resp. 220-240 V, 50 Hz There may be no foreign objects such as dirt, particles or humidity inside the terminal board. Mount terminal board cover to motor tight against dust and humidity and close up all unused wiring ports. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Part
58 Suction screw only for TL 59 Distance liner 60 Distance liner TE/TL142 62 Joint sleeve / Impeller in PPE TE141 depth of immersion up to 350mm 63 Joint bush / Impeller in PPE TE141 depth of immersion up to 350mm 62 Running sleeve... -
Page 9: Eclarations Of Conformity
Manufacturer Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Germany This declaration of conformity is issued under the sole responsibility of Brinkmann Pumps and belongs to the following product. Product name Immersion pumps TE/TL141…142 Type The named product described above complies with the following statutory requirements of United Kingdom: UK SI 2008 No. - Page 10 12.2 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión...
