BE1600

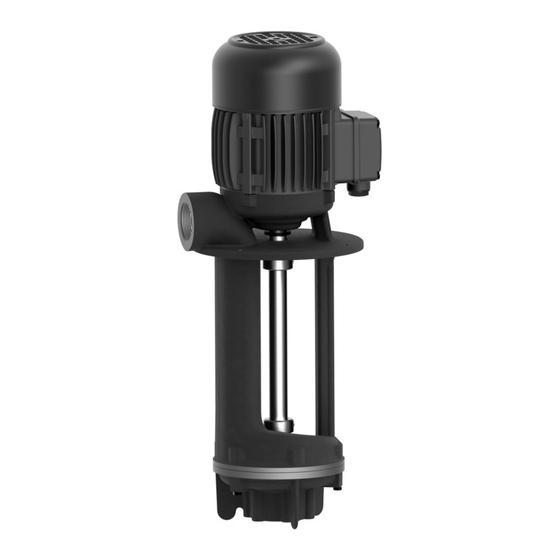

BRINKMANN Immersion Pumps
TAL200, 401, 601, TGL331, TGL501
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
09/2021
Edition
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE1600 ENGLISH
1
9
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS TAL200
Summary of Contents for BRINKMANN PUMPS TAL200
- Page 1 BE1600 Operating Instructions (Translation of original) BRINKMANN Immersion Pumps TAL200, 401, 601, TGL331, TGL501 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice.
-
Page 2: Table Of Contents
Brinkmann Immersions pumps of the series TAL200, 401, 601 TGL331, TGL501 Contents Indication to the manual ........2 8 Servicing and Maintenance ....... 7 9 Trouble shooter’s guide ........7 Description of product ........2-3 Safety instructions ..........4 10 Spare part ............8 Transport and storage ........ - Page 3 Power pressure bar / volume connection immersion 50 / 60 Hz Type spec. weight 1 l/min H mm h mm TAL200 / 140 0.95 G 1 ¼ 14.0 0.48 / 0.55 / 220 14.5 / 290 15.5 / 370 16.5 / 460 17.5...
-
Page 4: Safety Instructions
• Guards for moving parts (e.g. coupling) must not 3 Safety instructions be removed from the machine while in opera- When operating the pump, the safety instructions contained in this manual, the relevant national tion. accident prevention regulations and any other •... -
Page 5: Installation And Connection
3 x 230 V, 50 Hz resp. 220-240 V, 50 Hz piping connections Type Pipe Connection Cast iron TAL200 G 1 ¼ 120 Nm TAL401, 601 G 1 ½ 150 Nm There may be no foreign objects such as dirt, TGL331, TGL501 particles or humidity inside the terminal board. -
Page 6: Start Up / Shut Down
6 Start up / Shut down 8 Servicing and Maintenance Start up ATTENTION ATTENTION The surface of the motor must be kept free of dirt. Switch off at the mains. The motor shaft is spinning in permanently greased After connection the electrical wires, close the ball bearings (with special grease and increased terminal box. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps TAL200, 401, 601, TGL331, 501 of the series Item Description Stator with terminal board End shield Terminal box Fan cover Ball bearing DIN 625 10 Ball bearing DIN 625... -
Page 9: Ec Declaration Of Conformity
Produktbezeichnung / Product name / Désignation du produit / Designación del producto Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión Typ / Type / Tipo TAL200, TAL401, TAL601, TGL331, TGL501 Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der EG-Mitgliedsstaaten überein: The named product conforms to the following Council Directives on approximation of laws of the EEC Member States: Le produit sus-mentionné...
