Meubilair MONTREAL 61491 Assembly Instructions Manual

Cupboard 2 door tall white
Hide thumbs

Advertisement

Quick Links

Download this manual

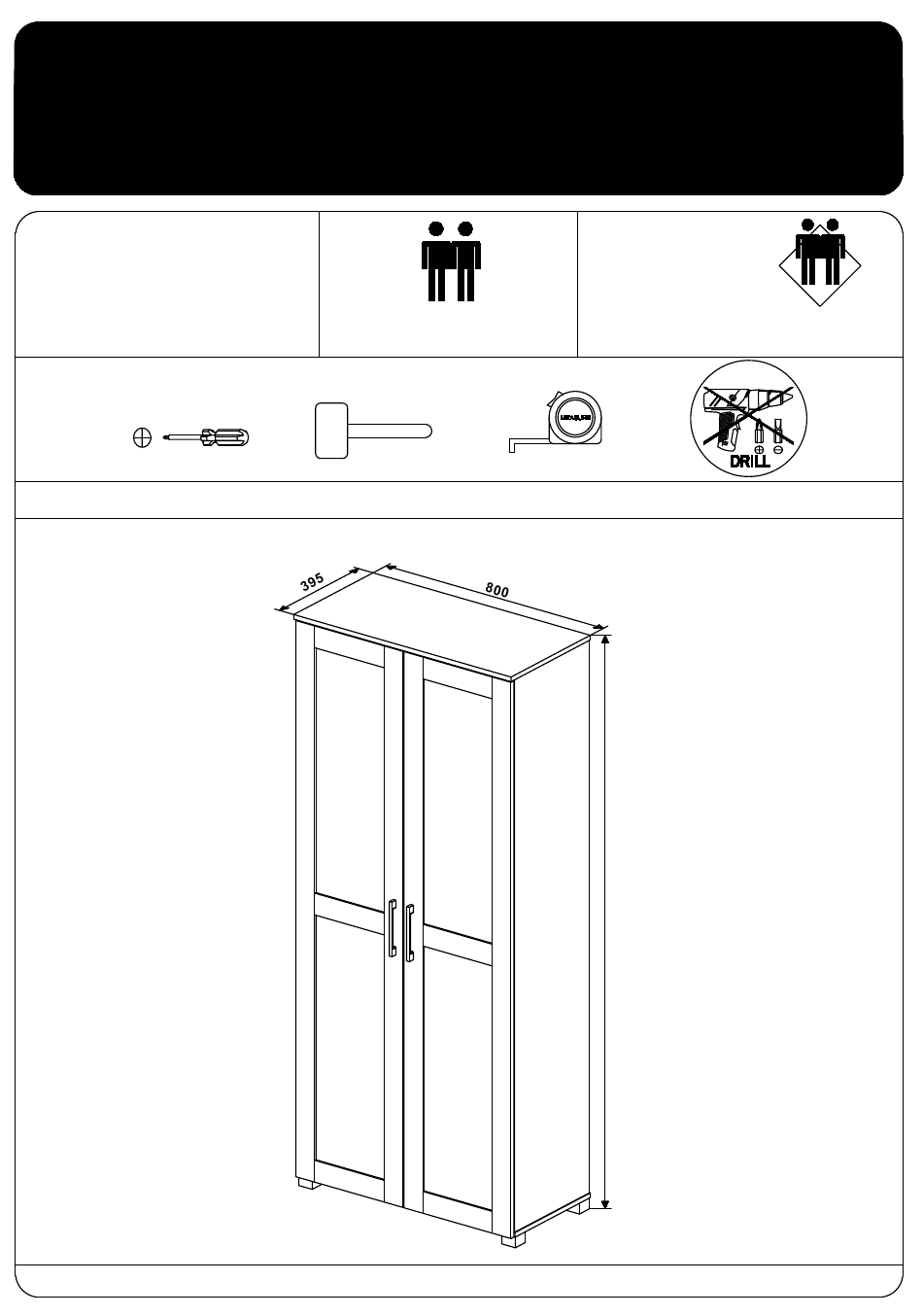

MONTREAL CUPBOARD 2 DOOR TALL WHITE
ITEM CODE : 61491
FLOOR AREA
2.0M X 2.0M
1.0 HR
2 PERSON
APPROXIMATE ASSEMBLY TIME
REQUIRED ASSEMBLY SPACE
ASSEMBLY
REQUIRED ASSEMBLY TOOLS
POZI SCREWDRIVER
HAMMER
MEASURING TAPE
ASSEMBLED DIMENSIONS
61491
1845
1/18
REV DATE : 31-5-2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the MONTREAL 61491 and is the answer not in the manual?

Questions and answers

Related Manuals for Meubilair MONTREAL 61491

Summary of Contents for Meubilair MONTREAL 61491

  • Page 1 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 FLOOR AREA 2.0M X 2.0M 1.0 HR 2 PERSON APPROXIMATE ASSEMBLY TIME REQUIRED ASSEMBLY SPACE ASSEMBLY REQUIRED ASSEMBLY TOOLS POZI SCREWDRIVER HAMMER MEASURING TAPE ASSEMBLED DIMENSIONS 61491 1845 1/18 REV DATE : 31-5-2024...
  • Page 2 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 Important : Please read these instructions carefully before use and keep for future reference. ● This product is intended for domestic use only and is not designed for commercial use. ●...
  • Page 3 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 Assembly Tips: 1. For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to assembly your product safely. 2. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
  • Page 4 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 Tips before you start: QUICKFIT Shoulder Tighten quickfit until shoulder is flush with panel. do not overtighten or unde tighten. CAM LOCK CORRECT WRONG When fittimg cam lock , ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the center of the cam lock when the two panels are joined.

  • Page 5: Part List

    MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 PART LIST: (10) (10) (11) PART NAME PART NAME SIDE PANEL (LEFT) DOOR PANEL SIDE PANEL (RIGHT) BACK PANEL TOP PANEL FRONT PANEL (TOP) BOTTOM PANEL BACK PANEL (TOP & MIDDLE) FIXED SHELF PANEL BACK PANEL (DOWN) ADJUSTABLE SHELF PANEL...
  • Page 6 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 HARDAWRE LIST SCREW COVER DOWEL Ø6 x 25mm SHELF SUPPORRT C/B SCREW M4 x 45mm PVC SQ.LEG C/B SCREW M3.5 x 16mm PVC HANDLE C/B SCREW M4 x 28mm C/B SCREW M3.5 x 20mm NAIL L-BRACKET HINGE (5/8") W/SPRING...
  • Page 7 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 1 Insert the Dowel (B) into the designated hole as shown.Panels (1,2) using a phillips head screw driver CAM BOLT (O) as shown. (10) = 2 PCS (11) B x22 O x6 7/18...
  • Page 8 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 2 As shown in diagram, remove the foot cover to expose the screw holes so that you can position the STEP 1 holes correctly over the guide holes on Panel 4 as shown. Once in position tighten the screws and replace the foot cover by pressing firmly onto the casing, ensure they are well secured.
  • Page 9 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 4 Fix the positioning pins of panel (5, 9, 10), and (11) to the designated holes of panel (2) , as shown in the figure. Next, use screw (D) to secure Panel (5) and close the screw cover (A) to complete this step. Later, put the CAM nut (N) into the panel 10, 11,180 °...
  • Page 10 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 6 Align the base panel (4) with the holes on (1)(2)(11) and secure using screws (D)&(P) as shown. TIP : Please make sure you attach the base of the unit TOP / REAR EDGE correctly so that unit is assembled the right way.
  • Page 11 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 8 Place the back panel onto the cabinet and ensure the cut outs for the wall brackets are facing to the top, and that the laminated side of the panel is facing inwards. Mark the location of the nails (K) with a pencil then carefully secure nails with a hammer. TIP : Ensure the raw, unlaminated side of the backing board is facing outwards.
  • Page 12 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 9 TO FIX THE DOOR To attach your doors to the cabinet, align the door panel and hinge with the screw guide holes on the side panels. A 2nd person must help during this step.
  • Page 13 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 10 TO FIX THE DOOR To attach your doors to the cabinet, align the door panel and hinge with the screw guide holes on the side panels. A 2nd person must help during this step.
  • Page 14 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 HOW TO ADJUST YOUR HINGES AND ALIGN THE DOORS Follow the adjustments and make sure the middle pin is correctly installed as per previous instructions. If the middle pin isn't correctly installed then this adjustment will not work correctly. If you tighten/loosen this screw it will adjust the doors to the left/right.
  • Page 15 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 15/18...
  • Page 16 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 12 Insert the shelf supports (C) into the holes provided at your preferred shelf height.Ensure the shelf is firmly secured and correctly in position. INSET SHELVES STEP 1 Attach the door STEP 2 handles (G) to door panels using screws...
  • Page 17 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 STEP 13 Secure the L-Bracket (L) to the bottom of the panel No.3 with screws (M) as shown.If your hinges have been adjusted and you're happy with the door positions attach"J" screw into the hinge plate as shown. IMPORTANT : Weight capacity per shelf is 6 kg distributed evenly across the shelf...
  • Page 18 MONTREAL CUPBOARD 2 DOOR TALL WHITE ITEM CODE : 61491 ASSEMBLY IS COMPLETE WARNING wall Serous or fatal crushing can occur from furnlture tip over, To help prevent tlp over : • Install all tip over restraints provlded with your product. •...

  • Page 19: After Sales Support

    You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, Meubilair Direct Imports will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase.
  • Page 20 In the event of a product fault, please email the Customer Service team. Please ensure that you include the product details (as shown on the card) at hand so that we are able to respond as quickly and efficiently as possible. MEUBILAIR DIRECT IMPORTS PTY LTD Customer Service Email: cs@meubilair.com.au...
